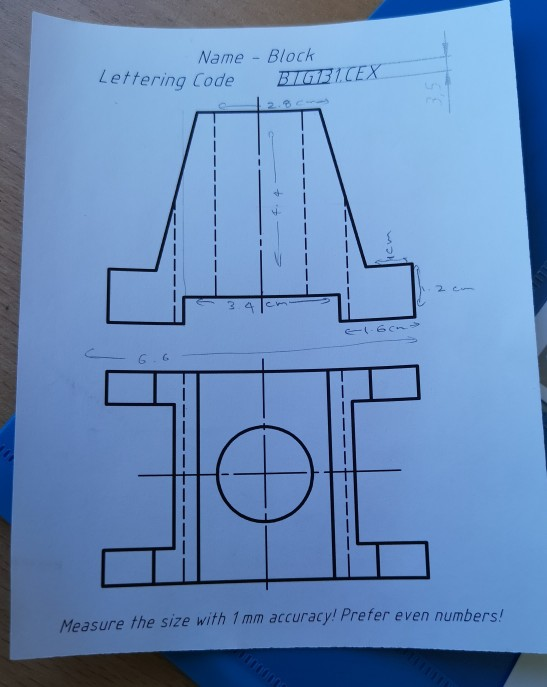

Name Block Lettering Code BIGCEX Measure the size with 1 mm accuracy! Prefer even numbers!

Help me to do this

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

-This is a measurement exercise.

- The least count is 1 mm , so you can use an ordinary ruler (15 cm or 30 cm ruler with millimeters mark) to measure this.

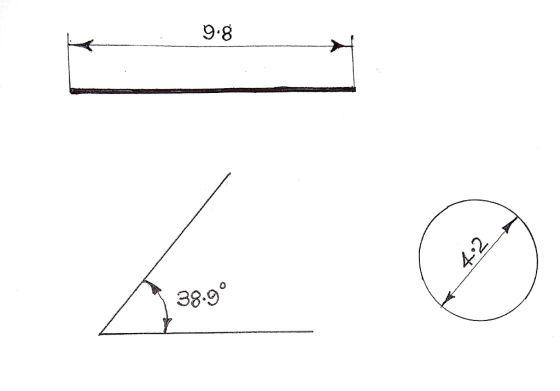

- Measure each side of the figure using the scale to 1 mm accuracy,. measure angles and diameter of circles. Represent line dimensions, angles and diameter as shown below.

9.8 38.9

Things to be noted while writing dimensions:-

-Follow the sizing of numbers instructed in your class.

-Donot write over other lines in the diagram.

If a line ends between two adjacent millimeters line whileeasiring take the even number reading.ie, if a line have a length between 1.4 cm and 1.5 cm take 1.4cm.

At the right bottom corner write" All dimensions are in centimeters" in specified lettering instructed in the class.
