Hello, I'm taking Digital logic design and have been stuck on this can I get the solution for this?

how I am going to create the circuit?
what I'm looking for is to do it with Shift Registers. is it possible?

Design a digital systems that forces 8 LEDs to blink one after another in the following order: 1 by 1, then 2 by 2, then 3 by 3, until they finally all of them light up and then go off at once before repeating the earlier blinking sequence.

I just need to create the circuit whether it was by hand or anything. we use the program Multisim though.

Here is the same problem but with 4 LEDs instead. Could not figure out anything out of it though.

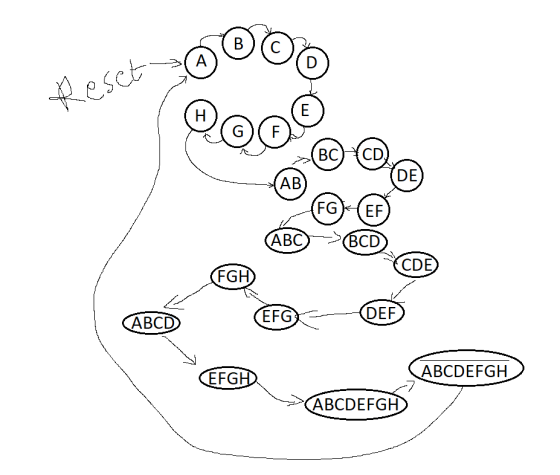

here is a state diagram that i created:

this is basically what I could thought of.

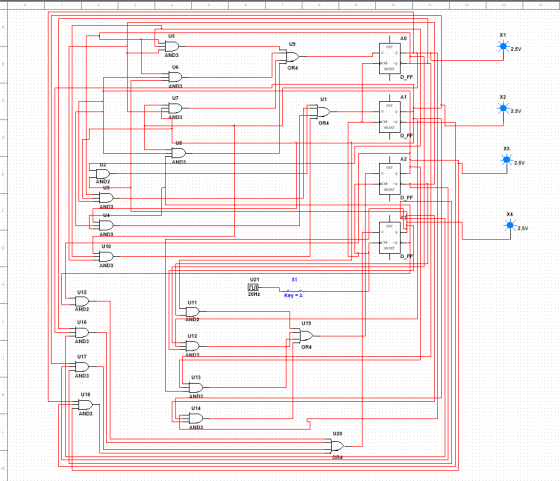

x1 US A0 US 2.5V AND3 UC D FF A1 X2 U7 2.5V OR4 X3 A2 AND2 D FF X4 2.5V U10 U21 U15 20Hz KeyA U11 AND2 U16 U15 U12 AND3 OR4 U17 U13 U18 U14 AND3 U20 DE AB CDE FGH ABCD DEF EFG Aisc:11) ABCDEFGH ABCDEFGH

Answer 1

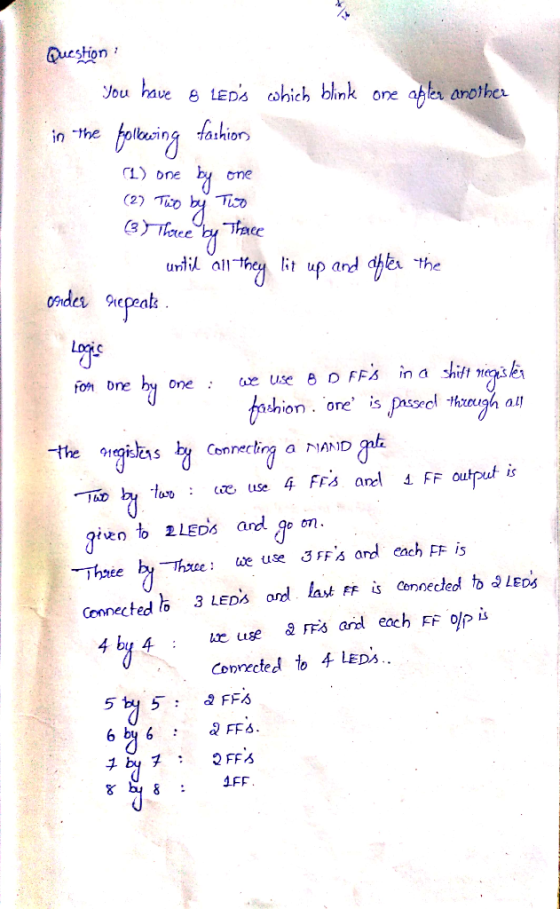

Question ou have 6 LEDs ohich blink one apla another in the holesing Vashior, rl) one by one (2) Tco by fidet nepeats fom one by onee use e o FFs in a shift ez ion. ore' is Ta byae use 4 Frs anel 4 FF output is ien tLEDs and ge on. Thaie by The useFFs and ech FF is 3 LEDs ord last FF is connected too LEDs Connected Connected to 4 LEDA FF. 6 by 6 :

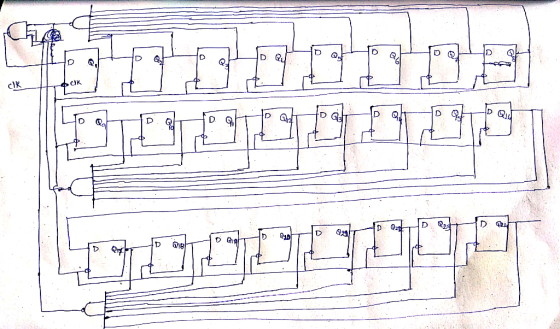

D Q clK D Q D Q rt.

순 o 2-4, @p々,6 LS LED LED LE D LEP3 ED2 020 4I6 は
