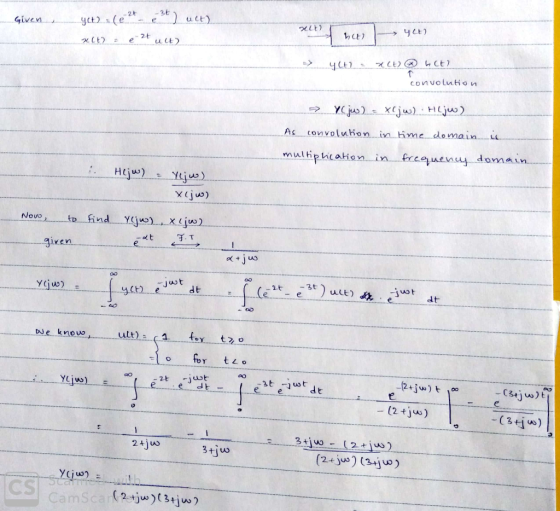

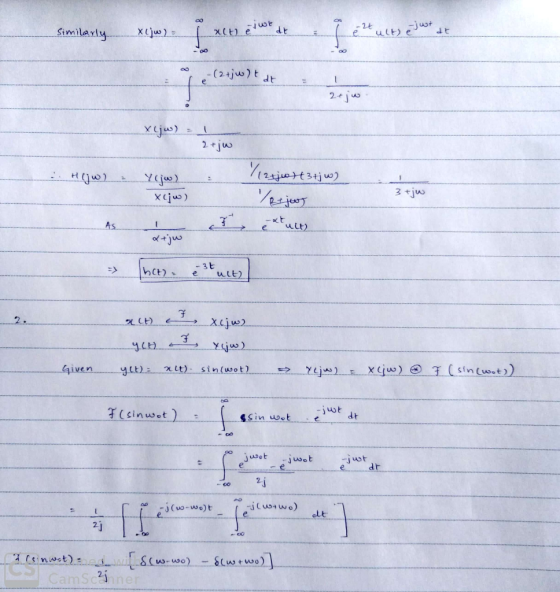

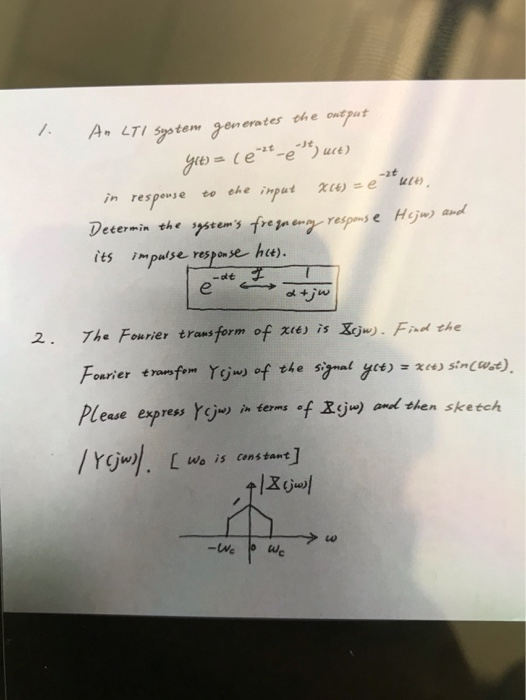

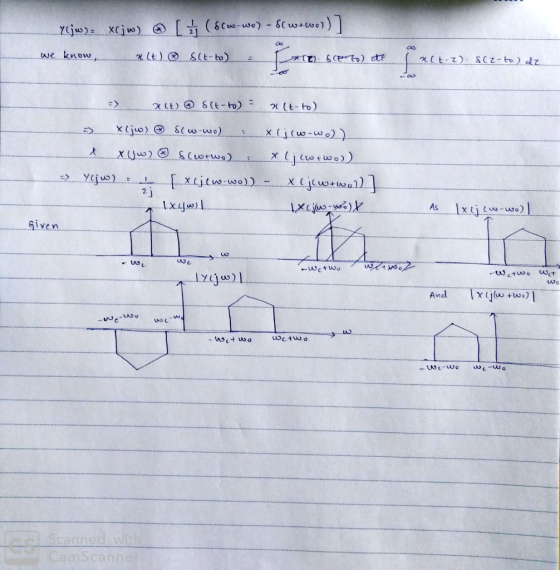

A. L7/ ytgememtes the atpot erates the ontput LTI System in respene and ㄒㄧㄧㄒㄧ The Fourier transform of 지t) is...
Given LTI system with following input response (can use properties of the Fourier transform like, sinc(x)...
Given LTI system with following input response (can use properties of the Fourier transform like, sinc(x) = sin(πx)/πx ): h(t) = 8/π sinc(8t/π) where input x(t) of the LTI system is the following continuous-time signal x(t) = cos(t) cos(8t) a) find the Fourier transform of x(t) b) find the Fourier transform of h(t) c) Is this LTI system BIBO stable? Prove d) find the output y(t) of the LTI system
Given LTI system with following input response (can use properties of the Fourier transform like, sinc(x)...
Given LTI system with following input response (can use properties of the Fourier transform like, sinc(x) = sin(πx)/πx ): h(t) = 8/π sinc(8t/π) where input x(t) of the LTI system is the following continuous-time signal x(t) = cos(t) cos(8t) find the Fourier transform of h(t). Is this LTI system BIBO stable? Find output y(t)
This is a fourier series/ transform question Consider an LTI system whose response to the input...
This is a fourier series/ transform question
Consider an LTI system whose response to the input x)lee3ut) is y)12e-2e4Ju) (a) Find the frequency response of this system. (b) Determine the system's impulse response (c) Find the differential equation relating the input and the output of this system.
2 part a and b , 3 part a and b 7 marks 2. Consider the Fourier transform pair a) Use the appropriate Fourier transform properties to find the Fourier transform of te-lti 5 marks) b) Use the r...
2 part a and b , 3 part a and b
7 marks 2. Consider the Fourier transform pair a) Use the appropriate Fourier transform properties to find the Fourier transform of te-lti 5 marks) b) Use the results from part (a) and the duality property to determine the Fourier transform of 4t f(t) = (1 +t2)2 [15 marks 3. For the discrete time system shown in fig. 1 a) Determine the transfer function Hint: The best starting point is...
A cascaded system that consists of an LTI system and a delay system is shown in...
A cascaded system that consists of an LTI system and a delay system is shown in Figure Q4(b). The input signal X(t) and impulse response of the LTI system, h(t) are given as the following: x(t) = 6-2&u(t) h(t) = e-fu(t) Determine: The Fourier transform of y(t). (3 marks) The Fourier transform of z(t). (3 marks) A basic modulator circuit is shown in Figure Q4(c). Modulation is a multiplication between input signal, m(t), and a carrier signal, c(t). The process...
5. (12 points) Consider a continuous-time LTI system whose frequency response is sin(w) H(ju) 4w If...
5. (12 points) Consider a continuous-time LTI system whose frequency response is sin(w) H(ju) 4w If the input to this system is a periodic signal 0, -4<t<-1 x(t)=1, -1st<1 0, 1st<4 with period T= 8 (a) (2 points) sketch r(t) for -4ts4 (b) (5 points) determine the Fourier series coefficients at of x(t), (c) (5 points) determine the Fourier series coefficients be of the corresponding system output y(t)
5. (12 points) Consider a continuous-time LTI system whose frequency response is...
6- A contiuous-time periodic signal x(t) is given graphically below. (a) Determine the exponential Fourier coefficients...
6- A contiuous-time periodic signal x(t) is given graphically below. (a) Determine the exponential Fourier coefficients for k+oo a ()-ΣGeko, k-oo where c is given by T/2 1 (t)ek dt J-T/2 Ck= T (b) r(t) is applied as an input to an LTI system whose frequency response is H(ju)=2 sin(w Determine the corresponding output y(t) (e) Sketch y(t). Be sure to mark the axes properly -JT
6- A contiuous-time periodic signal x(t) is given graphically below. (a) Determine the exponential...
2) (Fourier Transforms Using Properties) - Given that the Fourier Transform of x(t) e Find the Fourier Transform of the following signals (using properties of the Fourier Transform). Sketch each sign...
2) (Fourier Transforms Using Properties) - Given that the Fourier Transform of x(t) e Find the Fourier Transform of the following signals (using properties of the Fourier Transform). Sketch each signal, and sketch its Fourier Transform magnitude and phase spectra, in addition to finding and expression for X(f): (a) x(t) = e-21,-I ! (b) x(t)-t e 21 1 (c) x(t)-sinc(rt ) * sinc(2π1) (convolution) [NOTE: X(f) is noLI i (1 + ㎡fy for part (c)]
2) (Fourier Transforms Using Properties)...
Q1) Consider an LTI system with frequency response (u) given by (a) Find the impulse response h(0) for this system. [Hint: In case of polynomial over pohnomial frequency domain representation, we...
Q1) Consider an LTI system with frequency response (u) given by (a) Find the impulse response h(0) for this system. [Hint: In case of polynomial over pohnomial frequency domain representation, we analyce the denominator and use partial fraction expansion to write H() in the form Then we notice that each of these fraction terms is the Fourier of an exponentiol multiplied by a unit step as per the Table J (b) What is the output y(t) from the system if...
5. Fourier Transform and System Response (12 pts) A signal æ(t) = (e-t-e-3t)u(t) is input to...
5. Fourier Transform and System Response (12 pts) A signal æ(t) = (e-t-e-3t)u(t) is input to an LTI system T with impulse response h(t) and the output has frequency content Y(jw) = 3;w – 4w2 - jw3 (a) (10 pts) Find the Fourier transform H(jw) = F{h(t)}, i.e., the frequency response of the system. (b) (2 pts) What operation does the system T perform on the input signal x(t)?
This is a fourier series/ transform question
Consider an LTI system whose response to the input x)lee3ut) is y)12e-2e4Ju) (a) Find the frequency response of this system. (b) Determine the system's impulse response (c) Find the differential equation relating the input and the output of this system.
2 part a and b , 3 part a and b
7 marks 2. Consider the Fourier transform pair a) Use the appropriate Fourier transform properties to find the Fourier transform of te-lti 5 marks) b) Use the results from part (a) and the duality property to determine the Fourier transform of 4t f(t) = (1 +t2)2 [15 marks 3. For the discrete time system shown in fig. 1 a) Determine the transfer function Hint: The best starting point is...
A cascaded system that consists of an LTI system and a delay system is shown in Figure Q4(b). The input signal X(t) and impulse response of the LTI system, h(t) are given as the following: x(t) = 6-2&u(t) h(t) = e-fu(t) Determine: The Fourier transform of y(t). (3 marks) The Fourier transform of z(t). (3 marks) A basic modulator circuit is shown in Figure Q4(c). Modulation is a multiplication between input signal, m(t), and a carrier signal, c(t). The process...
5. (12 points) Consider a continuous-time LTI system whose frequency response is sin(w) H(ju) 4w If the input to this system is a periodic signal 0, -4<t<-1 x(t)=1, -1st<1 0, 1st<4 with period T= 8 (a) (2 points) sketch r(t) for -4ts4 (b) (5 points) determine the Fourier series coefficients at of x(t), (c) (5 points) determine the Fourier series coefficients be of the corresponding system output y(t)
5. (12 points) Consider a continuous-time LTI system whose frequency response is...
6- A contiuous-time periodic signal x(t) is given graphically below. (a) Determine the exponential Fourier coefficients for k+oo a ()-ΣGeko, k-oo where c is given by T/2 1 (t)ek dt J-T/2 Ck= T (b) r(t) is applied as an input to an LTI system whose frequency response is H(ju)=2 sin(w Determine the corresponding output y(t) (e) Sketch y(t). Be sure to mark the axes properly -JT
6- A contiuous-time periodic signal x(t) is given graphically below. (a) Determine the exponential...
2) (Fourier Transforms Using Properties) - Given that the Fourier Transform of x(t) e Find the Fourier Transform of the following signals (using properties of the Fourier Transform). Sketch each signal, and sketch its Fourier Transform magnitude and phase spectra, in addition to finding and expression for X(f): (a) x(t) = e-21,-I ! (b) x(t)-t e 21 1 (c) x(t)-sinc(rt ) * sinc(2π1) (convolution) [NOTE: X(f) is noLI i (1 + ㎡fy for part (c)]
2) (Fourier Transforms Using Properties)...
Q1) Consider an LTI system with frequency response (u) given by (a) Find the impulse response h(0) for this system. [Hint: In case of polynomial over pohnomial frequency domain representation, we analyce the denominator and use partial fraction expansion to write H() in the form Then we notice that each of these fraction terms is the Fourier of an exponentiol multiplied by a unit step as per the Table J (b) What is the output y(t) from the system if...
5. Fourier Transform and System Response (12 pts) A signal æ(t) = (e-t-e-3t)u(t) is input to an LTI system T with impulse response h(t) and the output has frequency content Y(jw) = 3;w – 4w2 - jw3 (a) (10 pts) Find the Fourier transform H(jw) = F{h(t)}, i.e., the frequency response of the system. (b) (2 pts) What operation does the system T perform on the input signal x(t)?
