Homework Answers

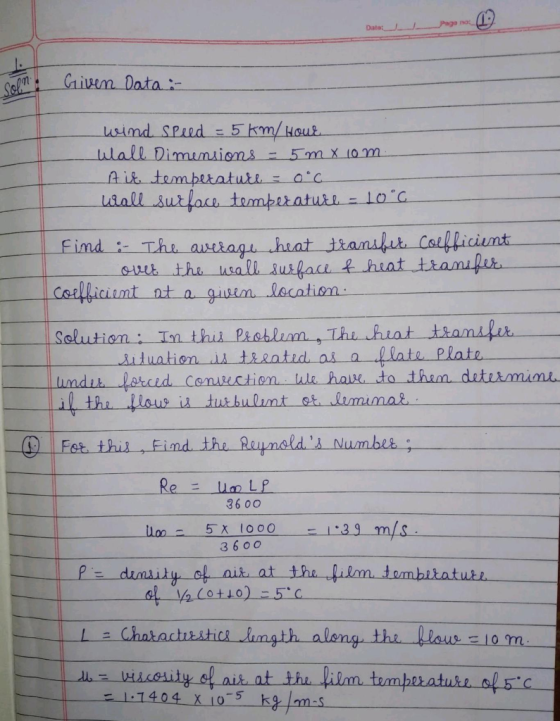

BRIEF: In this problem we know the speed of the wing that is blowing over a building wall and building wall dImensions.we need to find the average heat transfer cofficient over the wall surface and heat transfer cofficient at a given location.

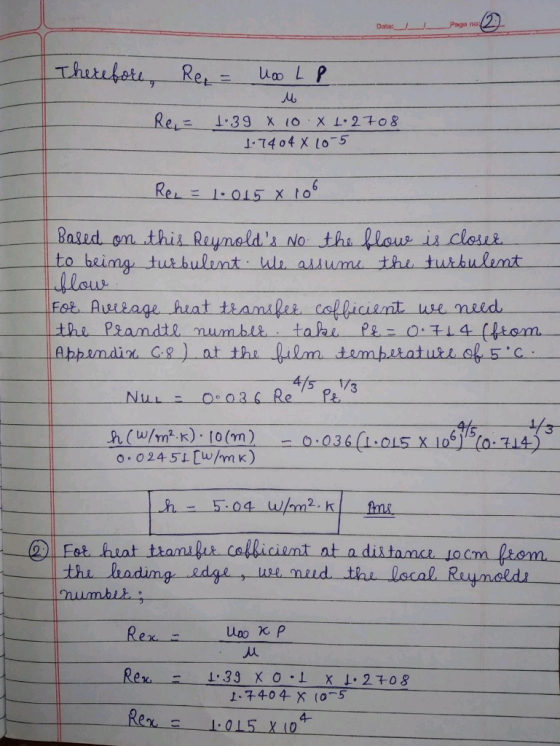

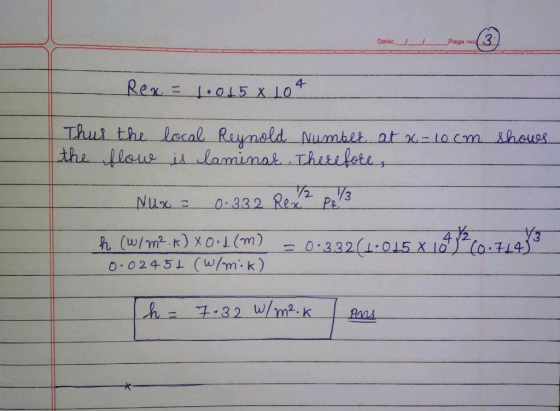

ANSWER:
Add Answer to:
Wind is blowing at 5 km/h over a building wall of size 5 mx10 m. Air temperature is 0°C and wall 1) surface is at 1...
