Using the lineraized Poisson-Boltzmann equation, calculate the positive and negative charge concentrations, C+(x) and C-...

Using the lineraized Poisson-Boltzmann equation, calculate the positive and negative charge concentrations, C+(x) and C-(x), and the electric potential V(x), at a distance x from a charged plane in a salty solution. If the charge per unit area on the plane is sigma=e/a, derive a condition on the area a that makes the linear approximation valid. Assume a salt concentration of Cinfinity= 100mM

science   nursing
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

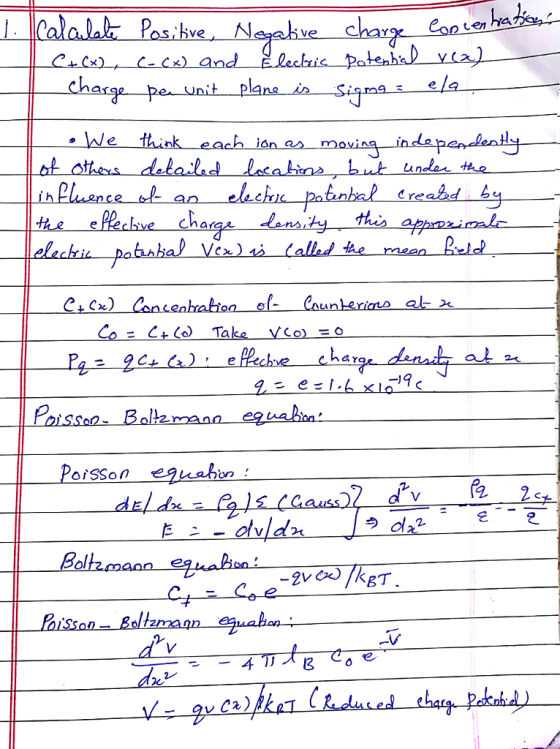

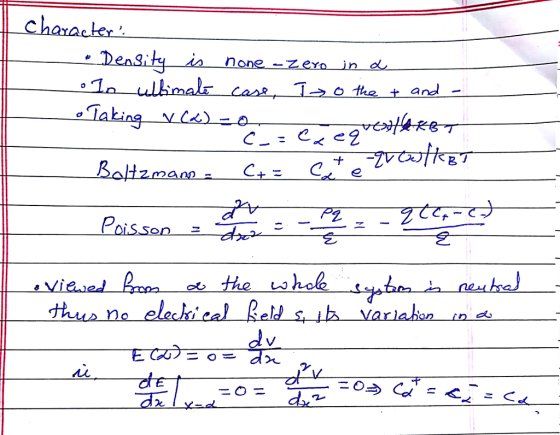

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Using the lineraized Poisson-Boltzmann equation, calculate the positive and negative charge concentrations, C+(x) and C-...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A molecule may be molded approximately as a positive charge q at x=a and a negative...

    A molecule may be molded approximately as a positive charge q at x=a and a negative charge at -q=-a. evaluate the electric field on the y-axis, and find the approximate expression that is valid at large distances(y>>a)

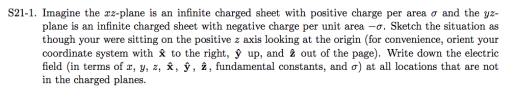

  • S21-1. Imagine the xz-plane is an infinite charged sheet with positive charge per area σ and...

    S21-1. Imagine the xz-plane is an infinite charged sheet with positive charge per area σ and the yz- plane is an infinite charged sheet with negative charge per unit area -a. Sketch the situation as though your were sitting on the positive z axis looking at the origin (for convenience, orient your coordinate system with Ỹ to the right, ỳ up, and ż out of the page). Write down the electric field (in terms of x, y, z, x, у,...

  • Positive charge Q is distributed uniformly along the z-axis from x = 0 to x = a.

    .1.Positive charge Q is distributed uniformly along the z-axis from x = 0 to x = a. A positive point charge q is located on he positive z-axis at a distance d to the right of the origin.(a) Calculate the electric potential produced by the charge distribution Q at x = d. (b) Develop an expression for the potential energy that would be added to the system by bringing a charge q from infinity to x = d. (c) Assuming the charges...

  • A negative charge q1 = -8.00 x 10-6 C is at the origin. A positive point...

    A negative charge q1 = -8.00 x 10-6 C is at the origin. A positive point charge q2 = 5.00 x 10-6 C is on the x axis at x = 0.4 m. Point P is on the -y axis at y = -0.3 m. What are the x and y components of the net electric field at point P due to q1 and q2 ? Be sure to idicate whether each component is positive or negative.

  • All Parts please!!! (a) Carefully sketch the electric field lines and equipotential lines of a positive...

    All Parts please!!! (a) Carefully sketch the electric field lines and equipotential lines of a positive charge at the original and a negative charge on the positive x-axis. The negative charge is three times the positive. You can use the PhET that I showed you in class a while ago to help you. (b) Mathematically determine all points in the x-y plane at which the potentia l is zero. (part (a) is a review problem) A thin uniformly charged disk...

  • JV 1. A positive charge qi is located at the point (0,0) and a negative charge...

    JV 1. A positive charge qi is located at the point (0,0) and a negative charge q2 at (a,0) At an arbitrary point (Oy) on the y-axis: (a) Find the magnitude of the electric field E1 due to charge qi and the magnitude of the electric field E2 due to charge q2 in terms of the given quantities q1, q2.y, and a. (b) Find the cos and sin of the angle θ that the vector E2 makes with the x-axis,...

  • c. Positive d. Negative QUESTION 3 A +1 C charge is placed at the origin. A-1...

    c. Positive d. Negative QUESTION 3 A +1 C charge is placed at the origin. A-1 C charge is placed at position (xv)-(1m, O). What is the electric potential energy of this charge configuration? 3.4.5x10^9) w b.-4.5x10^9) -9.9x1091 d. 2.25x10^9)

  • One positive charge and one negative charge, each of magnitude 4x10^-6 C, are located a distance...

    One positive charge and one negative charge, each of magnitude 4x10^-6 C, are located a distance of 0.1 m from each other. a) What’s the magnitude of force exerted on each charge? b) On a drawing, indicate the direction of the forces acting on each charge. c) Draw electric field lines between two charges.

  • A uniform electric field with a magnitude of 5500 N/C points in the positive x direction....

    A uniform electric field with a magnitude of 5500 N/C points in the positive x direction. Find the change in electric potential energy when a +11.5-μC charge is moved 6.50 cm in the positive x direction Find the change in electric potential energy when a +11.5-μC charge is moved 6.50 cm in the negative x direction. Find the change in electric potential energy when a +11.5-μC charge is moved 6.50 cm in the positive y direction.

  • 2. An electric field is oriented in the positive x direction and has a magnitude E-2x....

    2. An electric field is oriented in the positive x direction and has a magnitude E-2x. Find the potential at x = 10m if V = 24V at x = 3m. -14x -1Ho 3. Given two point charges located on the x axis, separated by a distance of 4m. The rightmost charge, located at x-2m, has a positive charge, q-8 and the leftmost charge, located at x-2m, has a negative charge,-q location(s) on the x axis where the electric potential...
