Add Answer to:

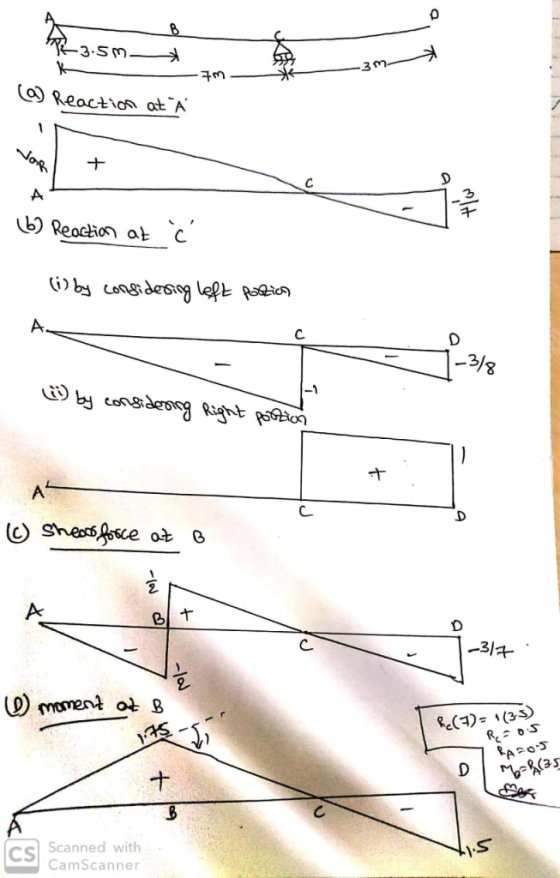

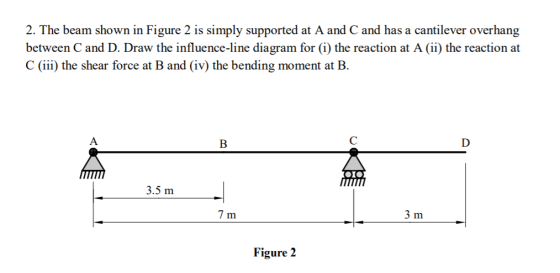

2. The beam shown in Figure 2 is simply supported at A and C and has a cantilever overhang between C and D. Draw the in...
A simply supported beam as shown in the figure. The beam section is W18x211. The beam...
A simply supported beam as shown in the figure. The beam section is W18x211. The beam must support its own weight and must carry the following loading: Super-imposed distributed dead load = 0.25 kip/ft Distributed live load = 1 kip/ft Concentrated dead load = 12 kip The beam span L = 26 ft and the distance of the concentrated load from the right support a=6 ft. Consider analy- sis of beam subjected to load combination 1.2 dead + 1.6 live....
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine t...
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine the bending moment and shear force at section C due to the loading as shown in the figure. 2. 3. There is a distributed live load (w#2.5kN/m) which can vary the location along the beam. Determine the location of the live loads which create the...
Draw the shear force and bending-moment diagrams for the simply supported beam shown. Label each diagram...
Draw the shear force and bending-moment diagrams for the simply
supported beam shown. Label each diagram with the corresponding
values
1. Draw the shear force and bending-moment diagrams for the simply supported beam shown. Label each diagram with the corresponding values. 3 Pe= 30 KN 4 m - m 3 m - C -40 kN - m
Simply supported beam is loaded as shown in figure. (a) Compute support reactions. (3) (b) Draw...
Simply supported beam is loaded as shown in figure. (a) Compute support reactions. (3) (b) Draw Shear Force Diagram (SFD) to the scale. (c) Locate the point where shear force is zero. Do not use properties of similar triangles. (3) (d) Compute bending moment at all important points including point where shear force is zero. (4) (e) Draw Bending Moment Diagram (BMD) to the scale. (4) (1) Show deflected shape of the beam. Indicate which part is sagging and which...
Q1. Draw the shear force and bending moment diagrams for the following cantilever beam
Q1. Draw the shear force and bending moment diagrams for the following cantilever beam (10 marks). Q2. Draw the shear force and bending moment diagrams for the following simply supported beam (10 marks). Q3. Draw the shear force and bending moment diagrams for the following simply supported beam with cantilever extension (15 marks). Q4. Draw the shear force and bending moment diagrams for the following compound beam (15 marks).
a simply supported beam abcd with arectangular cross sectioncarries the loading shown in figure. the...
a simply supported beam abcd with arectangular cross section
carries the loading shown in figure. the uniform beam has a mass of
33 kg per meter (m kg/m) and a cross section as shown in the
figure. you may take 10 m/s^2 as acceleration.Question A2 A simply supported beam ABCD with a rectangular cross-section carries the loading shown in Figure QA2. The uniform beam has a mass of m kg per meter of length (m kg/m) and a cross-section as shown...
Q2(c) Figure Q1(c) shows a simply supported beam ABCD loaded as shown. The beam is pin-supported...
Q2(c) Figure Q1(c) shows a simply supported beam ABCD loaded as shown. The beam is pin-supported at D, while point B is roller-supported. Determine the support reactions. b) For span BC (2<x< 4) write down the x-dependent equation for moment. x should be measured from cnd A. Plot the shear force diagram and the bending moment diagram for the beam. Show all important values of the diagrams. d) Plot the deflected shape of the beam. c) 50KN 40kN/m 25kNm 20kN/m...
A simply supported beam is subjected to a load applied as shown in the figure. Draw the shear for...
A simply supported beam is subjected to a load applied as shown in the figure. Draw the shear force diagram. Consider the section shown and determine (a) the largest shear stress in the section n-n, (b) the shear stress at point a and show this stress on an element. 15,15 30 15,15 20 I n 40 120 15m 0.8 m Dimensions in mm
A simply supported beam is subjected to a load applied as shown in the figure. Draw the...
The simply supported beam shown in Figure 1 is pin-supported at A and roller-supported at D....
The simply supported beam shown in Figure 1 is pin-supported at A and roller-supported at D. la) Replace the distributed loads in Figure 1 by an equivalent resultant force and locate its location with respect to A. {2 + 3 marks 1b) Calculate the reactions at supports A and D. {2 marks 1c) Calculate the shear force and bending moment at point C. {4 marks) 15 kN/m 6 kN/m D B q 3.0 m 3.0 m 3.0 m Figure 1
Figure 1 shows a simply supported beam with load P applied at point C and D....
Figure 1 shows a simply supported beam with load P applied at point C and D. If P = 40 kN, L= 3 m and a = 1 m, (a) draw the free-body diagram of the beam; (b) determine the support reaction forces at A and B; (c) determine the shear force and moment in AC, CD and DB sections; (d) draw the shear and moment diagrams of the beam. P P A B D X a a L
A simply supported beam as shown in the figure. The beam section is W18x211. The beam must support its own weight and must carry the following loading: Super-imposed distributed dead load = 0.25 kip/ft Distributed live load = 1 kip/ft Concentrated dead load = 12 kip The beam span L = 26 ft and the distance of the concentrated load from the right support a=6 ft. Consider analy- sis of beam subjected to load combination 1.2 dead + 1.6 live....
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine the bending moment and shear force at section C due to the loading as shown in the figure. 2. 3. There is a distributed live load (w#2.5kN/m) which can vary the location along the beam. Determine the location of the live loads which create the...
Draw the shear force and bending-moment diagrams for the simply
supported beam shown. Label each diagram with the corresponding
values
1. Draw the shear force and bending-moment diagrams for the simply supported beam shown. Label each diagram with the corresponding values. 3 Pe= 30 KN 4 m - m 3 m - C -40 kN - m
Simply supported beam is loaded as shown in figure. (a) Compute support reactions. (3) (b) Draw Shear Force Diagram (SFD) to the scale. (c) Locate the point where shear force is zero. Do not use properties of similar triangles. (3) (d) Compute bending moment at all important points including point where shear force is zero. (4) (e) Draw Bending Moment Diagram (BMD) to the scale. (4) (1) Show deflected shape of the beam. Indicate which part is sagging and which...
a simply supported beam abcd with arectangular cross section
carries the loading shown in figure. the uniform beam has a mass of
33 kg per meter (m kg/m) and a cross section as shown in the
figure. you may take 10 m/s^2 as acceleration.Question A2 A simply supported beam ABCD with a rectangular cross-section carries the loading shown in Figure QA2. The uniform beam has a mass of m kg per meter of length (m kg/m) and a cross-section as shown...
Q2(c) Figure Q1(c) shows a simply supported beam ABCD loaded as shown. The beam is pin-supported at D, while point B is roller-supported. Determine the support reactions. b) For span BC (2<x< 4) write down the x-dependent equation for moment. x should be measured from cnd A. Plot the shear force diagram and the bending moment diagram for the beam. Show all important values of the diagrams. d) Plot the deflected shape of the beam. c) 50KN 40kN/m 25kNm 20kN/m...
A simply supported beam is subjected to a load applied as shown in the figure. Draw the shear force diagram. Consider the section shown and determine (a) the largest shear stress in the section n-n, (b) the shear stress at point a and show this stress on an element. 15,15 30 15,15 20 I n 40 120 15m 0.8 m Dimensions in mm
A simply supported beam is subjected to a load applied as shown in the figure. Draw the...
The simply supported beam shown in Figure 1 is pin-supported at A and roller-supported at D. la) Replace the distributed loads in Figure 1 by an equivalent resultant force and locate its location with respect to A. {2 + 3 marks 1b) Calculate the reactions at supports A and D. {2 marks 1c) Calculate the shear force and bending moment at point C. {4 marks) 15 kN/m 6 kN/m D B q 3.0 m 3.0 m 3.0 m Figure 1
Figure 1 shows a simply supported beam with load P applied at point C and D. If P = 40 kN, L= 3 m and a = 1 m, (a) draw the free-body diagram of the beam; (b) determine the support reaction forces at A and B; (c) determine the shear force and moment in AC, CD and DB sections; (d) draw the shear and moment diagrams of the beam. P P A B D X a a L
