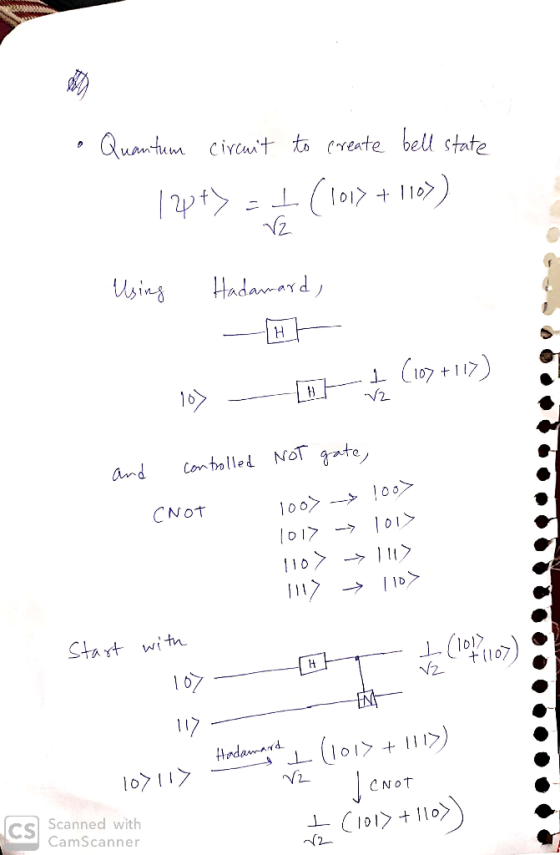

Draw a quantum circuit that could be used to create the following Bell state
| You can use one or

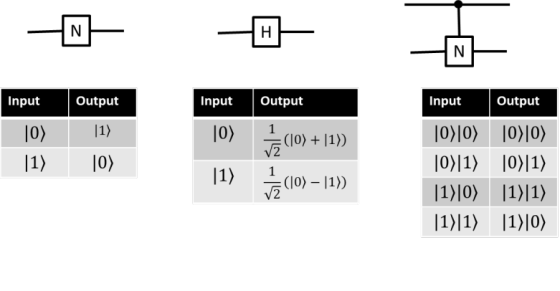

more of the following quantum gates, whose truth tables are
provided below.

Draw a quantum circuit that could be used to create the following Bell state | You can use one or more of the following...
Use the Engineering approach to find the following (assuming:
given): a) derive the
zero-input response of the circuit, b) derive the impulse response
of the circuit, and c) derive the zero-state response to a step
input (You are required to perform convolution by using the
graphical method on this part).
Draw the s-domain circuit (use a current source for the
capacitor initial condition) for the circuit and perform s-domain
analysis to find the following (assuming: given): a) zero-input
response of...
Thc state transition table bclow is for a sequential circuit with onc input X and onc output Y. The circuit has two state variables A and B, and synchronous input Reset that resets the circuit to state AB-01 when Reset 1: Present State Next State Output X-0 A B A B 0 Reset State 0 0 (9 points) Implement the sequential circuit using minimum number of logic gates and rising- edge triggered D-FFs and draw the logic diagram of the...
NAND can do it all! a functioning integrated circuit. Now is your time to create a circuit using only NAND gates. 1. Using the function: F (A B) (C D) Implement this function using AND and OR gates. Use the logic converterto assess your circuit. Imagine that you have no access to AND or OR gates. Create a circuit that implements the same function using only NANDgates. Use the Logic Converterto assess your NAND circuit. Compare to the previous AND/OR...
Which of the following sets of quantum numbers contains an
error?
We were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this image2 n=2.1=1.ml = 0, ms =
Consider the common-emitter amplifier in the following figure,
with = 100,
VA = 100V, C= 25fF,
C= 10fF.
a) Draw the small-signal model of this circuit. Apply Miller’s
theorem to split C to input and
output nodes. Calculate the time constants at the input and output
nodes, in and
out.
b) Based on the time constants from part a), calculate the input
and output pole frequencies, fin and fout.
What is the dominant pole of this amplifier?
We were unable...
3. In the circuit below, suppose the input voltage is iok Inpu output Draw a sketch of the output voltage. Be sure to label the relevant times and relevant asymptotic voltages. We were unable to transcribe this image
A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the logic/circuit diagram. Use the block diagram for the decoder provided in Figure A4 in supplements. Please label the inputs and outputs clearly. Note: use single 3x8 decoder Question 2 (15 points] A priority encoder is an encoder circuit that includes the Truth Table of a priority function. The...
Wave function: Quantum Mechanical Hamonic Osculator, n=0, 1, 2,
3.
Prove the following equation is true:
(reduced mass)
of ac 0 2. 乙 4万 We were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this image
of ac 0 2. 乙 4万
Problem 4 Draw a DFA and an NFA for the following languages
where
= {a,b}.
(a) L={(ab)n; n
0}
(b) L={an(bb); n
1}
We were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this image
Create a Matlab code to solve the two following equations for a pendulum: F = 10 m = 1 ks = 1 (m+M)x'' - ml'' cos + ml'' sin = F -x'' cos + l'' - g sin = 0 We were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to...
