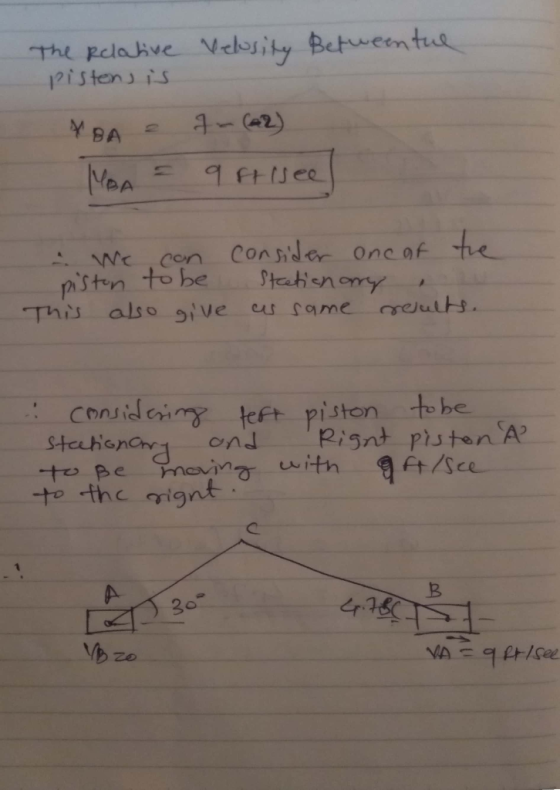

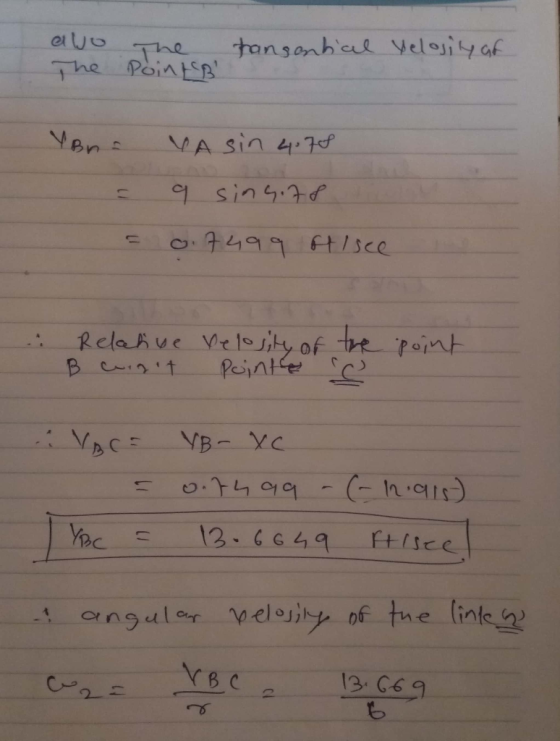

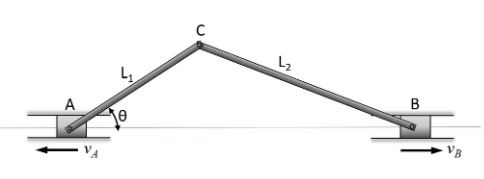

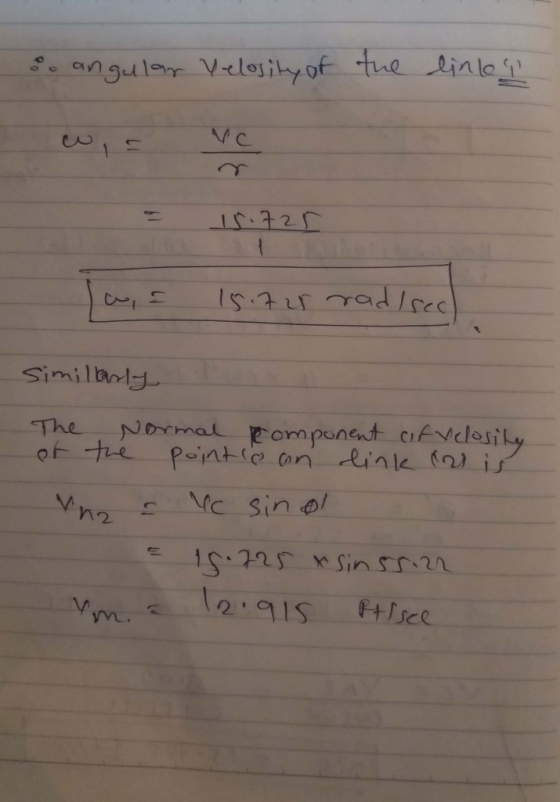

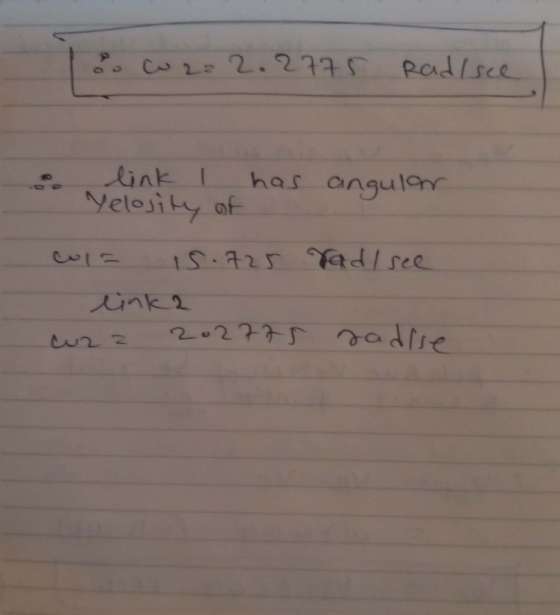

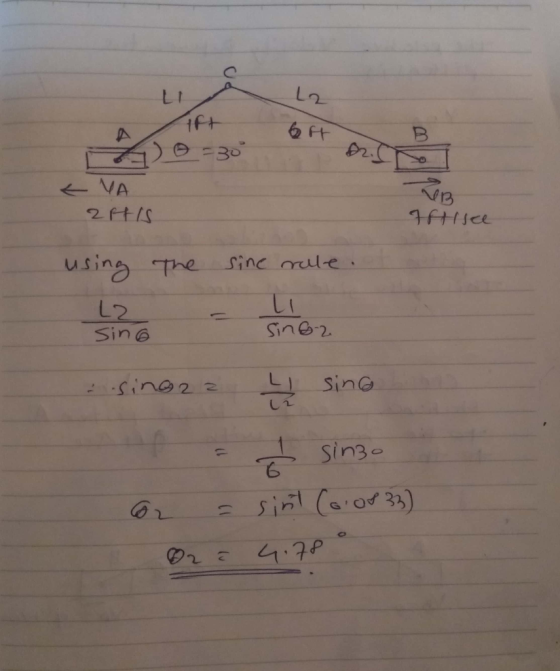

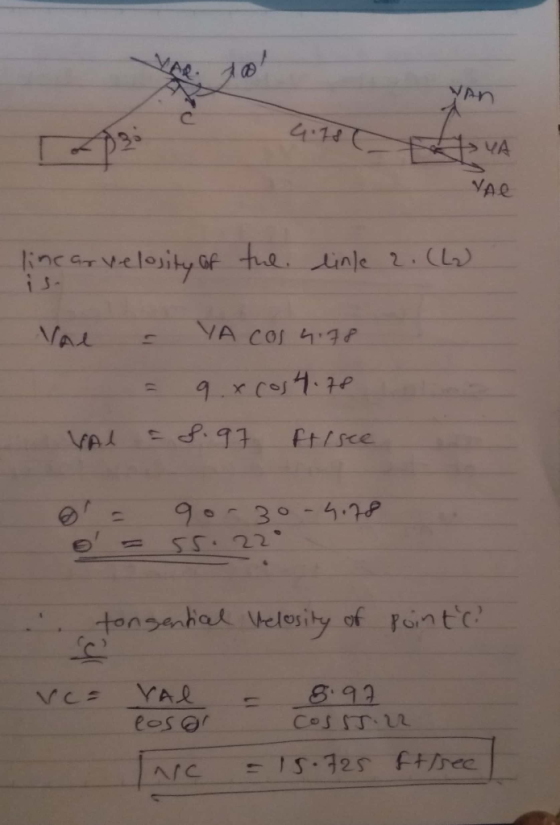

For the pistons and link shown, L1 = 1 ft, L2 = 6 ft, θ = 30°, vA = -2 ft/s, and vB = 7 ft/s. Determine the angular velocity of link AC, the angular velocity of link BC, and the magnitude of the velocity of point C. Give your answer rounded to three significant figures. For angular velocities, clockwise is negative.
Homework Answers
Add Answer to:
For the pistons and link shown, L1 = 1 ft, L2 = 6 ft, θ = 30°, vA = -2 ft/s, and vB = 7 ft/s. Determine the angular velo...
The two 4- lb rods EF and HI are fixed (welded) to the link AC at E . At the instant θ = 30 ∘ link AB has an angular velocity ω = 5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in (Figure...
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
The link AB has an angular velocity of 2.1 rad/s (Figure 1) Part A Determine the...
The link AB has an angular velocity of 2.1 rad/s (Figure 1) Part A Determine the velocity of block C, at the instant θ 45° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the left and negative value if the velocity is directed to the right. ucValue Units Submit Request Answer Part B Figure 1of 1 > Determine the angular velocity of link BC at the instant...
If, θ = 45° , Va = 4m/s Determine the Angular Velocity of link OB. O...
If,
θ = 45° , Va = 4m/s
Determine the Angular Velocity of link OB.
O 400 mm VA 250 mm A C
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1...
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1 of 1 2 m Determine the velocity of block C at the instant 0 = 45° and 0 = 30° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the right and negative value if the velocity is directed to the left. μΑ ] ? Value Vc Units Part B Determine the...
The disk rotates with the angular motion shown. The peg at B is fixed to the...
The disk rotates with the angular motion shown. The peg at
B is fixed to the disk. Suppose that ω = 9 rad/s
, α = 10 rad/s2, r = 0.3 m , and a =
1.35 m . (Figure 1)
Determine the angular velocity of the slotted link
AC at this instant measured counterclockwise.
Express your answer using three significant figures. Enter
positive value if the angular velocity is counterclockwise and
negative value if the angular velocity is clockwise....
determine the angular velocity of the gear at the instant shown in v= 1 ft/s vc...
determine the angular velocity of the gear at the instant
shown in v= 1 ft/s vc = 6
Figure 1 of 1 G 1.50 ft th Determine the angular velocity of the gear at the instant shown in (Figure 1). Set v = 1 ft/s, uc = 6 ft/s. Assume the counterclockwise rotation as positive. Express your answer in radians per second to three significant figures. View Available Hint(s) ΗΨΗ ΑΣΦ vec 5 και ο Submit
QUESTION 2 At the time instant shown in Figure 2, A is moving with constant speed v 1.2 m/s and link OC is rota...
QUESTION 2 At the time instant shown in Figure 2, A is moving with constant speed v 1.2 m/s and link OC is rotating clockwise with constant angular velocity-2 rad/s. Determine the angular velocity and angular acceleration of link BC at this instance. 400 mm 500 mm 300 mm U) Figre 2: A mechanism with motion controlled by controlling the motion of A and rotation of OC
QUESTION 2 At the time instant shown in Figure 2, A is moving...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2 = 3 k/ft. Assume the support at B is a roller and A and Care fixed. EI is constant Part A Determine the moment MAB acting on span AB at A measured clockwise Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? Submit Request Answer Part B...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2 = 3 k/ft. Assume the support at B is a roller and A and Care fixed. EI is constant Part A Determine the moment MAB acting on span AB at A measured clockwise Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? Submit Request Answer Part B...
A motor gives gear A an angular acceleration of αA=(2+0.006θ2)rad/s2, where θ is in radians. (Fig...
A motor gives gear A an angular acceleration of
αA=(2+0.006θ2)rad/s2, where θ is in radians. (Figure 1)
If this gear is initially turning at ωA = 15 rad/s , determine
the angular velocity of gear B after A undergoes an angular
displacement of10 rev, measured counterclockwise.
Express your answer using three significant figures. Enter
positive value if the angular velocity is counterclockwise and
negative value if the angular velocity is clockwise.
175 mm 100 mm CO
175 mm 100 mm...
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
The link AB has an angular velocity of 2.1 rad/s (Figure 1) Part A Determine the velocity of block C, at the instant θ 45° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the left and negative value if the velocity is directed to the right. ucValue Units Submit Request Answer Part B Figure 1of 1 > Determine the angular velocity of link BC at the instant...
If,
θ = 45° , Va = 4m/s
Determine the Angular Velocity of link OB.
O 400 mm VA 250 mm A C
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1 of 1 2 m Determine the velocity of block C at the instant 0 = 45° and 0 = 30° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the right and negative value if the velocity is directed to the left. μΑ ] ? Value Vc Units Part B Determine the...
The disk rotates with the angular motion shown. The peg at
B is fixed to the disk. Suppose that ω = 9 rad/s
, α = 10 rad/s2, r = 0.3 m , and a =
1.35 m . (Figure 1)
Determine the angular velocity of the slotted link
AC at this instant measured counterclockwise.
Express your answer using three significant figures. Enter
positive value if the angular velocity is counterclockwise and
negative value if the angular velocity is clockwise....
determine the angular velocity of the gear at the instant
shown in v= 1 ft/s vc = 6
Figure 1 of 1 G 1.50 ft th Determine the angular velocity of the gear at the instant shown in (Figure 1). Set v = 1 ft/s, uc = 6 ft/s. Assume the counterclockwise rotation as positive. Express your answer in radians per second to three significant figures. View Available Hint(s) ΗΨΗ ΑΣΦ vec 5 και ο Submit
QUESTION 2 At the time instant shown in Figure 2, A is moving with constant speed v 1.2 m/s and link OC is rotating clockwise with constant angular velocity-2 rad/s. Determine the angular velocity and angular acceleration of link BC at this instance. 400 mm 500 mm 300 mm U) Figre 2: A mechanism with motion controlled by controlling the motion of A and rotation of OC
QUESTION 2 At the time instant shown in Figure 2, A is moving...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2 = 3 k/ft. Assume the support at B is a roller and A and Care fixed. EI is constant Part A Determine the moment MAB acting on span AB at A measured clockwise Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? Submit Request Answer Part B...
Question 2 Consider the beam shown in (Figure 1). Suppose w1 = 2 k/ft and W2 = 3 k/ft. Assume the support at B is a roller and A and Care fixed. EI is constant Part A Determine the moment MAB acting on span AB at A measured clockwise Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VOAP vec ? Submit Request Answer Part B...
A motor gives gear A an angular acceleration of
αA=(2+0.006θ2)rad/s2, where θ is in radians. (Figure 1)
If this gear is initially turning at ωA = 15 rad/s , determine
the angular velocity of gear B after A undergoes an angular
displacement of10 rev, measured counterclockwise.
Express your answer using three significant figures. Enter
positive value if the angular velocity is counterclockwise and
negative value if the angular velocity is clockwise.
175 mm 100 mm CO
175 mm 100 mm...
