b. The mast is subjected to three forces as shown. Determine the directions of the angles a1, B1, and γ| such that the...

Question

Question

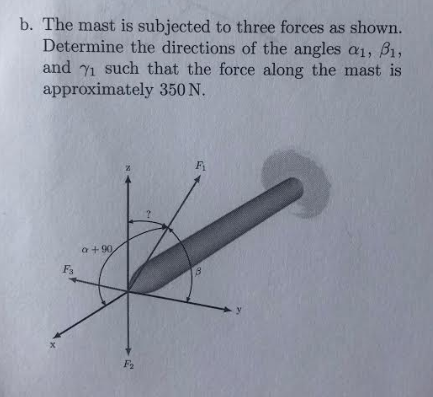

b. The mast is subjected to three forces as shown. Determine the directions of the angles a1, B1, and γ| such that the force

science Advanced-Physics

Answer 1

✔ Recommended Answer

Answer #1

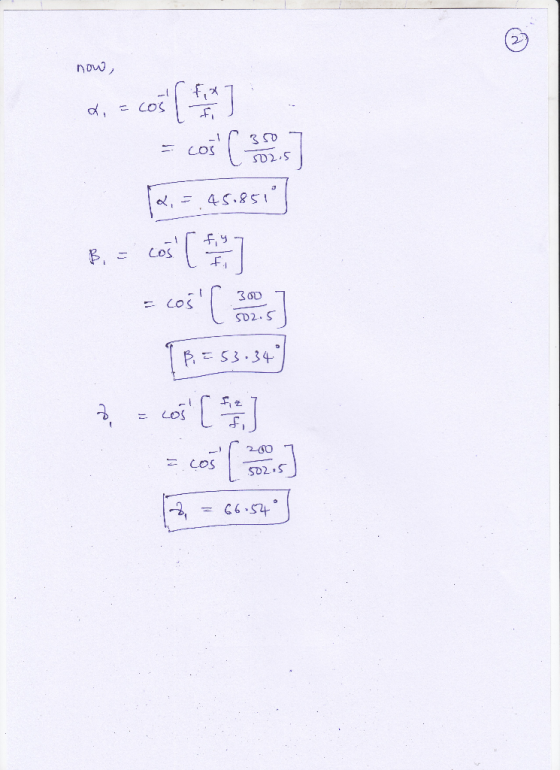

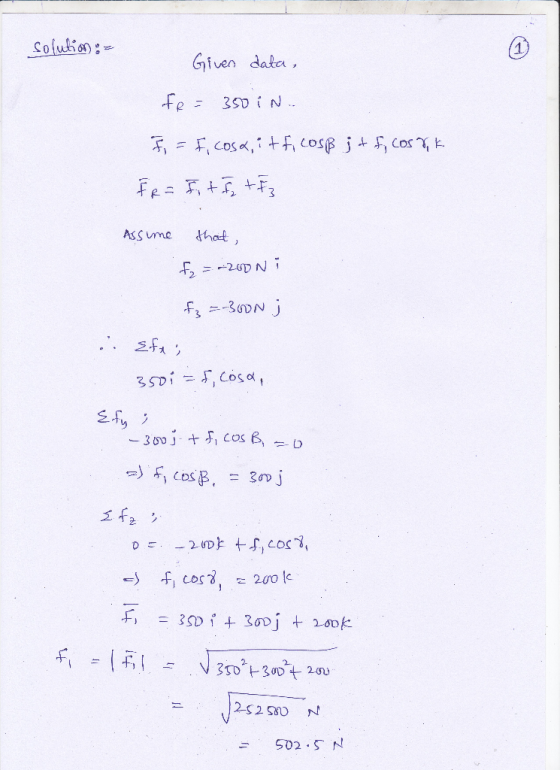

Give dale Assume that 3SD 2 nov ), SD2.S S3.34 2 乞

Answer 2
