1. Use the DPP to decide whether the following sets of clauses
are satisfiable.
(a)
{{¬Q,T},{P,¬Q},{¬Q,¬S},{¬P,¬R},{P,¬R,S},{Q,S,¬T},{¬P,S,¬T},{Q,¬S},{Q,R,T}}
(b)
{{¬Q,R,T},{¬P,¬R},{¬P,S,¬T},{P,¬Q},{P,¬R,S},{Q,S,¬T},{¬Q,¬S},{¬Q,T}}
2. Decide whether each of the following arguments are valid by
first converting
to a question of satisfiability of clauses (see the Proposition),
and then using the DPP.
(Note that using DPP is not the easiest way to decide validity for
these
arguments, so you may want to use other methods to check your
answers)

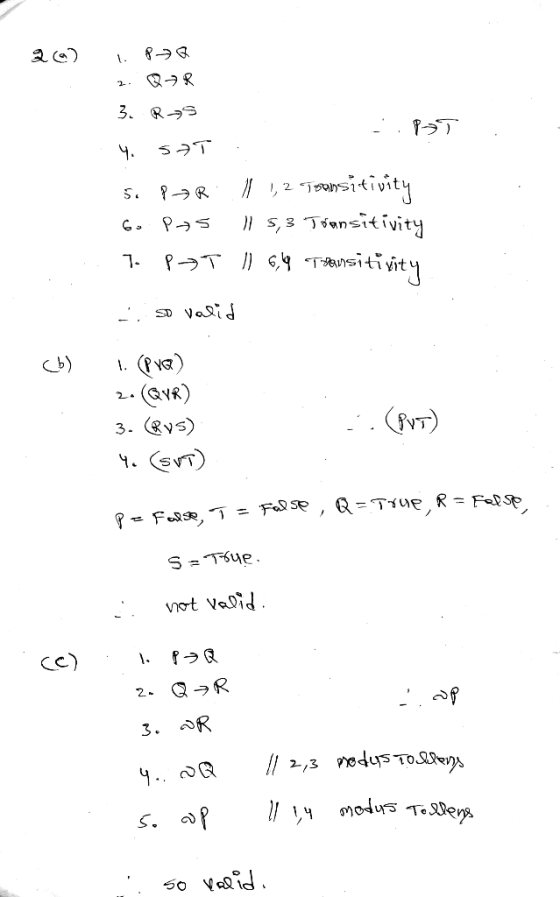

(a) (P → Q), (Q → R), (R → S), (S → T) therefore (P → T).
(b) (P ∨ Q), (Q ∨ R), (R ∨ S), (S ∨ T) therefore (P ∨ T).
(c) (P → Q), (Q → R), ¬R, therefore ¬P.

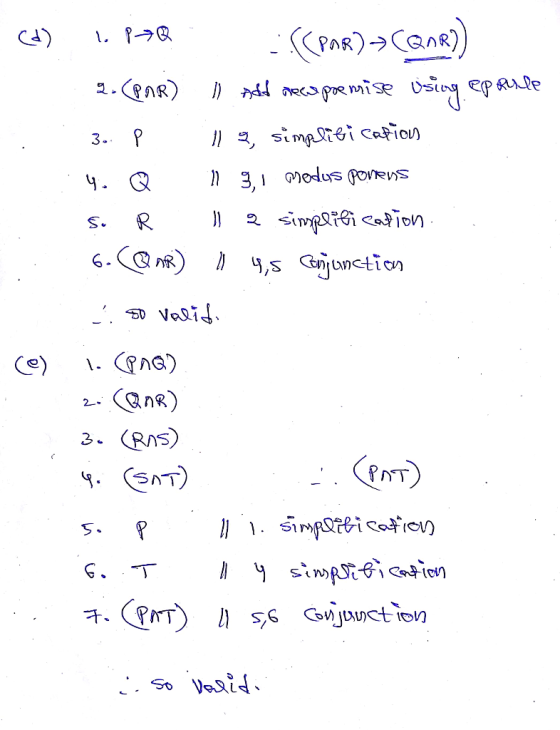

(d) (P → Q), therefore ((P ∧ R) → (Q ∧ R)).
(e) (P ∧ Q), (Q ∧ R), (R ∧ S), (S ∧ T) therefore (P ∧ T).
1. Use the DPP to decide whether the following sets of clauses are satisfiable. (a) {{¬Q,T},{P,¬Q},{¬Q,¬S},{¬P,¬R},{P,¬R...
Use Python to determine whether
below expression is satisfiable.
(p V -q) ~ (q V - r) ~ (r V -p) ~ (p V q V r) ~ (-p V -q V
-r))
Find the output of the below FOUR circuits r-
UIC 5. (20 pt.) Use the laws of propositional logic to prove that the following compound propositions are tautologies. a. (5 pt.) (p^ q) → (q V r) b. (5 pt) P)Ag)- Vg)A(A-r)- c. (10 pt.) Additional Topics: Satisfiability (10 pt.) A compound proposition is said to be satisfiable if there is an assignment of truth values to its variables that makes it true. For example. p ^ q is true when p = T and q = T;thus, pAqissatsfiable....
Validate the following arguments: a. ( ~p ∧ ((q ∧ r) → s) ∧ (s → p) ∧ (~(q ∨ r) → t ) → t b.( (p → r) ∧ q ∧ (q → ~r) ∧ r ) → ~p
Which combinations of p, q, and r are the ones that we need to use to determine whether the argument is valid? (i.e. combinations that create the critical rows) p 1-(qV r) r =p therefore 19 O p^q^r p^q^ar | p ^ ~q^r Op^~Q^ar ~p^q^r -p^q^-r | ~P^ ~q^r ~P^ ~q ^ar
Using inference rules
Show that the argument form with premises (p t) rightarrow (r s), q rightarrow (u t), u rightarrow p, and s and conclusion q rightarrow r is valid by first using Exercise 11 and then using rules of inference from Table 1.
1. Use a truth table to find if the following is valid or not valid: p → r q → r q ˅ ¬r Therefore, ¬p Valid Not Valid Discrete Math 2. Indicate whether each expression is an equivalence of the following: p ˄ q p ˅ q p → q ¬(p → q) (p ˄ q) ˅ (p ˄ q) ¬ (¬p ˅ ¬q) 3. For the given values for p, q, and r,...
Discrete Math:
Decide whether (p^q)r and
(pr)^(qr) are
logically equivalent using boolean algebra. Show work! Do NOT use
truth table.
We were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this image
determine whether the argument is balud usinf the eight rules
of standard deduction
Page 2) 1.-P → (Q v (R & S)) 2. P→Q 3. -Av Q 4-Q / ~RvS 3) 1, ~P → Q 4. S
Page 2) 1.-P → (Q v (R & S)) 2. P→Q 3. -Av Q 4-Q / ~RvS 3) 1, ~P → Q 4. S
QUESTION 3 Symbolize the following argument using the variables p, q, and r. Then construct a complete truth table to show whether or not the argument is valid. Use 1 for T(true) and 0 for F(false). Valid or Invalid? Why? Prove. Explain what your truth table shows. 10 points Total: 3 points for correct symbolic form, 4 points for valid/invalid and reason, 3 points for correct truth table. If Max studies hard, then Max gets an 'A' or Max gets...
Directions. Determine whether the following three arguments are valid using the truth table method. Use the Indirect Truth Table method as found in the link on Canvas. Indicate whether each is valid or not. Note that ‘//’ is used as the conclusion indicator and ‘/’ is used to separate the premises. [Note: Use only the following logical symbols: ‘&’ for conjunctions, ‘v’ for disjunctions, ‘->’ for conditionals, ‘<->’ for biconditionals, ‘~’ for negations.] Show your truth tables. 1. (S <->...
