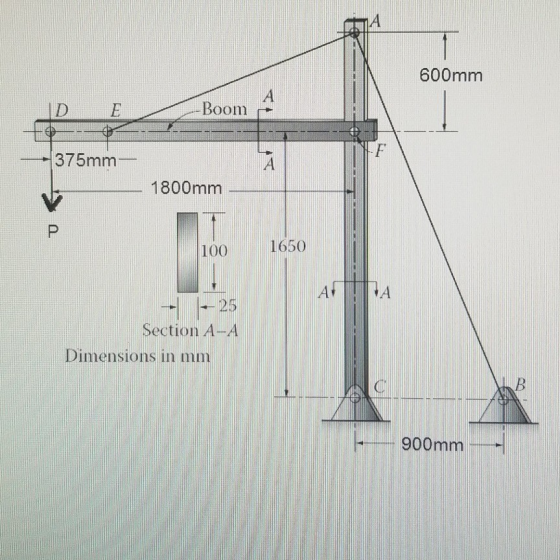

P = 12.5kN
Points A-F are pins with diameter 25mm
Solve for all reaction forces and tension in the cables
Homework Answers
upvote if correctly
explained.. comment before rating if doubtful..
Add Answer to:
P = 12.5kN Points A-F are pins with diameter 25mm Solve for all reaction forces and tension in the cables 600mm D E...
