College Of Engineering wsialdul University ofBusiness and Tochmoloty Collage of Engineering CE 313 Basie Structural...
Question 1: Calculate the reactions at all supports and determine the force in members CD, DE,...

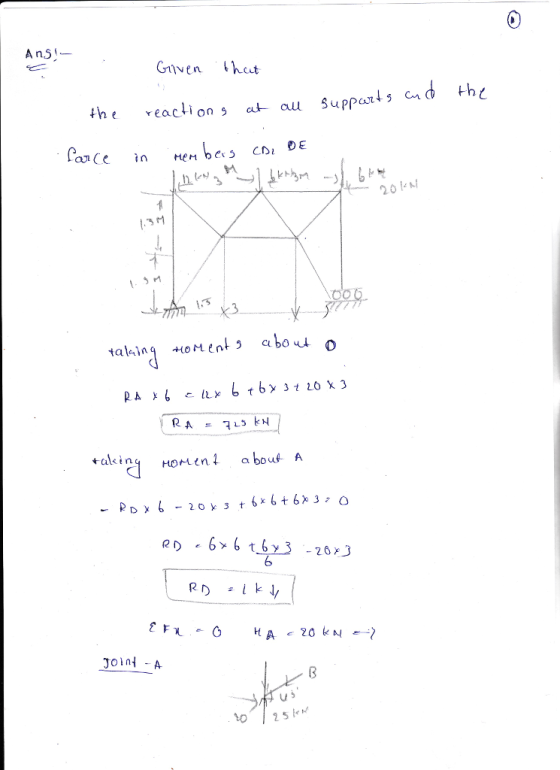

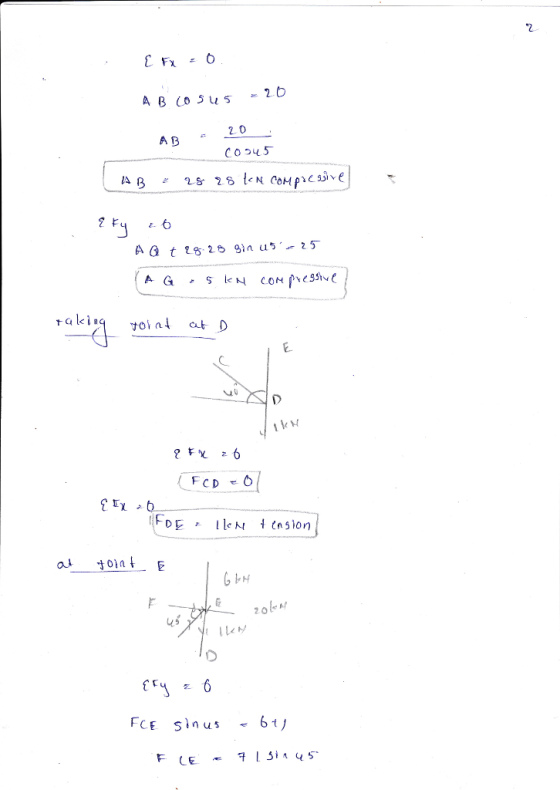

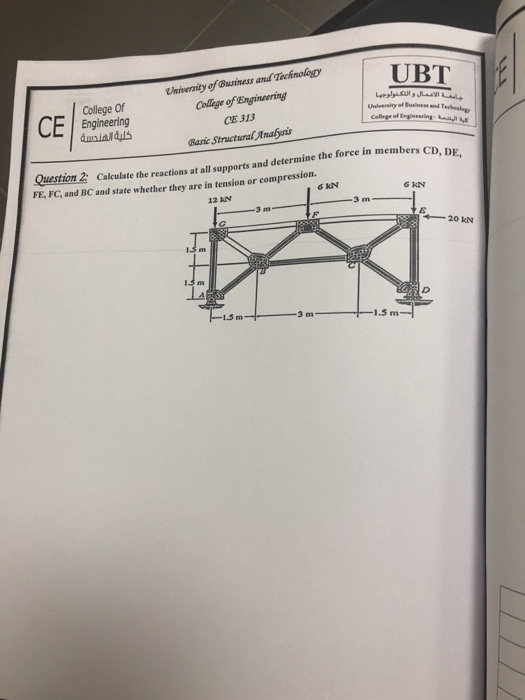

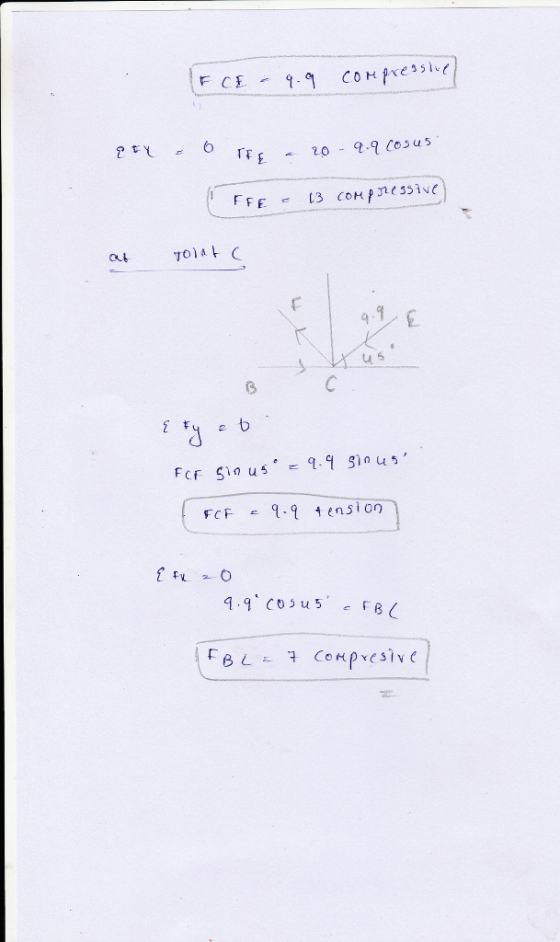

Question 1: Calculate the reactions at all supports and determine the force in members CD, DE, FE, FC, and BC and state whether they are in tension or compression. 11 KN 16 kN 16 KN 20 KN 1.5 m- Mem ber CD DE FE FC BC Force Type
Question 1: Calculate the reactions at all supports and determine the force in members CD, DE,...
Question 1: Calculate the reactions at all supports and determine the force in members CD, DE, FE, FC, and BC and state whether they are in tension or compression. 11 KN 16 kN 16 KN 20 KN 1.5 m-
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum...
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
2. Use the Method of Joint, and determine the force in each member of the roof...
2. Use the Method of Joint, and determine the force in each member of the roof truss. State if the members are in tension or compression. Assume A is a pin and D is a roller support. (AB:-28.9kN; AE:14.4kN; BE:5.77kN; BC:-17.3kN; CE:-5.77KN; ED:20.2kN; CD:-40.4kN) 40 KN 20 KN 4 m D
Final Exam 2. Analyze the truss shown below: (50 Points) a. Solve for the reactions at...
Final Exam 2. Analyze the truss shown below: (50 Points) a. Solve for the reactions at supports A and D b. Determine the force developed in members FE, EB, and BC of the truss, and state if these members are in tension or compression. Use the method of sections, c. Draw a free body diagram (FBD) of: i. The entire truss, without its supports ii. The truss section after cutting it iii. Any joint that you solve. m 1 m...
A roof truss is loaded and supported as shown in Figure 2. The joints are all...
A roof truss is loaded and supported as shown in Figure 2. The joints are all pinned. (a) Determine the support reactions at A and G. (25 marks) (b)Using "Method of joints" find the forces in members AB, AF, GF, CD and DE of the truss. State whether each of these members is in tension or compression. (75 marks) (c) Determine the force in members BC, CF and EF of the truss using "Method of sections". State whether each of...
Question Four: For the pin-jointed truss shown in Figure 4, 3m 12 KN 3m 30 kN 3m 15 kN 4m 4m 3m 3m 6m Figure 4. Calcula...
Question Four: For the pin-jointed truss shown in Figure 4, 3m 12 KN 3m 30 kN 3m 15 kN 4m 4m 3m 3m 6m Figure 4. Calculate the reactions at A and B. (a) By inspection (involving no calculations), list all the zero force members. (b) (c) By method of joints, analyse joints T, S and N to determine the force in members ST NT, RS, SN, MN and RN. In your answer, you must state whether the members are...
please solve all three questions thanks Problem 1/3 (30 pts) Calculatc forces in the following members:...
please solve all three questions
thanks
Problem 1/3 (30 pts) Calculatc forces in the following members: AB, BC, CA, CD 3000 lb 40 State whether each member is in tension or compression. 6 ft 8 ft Use method of joints Problem 2/3 (30 pts) ) Rieglac the loding on the beam with a 2 kN specify the magnitude, and b) 4 kN/m a) location measure from point A Find reactions at point A 2) 1.5 m + 1.5 m- Problem...
engineering mechain Problem-1: (20 points) A cantilever beam is supported by a distributed load, concentrated load...
engineering mechain
Problem-1: (20 points) A cantilever beam is supported by a distributed load, concentrated load and moment as shown in the figure. Use wo= 1 kN/m and L=12 m. Determine the following: a. Write down the equation of shear force and bending moment for the portion of the beam from A to B. b. Draw the shear force diagram for the entire beam c. Draw the bending moment diagram for the entire beam d. What is the shear force...
Do not solve the problems on the assignment sheet. Round your final answer to three significans...
Do not solve the problems on the assignment sheet. Round your final answer to three significans fi unless otherwise specified. Show work Problem 1/3 (30 pts) Calculate forces in the following AB, BC, CA. CD 3000 1b State whether each member is in tension or compression. 6 n H ft Use method of joints Problem 2/3 (30 pts) Replace the loading on the beam with a single force: a) specify the magnitude, and b) location measure from point A Find...
Question 1: Calculate the reactions at all supports and determine the force in members CD, DE, FE, FC, and BC and state whether they are in tension or compression. 11 KN 16 kN 16 KN 20 KN 1.5 m- Mem ber CD DE FE FC BC Force Type
Question 1: Calculate the reactions at all supports and determine the force in members CD, DE, FE, FC, and BC and state whether they are in tension or compression. 11 KN 16 kN 16 KN 20 KN 1.5 m-
AC-CD- BC Exercise IV 20 PT a- Determine the reactions at the supports. b- Determine the force in each member of the truss c- State if the members are in tension or 3 ft compression d- If the maximum allowed in each beam is 400lb in tension and 600lb in compression, determine the maximum of admissible load P. 2 ft 2 ft Exercise V: 40 PT 1.6 kN 200 _ 400 mm + 45 The angle strut is welded to...
2. Use the Method of Joint, and determine the force in each member of the roof truss. State if the members are in tension or compression. Assume A is a pin and D is a roller support. (AB:-28.9kN; AE:14.4kN; BE:5.77kN; BC:-17.3kN; CE:-5.77KN; ED:20.2kN; CD:-40.4kN) 40 KN 20 KN 4 m D
Final Exam 2. Analyze the truss shown below: (50 Points) a. Solve for the reactions at supports A and D b. Determine the force developed in members FE, EB, and BC of the truss, and state if these members are in tension or compression. Use the method of sections, c. Draw a free body diagram (FBD) of: i. The entire truss, without its supports ii. The truss section after cutting it iii. Any joint that you solve. m 1 m...
A roof truss is loaded and supported as shown in Figure 2. The joints are all pinned. (a) Determine the support reactions at A and G. (25 marks) (b)Using "Method of joints" find the forces in members AB, AF, GF, CD and DE of the truss. State whether each of these members is in tension or compression. (75 marks) (c) Determine the force in members BC, CF and EF of the truss using "Method of sections". State whether each of...
Question Four: For the pin-jointed truss shown in Figure 4, 3m 12 KN 3m 30 kN 3m 15 kN 4m 4m 3m 3m 6m Figure 4. Calculate the reactions at A and B. (a) By inspection (involving no calculations), list all the zero force members. (b) (c) By method of joints, analyse joints T, S and N to determine the force in members ST NT, RS, SN, MN and RN. In your answer, you must state whether the members are...
please solve all three questions
thanks
Problem 1/3 (30 pts) Calculatc forces in the following members: AB, BC, CA, CD 3000 lb 40 State whether each member is in tension or compression. 6 ft 8 ft Use method of joints Problem 2/3 (30 pts) ) Rieglac the loding on the beam with a 2 kN specify the magnitude, and b) 4 kN/m a) location measure from point A Find reactions at point A 2) 1.5 m + 1.5 m- Problem...
engineering mechain
Problem-1: (20 points) A cantilever beam is supported by a distributed load, concentrated load and moment as shown in the figure. Use wo= 1 kN/m and L=12 m. Determine the following: a. Write down the equation of shear force and bending moment for the portion of the beam from A to B. b. Draw the shear force diagram for the entire beam c. Draw the bending moment diagram for the entire beam d. What is the shear force...
Do not solve the problems on the assignment sheet. Round your final answer to three significans fi unless otherwise specified. Show work Problem 1/3 (30 pts) Calculate forces in the following AB, BC, CA. CD 3000 1b State whether each member is in tension or compression. 6 n H ft Use method of joints Problem 2/3 (30 pts) Replace the loading on the beam with a single force: a) specify the magnitude, and b) location measure from point A Find...
