Find support reactions and all internal stresses ysing stiffness method. 10 Kips 10 Kips 10 ft 10 ft10 ft10 ft E cons...

Question

Question

Find support reactions and all internal stresses ysing stiffness method.

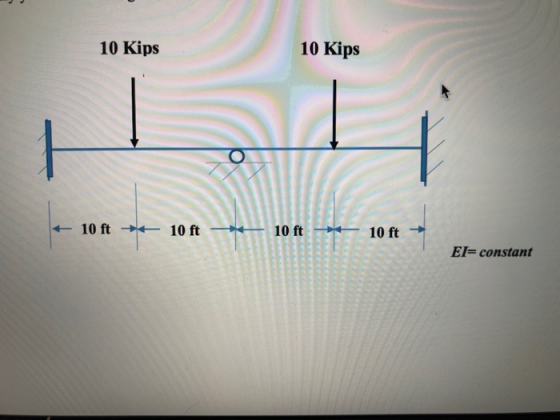

10 Kips 10 Kips 10 ft 10 ft10 ft10 ft E constant

engineering Civil-Engineering

Answer 1

Answer #1

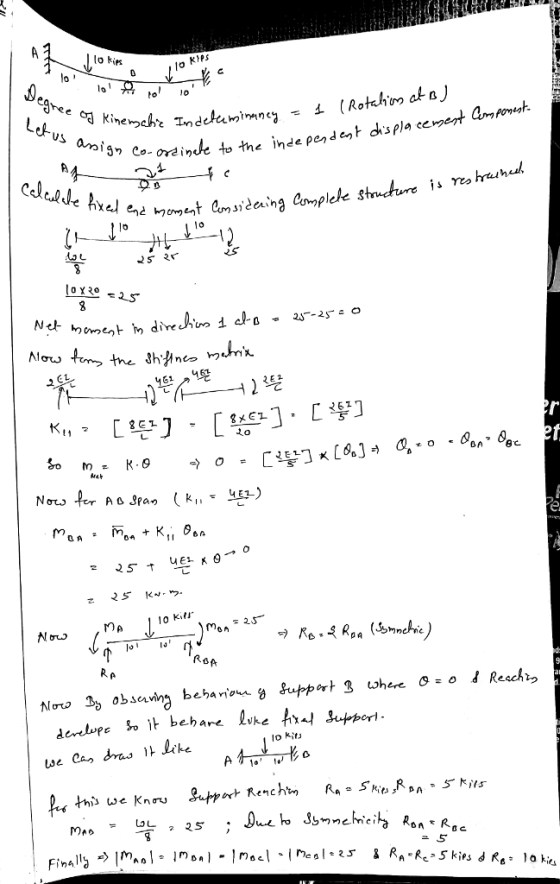

1o lo to 1o continde to the inde pendet dspla cemeh ah 2 CL RA derbre Soit behare Is ke frㅚ J.therl ● 10 kit」

Answer 2

Similar Homework Help Questions

E is constant, find the reaction forces and moments Using the Moment Distribution Method (modified stiffness approach) 240 lb/ft 300 in4 600 in4 20 ft 15 ft E is constant, find the reaction forc...

E is constant, find the reaction forces and moments Using the Moment Distribution Method (modified stiffness approach) 240 lb/ft 300 in4 600 in4 20 ft 15 ft E is constant, find the reaction forces and moments Using the Moment Distribution Method (modified stiffness approach) 240 lb/ft 300 in4 600 in4 20 ft 15 ft
Problem #1: Using the moment distribution method, determine the internal end moments, support reactions and plot...

Problem #1: Using the moment distribution method, determine the internal end moments, support reactions and plot the shear and moment diagrams for the beam shown. Label all points including maximum and minimum on the shear and moment diagrams. El is constant pok 3.5 k/ft B с 12 ft 12 ft 12 ft +
Using the Force Method, find the support reactions in the beam below. Support at A is...

Using the Force Method, find the support reactions in the beam below. Support at A is a pin and B and C are rollers. EI is constant. a) Draw the free body diagrams of the superposition method b) State the degree of indeterminacy and find a way to convert the structure to a determinate one, draw the FBDs and clearly show the cutting sections and equations of the internal moments c) Find reactions in each support 2.5 N/m 10 m--10m-...

Please find all reactions with Moment Distribution Method & draw shear/moment diagrams. Please show all work. Thank you in advance! Problem #2: For the indeterminate beam shown below: a) Determin...

Please find all reactions with Moment Distribution Method & draw shear/moment diagrams. Please show all work. Thank you in advance! Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw shear and moment diagrams. El is constant. Show your work. 18 kips 24 kips 6 k/ft 16 k/ft 10ft 12 ft 12ft Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw...
For the beam shown, determine the reaction at the roller support when Wo 10 kips/ft. (Round...

For the beam shown, determine the reaction at the roller support when Wo 10 kips/ft. (Round the final answer to two decimal places.) wWo(/L A В L 12 ft The reaction at the roller support is kips f
Use stiffness method with matrixes. *14-8. Determine the vertical displacement of join and the support reactions....

Use stiffness method with matrixes. *14-8. Determine the vertical displacement of join and the support reactions. AE is constant. 3 m 3 kN 4 m 1 45° Probs. 14-7/8

For the continuous beam shown, compute the support reactions using the method of consistent defor...

draw the shear and bending moment diagrams also please For the continuous beam shown, compute the support reactions using the method of consistent deformations by taking the reaction at support B as redundant. Also, draw the shear and bending moment diagrams. The beam is subjected to a 20 kips concentrated load at the middle of the left span plus a 1.5 inch settlement of support B. Use deflection formulas to determine deflections at B. Assume E-29000 ksi and I-750 in...
For the following beam obtain: The deformed shape Using the moment distribution method: a. b. i....

For the following beam obtain: The deformed shape Using the moment distribution method: a. b. i. End moment forces based on original stiffness factors. ii. End moment forces using the modified stiffness factors. ii. Shear and moment diagrams for members AB and BC Assume El is constant. Support A is fixed, and supports B and C are rollers. 10k 2.5 k/ft 10 ft10 ft
The beam shown below is subjected to a uniform load of 2 kips/ft, two concentrated transverse...

The beam shown below is subjected to a uniform load of 2 kips/ft, two concentrated transverse loads of 12 kips, and 6 kips, and a tensile axial force of 10 kips. a) Draw the shear and moment diagrams. (8) b) Find the stresses at B. (10) c) Find the maximum shearing stress in the beam. (10) 12 kips 2 k/ft 6 kips 10 kips 4 41 8' A B D E 12" 2" 2 14" B 24 16"

Analyze the nonsway frame by the Slope-Deflection Method. •Evaluate all the reactions •Consider Special-Case Spans and...

Analyze the nonsway frame by the Slope-Deflection Method. •Evaluate all the reactions •Consider Special-Case Spans and Statically Determinate (CE 304) Spans where appropriate Slope Deflection Method - Frames Problem 1. Given: 8 k 2 k/ft 15 ft E constant Support A is a pin Support C is fixed Support D is a roller 12 ft (A) HAND CALCULATIONS Analyze the nonsway frame by the Slope-Deflection Method. Evaluate all the reactions e Consider Special-Case Spans and Statically Determinate (CE 304) Spans...
