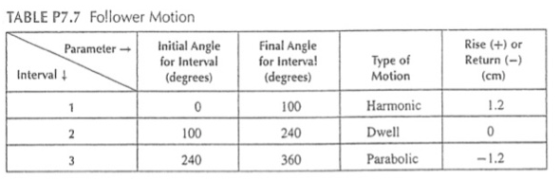

A disc cam mechanism is to provide the motion given in Table P7.7. There is a translating roller follower with zero offset.

(a) Plot the displacement diagram.

(b) Graphically construct the cam profle.

d_b = 4.0 cm ; d_r = 1.0 cm

(c) adjusting are offset

d_b=2.0 cm; d_r=1.0 cm ; S=0

engineering Mechanical-Engineering

Answer 1

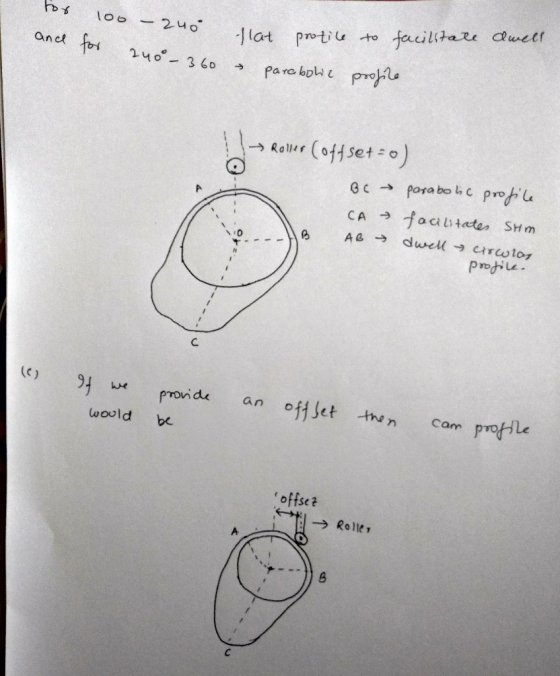

Answer #1

Answer 2
