Homework Answers
Add Answer to:

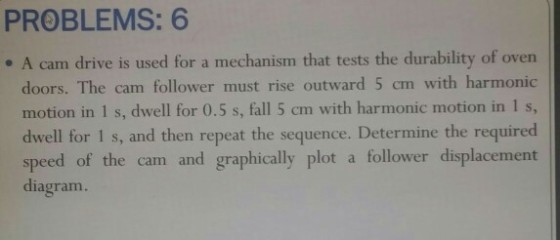

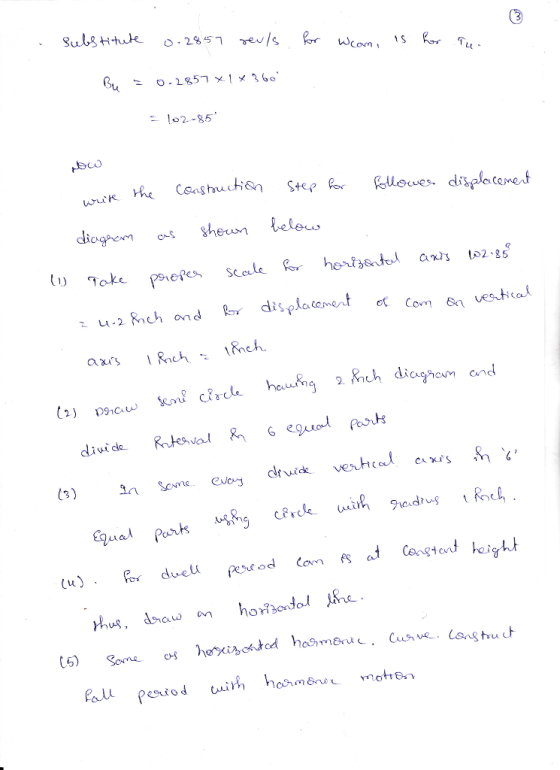

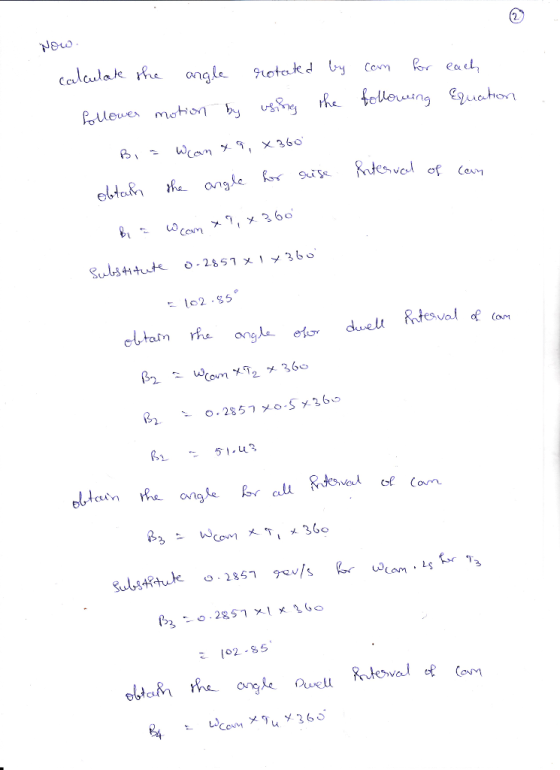

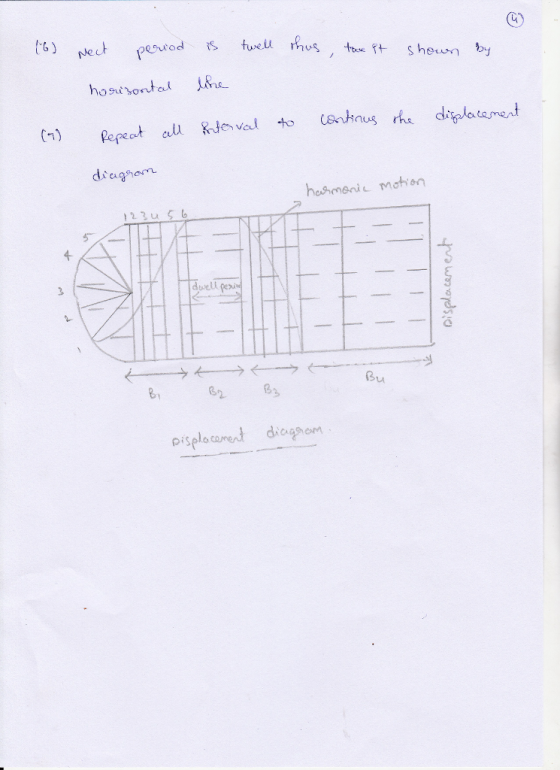

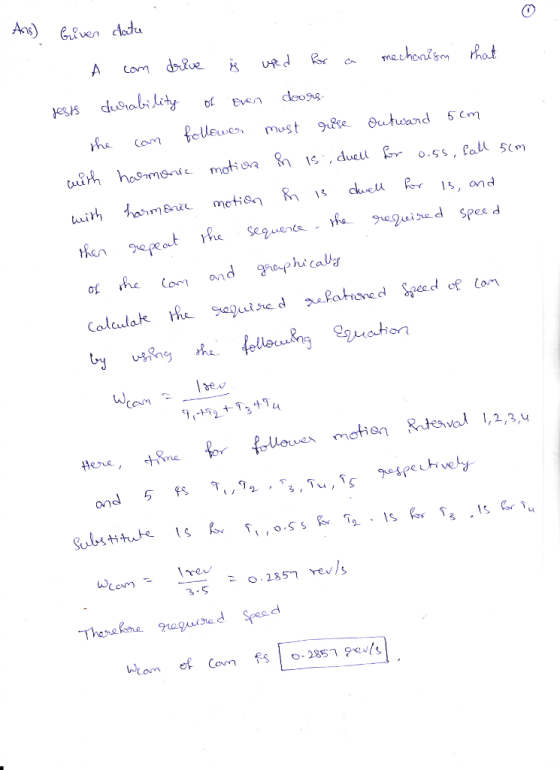

PROBLEMS: 6 e A cam drive is used for a mechanism that tests the durability of...
Kinematics of Mechanisms CH, 6 OJKShim Homework #3: Cam-follower mechanisms Design A cam is to drive its follower as...
Kinematics of Mechanisms CH, 6 OJKShim Homework #3: Cam-follower mechanisms Design A cam is to drive its follower as follows: 0° < 90°: dwell at zero lift 90° 180°: rise 10mm with cycloidal motion 180° 270°: return 10mm with cycloidal motion 2700 360°: dwell at zero lift. 1. Determine the equations and plot, S(ø), the displacement diagram for this motion, and their drivatives, S()=dS(¢)/d¢ S"(dP S(/d, and S"() d S(/d Mechanical Design and CAD Lab., Korea University
Kinematics of Mechanisms...
Design a rise-fall-dwell cam-follower motion profile that will rise from 0 to 7 mm in 0.5...
Design a rise-fall-dwell cam-follower motion profile that will rise from 0 to 7 mm in 0.5 seconds, then fall for 0.5 seconds back to 0 mm, and then dwell for 1 second. Note that this produces a symmetric rise-fall curve. There should be no overshoot, and the motion should be relatively smooth. Your final follower motion profile s(θ) should be in terms of cam angle θ.
1. (40 points) A double-dwell cam is to move a follower from 0 to 2" in 120°, dwell for 80°, fall in 90 and dwell for the remainder. The total cycle is 5 seconds. Using cycloidal motion for t...
1. (40 points) A double-dwell cam is to move a follower from 0 to 2" in 120°, dwell for 80°, fall in 90 and dwell for the remainder. The total cycle is 5 seconds. Using cycloidal motion for the rise and 3-4-5 polynomial motion for the fall, find the follower displacement corresponding to the cam angle 0 at 90°, 180°, 230° and 320 respectively. Also find the maximum actual acceleration (in inch/sec2) during the entire motion cycle.
1. (40 points)...
A disc cam mechanism is to provide the motion given in Table P7.7
A disc cam mechanism is to provide the motion given in Table P7.7. There is a translating roller follower with zero offset. (a) Plot the displacement diagram. (b) Graphically construct the cam profle. db = 4.0 cm ; dr = 1.0 cm(c) adjusting are offsetdb=2.0 cm; dr=1.0 cm ; S=0
Consider a cam with a roller follower. The cam displacement curve is in the given order:...
Consider a cam with a roller follower. The cam displacement curve is in the given order: i. for 45 degrees, a sinusoidal rise of 1 in ii. for 75 degrees, a dwell iii. for 60 degrees, a cycloidal return of 1 in iv. for 180 degrees, a dwell During the motion, the velocity is continuous but not necessarily the acceleration. a) Assume a constant cam speed of 1200 rpm. Find the maximum magnitude of the velocity (in inch/s) and acceleration...
oghment 11 The Simple Pendulum Simo 10 10 . Why is the simple pendulum frequently used...
oghment 11 The Simple Pendulum Simo 10 10 . Why is the simple pendulum frequently used as an example of simple harmonie motion? Pendulum Very close to simple harmonic motion. 9+ the acceleration is proportional to A-Omax. Sinua the negative displacement, the OCCA E PO anguar I S. Pio portond Mas + 2. Given the following data, plot the period is the length, then plot the periods o n the require the square root of the length of angular displacena...
Exercises 1. (introduction) Sketch or plot the displacement of the mass in a mass-spring system for at least two per...
Exercises 1. (introduction) Sketch or plot the displacement of the mass in a mass-spring system for at least two periods for the case when Wn-2rad/s, 괴,-1mm, and eto =-v/5mm/s. 2. (introduction) The approximation sin θ ะ θ is reasonable for θ < 10°. If a pendulum of length 0.5m, has an initial position of 0()0, what is the maximum value of the initial angular velocity that can be given to the pendulum without violating this smll angle approximation? 3. (harmonic...
Kinematics of Mechanisms CH, 6 OJKShim Homework #3: Cam-follower mechanisms Design A cam is to drive its follower as follows: 0° < 90°: dwell at zero lift 90° 180°: rise 10mm with cycloidal motion 180° 270°: return 10mm with cycloidal motion 2700 360°: dwell at zero lift. 1. Determine the equations and plot, S(ø), the displacement diagram for this motion, and their drivatives, S()=dS(¢)/d¢ S"(dP S(/d, and S"() d S(/d Mechanical Design and CAD Lab., Korea University
Kinematics of Mechanisms...
1. (40 points) A double-dwell cam is to move a follower from 0 to 2" in 120°, dwell for 80°, fall in 90 and dwell for the remainder. The total cycle is 5 seconds. Using cycloidal motion for the rise and 3-4-5 polynomial motion for the fall, find the follower displacement corresponding to the cam angle 0 at 90°, 180°, 230° and 320 respectively. Also find the maximum actual acceleration (in inch/sec2) during the entire motion cycle.
1. (40 points)...
Consider a cam with a roller follower. The cam displacement curve is in the given order: i. for 45 degrees, a sinusoidal rise of 1 in ii. for 75 degrees, a dwell iii. for 60 degrees, a cycloidal return of 1 in iv. for 180 degrees, a dwell During the motion, the velocity is continuous but not necessarily the acceleration. a) Assume a constant cam speed of 1200 rpm. Find the maximum magnitude of the velocity (in inch/s) and acceleration...
oghment 11 The Simple Pendulum Simo 10 10 . Why is the simple pendulum frequently used as an example of simple harmonie motion? Pendulum Very close to simple harmonic motion. 9+ the acceleration is proportional to A-Omax. Sinua the negative displacement, the OCCA E PO anguar I S. Pio portond Mas + 2. Given the following data, plot the period is the length, then plot the periods o n the require the square root of the length of angular displacena...
Exercises 1. (introduction) Sketch or plot the displacement of the mass in a mass-spring system for at least two periods for the case when Wn-2rad/s, 괴,-1mm, and eto =-v/5mm/s. 2. (introduction) The approximation sin θ ะ θ is reasonable for θ < 10°. If a pendulum of length 0.5m, has an initial position of 0()0, what is the maximum value of the initial angular velocity that can be given to the pendulum without violating this smll angle approximation? 3. (harmonic...
