Homework Answers
Add Answer to:

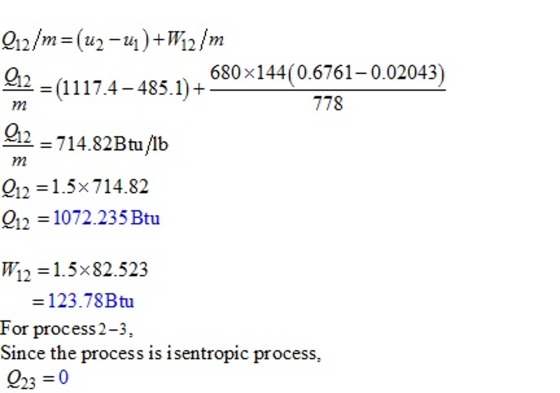

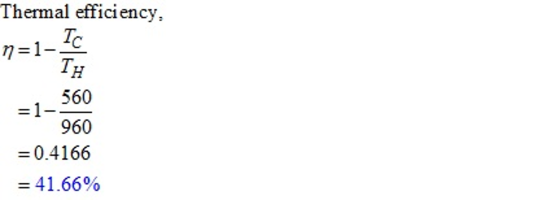

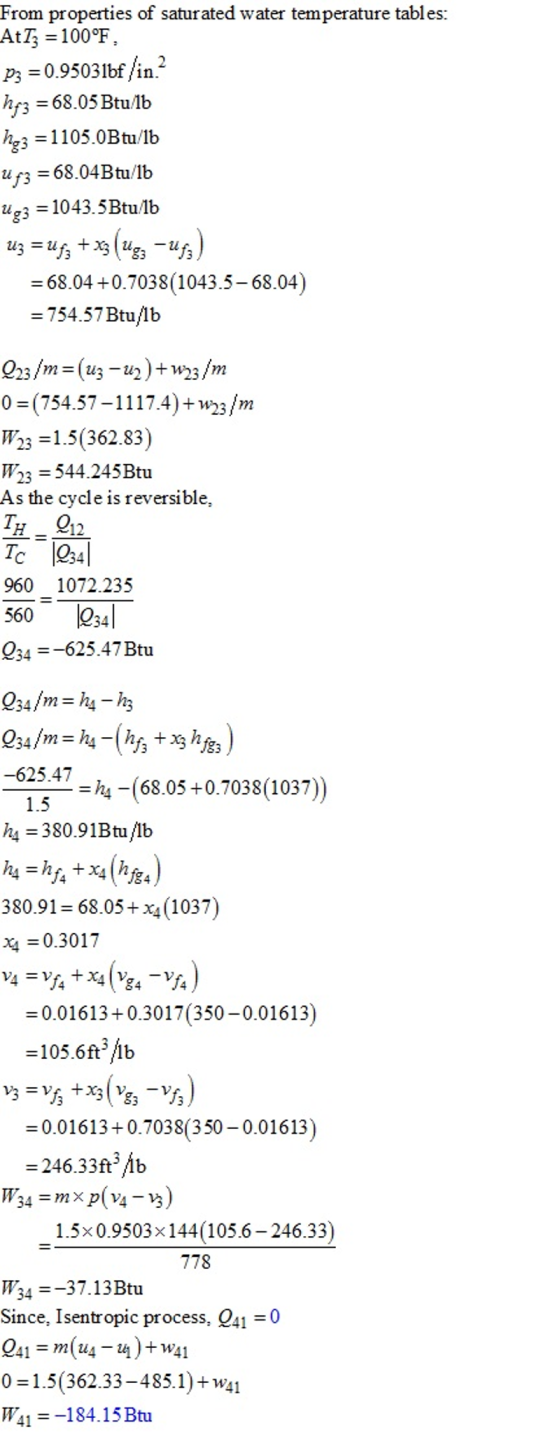

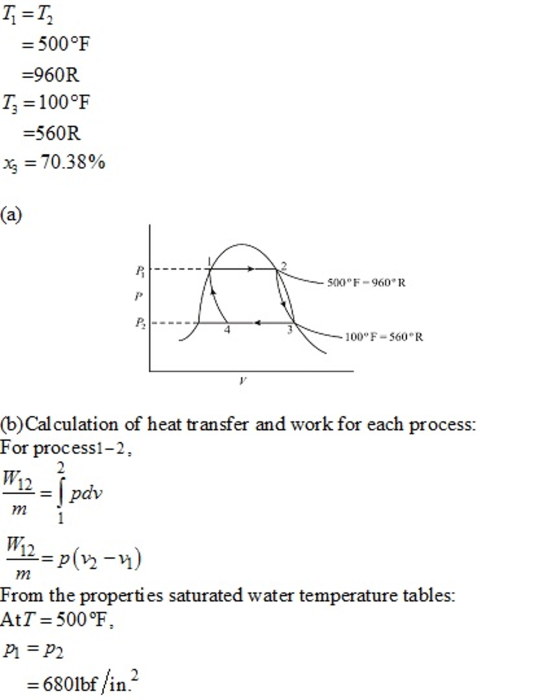

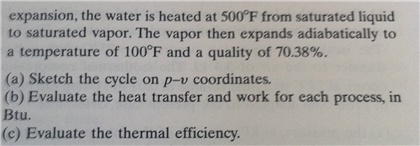

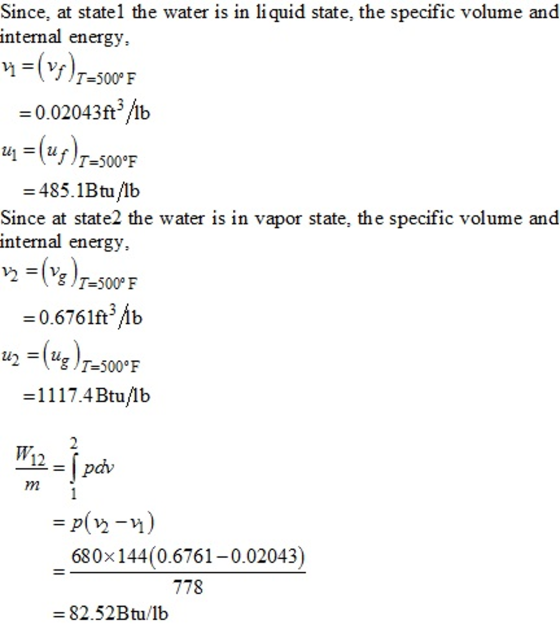

One and one-half pounds of water within a piston-cylinder assembly execute a Carnot power cycle. During isothermal exp...
Problem 2:2* (Carnot Cycle Application) Two kilograms of air within a piston-cylinder assembly execute a Carnot...
Problem 2:2* (Carnot Cycle Application) Two kilograms of air within a piston-cylinder assembly execute a Carnot power cycle with maximum and minimum temperatures of 750 K and 300 K, respectively. The heat transfer to the air during the isothermal expansion is 60 kJ. At the end of the isothermal expansion, the pressure is 600 kPa. Assuming the ideal gas model for the air, determine (a) The thermal efficiency. (b) The Pressure and volume at the beginning of the isothermal expansion,...
During the isothermal expansion, the water is heated until it is saturated vapor from an initial...
During the isothermal expansion, the water is heated until it is saturated vapor from an initial state where the pressure is 15 bar and the quality is 25%. The vapor then expands adiabatically to a pressure of 1 bar while doing 403.8 kJ/kg of work. a.) Sketch the cycle on PV coordinates. b.) Evaluate the heat and work for each process, in kJ c.) Evaluate the thermal efficiency. SHOW ALL WORK PLZ
2. An ideal gas within a piston-cylinder assembly executes a Carnot power cycle. The isothermal compression...
2. An ideal gas within a piston-cylinder assembly executes a Carnot power cycle. The isothermal compression occurs at 300 K from 80 kPa to 110 kPa. If the thermal efficiency is 70% determine (30 points): P a. the temperature of the isothermal expansion, in K, and b. the network developed, in kJ per kmol of gas. Jooote Nmax = 1 - - - TW TA 70%=1-300x TA = 300 kdy cokela TH TH= loook - +10 A = With I...
Need Help with Thermodynamics Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at...
Need Help with Thermodynamics Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 239°C from a pressure of 5.6 bar to a pressure of 3.4 bar. Evaluate the work, in kJ/kg. ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Water, initially saturated vapor at 10.7 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the heat transfer, in kJ/kg. Kinetic and potential energy effects can be ignored.
Question 5 (10 points) Air within a piston-cylinder assembly executes a Carnot heat pump cycle. For...
Question 5 (10 points) Air within a piston-cylinder assembly executes a Carnot heat pump cycle. For the cycle, Th = 325 C and Tc = {TC) C. The thermal energy produced by the engine has a magnitude of 200 kJ per kg of air. The pressure at the start of the isothermal expansion is 325 kPa. Determine the magnitude of the net work input, in kJ per kg of air. Your Answer: Answer
Note - Please be clear and thorough in your explanation. On the graphs, PLEASE show the...
Note - Please be clear and thorough in your explanation. On the
graphs, PLEASE show the position of states relative to the critical
point, saturation lines and isotherms or isobars as appropriate
along with the path for any processes. Also, could you explain what
data table you used and why. Thanks!!
Two kilograms of water execute a Carnot power cycle. During the
isothermal expansion, the water is heated until it is a saturated
vapor from an initial state where the...
Problem 6.016 Two pounds mass of water in a piston-cylinder assembly, initially a saturated liquid at...
Problem 6.016 Two pounds mass of water in a piston-cylinder assembly, initially a saturated liquid at 35 Ib/in, undergoes a constant pressure, internally reversible expansion to x 90%. For this reversible process, determine the work by integrating p dV and the heat transfer by integrating T dS, each Btu.
PLEASE ANSWER THIS Thermodynamics. Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at...
PLEASE ANSWER THIS Thermodynamics. Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 202°C from a pressure of 9.9 bar to a pressure of 1.7 bar. Evaluate the work, in kJ/kg.
*Problem 3.094 SI Air contained in a piston-cylinder assembly undergoes the power cycle shown in the...
*Problem 3.094 SI Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below 3.0 Isothermal process (bar) 1.4 0 0 1.0 2.142857142857 v (m3/kg) Assuming ideal gas behavior for the air, evaluate the thermal efficiency of the cycle. 1%
Water vapor initially at 10 bara and 400°C is contained within a piston-cylinder assembly. The water...
Water vapor initially at 10 bara and 400°C is contained within a piston-cylinder assembly. The water is cooled at constant volume until its temperature is 150°C. The water is then condensed isothermally to saturated liquid. Sketch the process in T-v coordinates. Clearly label the three states. For the water as the system, (a) write the symbolic equation for the specific work (and simplify), w; and (b) evaluate the specific work, in kJ/kg.
Problem 2:2* (Carnot Cycle Application) Two kilograms of air within a piston-cylinder assembly execute a Carnot power cycle with maximum and minimum temperatures of 750 K and 300 K, respectively. The heat transfer to the air during the isothermal expansion is 60 kJ. At the end of the isothermal expansion, the pressure is 600 kPa. Assuming the ideal gas model for the air, determine (a) The thermal efficiency. (b) The Pressure and volume at the beginning of the isothermal expansion,...
2. An ideal gas within a piston-cylinder assembly executes a Carnot power cycle. The isothermal compression occurs at 300 K from 80 kPa to 110 kPa. If the thermal efficiency is 70% determine (30 points): P a. the temperature of the isothermal expansion, in K, and b. the network developed, in kJ per kmol of gas. Jooote Nmax = 1 - - - TW TA 70%=1-300x TA = 300 kdy cokela TH TH= loook - +10 A = With I...
Question 5 (10 points) Air within a piston-cylinder assembly executes a Carnot heat pump cycle. For the cycle, Th = 325 C and Tc = {TC) C. The thermal energy produced by the engine has a magnitude of 200 kJ per kg of air. The pressure at the start of the isothermal expansion is 325 kPa. Determine the magnitude of the net work input, in kJ per kg of air. Your Answer: Answer
Note - Please be clear and thorough in your explanation. On the
graphs, PLEASE show the position of states relative to the critical
point, saturation lines and isotherms or isobars as appropriate
along with the path for any processes. Also, could you explain what
data table you used and why. Thanks!!
Two kilograms of water execute a Carnot power cycle. During the
isothermal expansion, the water is heated until it is a saturated
vapor from an initial state where the...
Problem 6.016 Two pounds mass of water in a piston-cylinder assembly, initially a saturated liquid at 35 Ib/in, undergoes a constant pressure, internally reversible expansion to x 90%. For this reversible process, determine the work by integrating p dV and the heat transfer by integrating T dS, each Btu.
*Problem 3.094 SI Air contained in a piston-cylinder assembly undergoes the power cycle shown in the figure below 3.0 Isothermal process (bar) 1.4 0 0 1.0 2.142857142857 v (m3/kg) Assuming ideal gas behavior for the air, evaluate the thermal efficiency of the cycle. 1%
