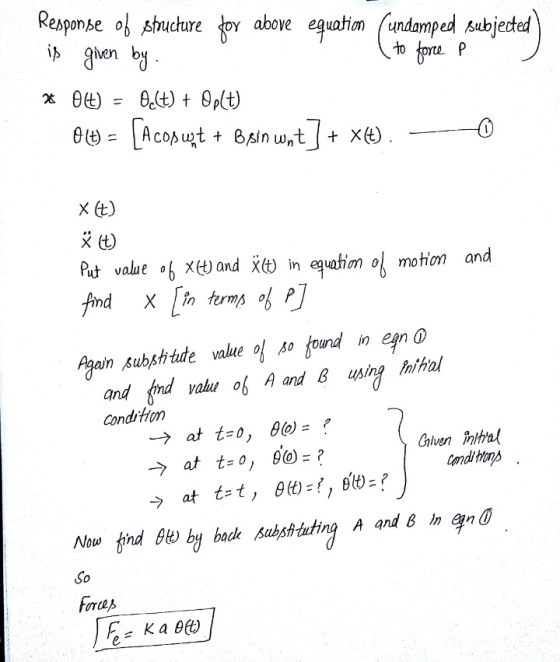

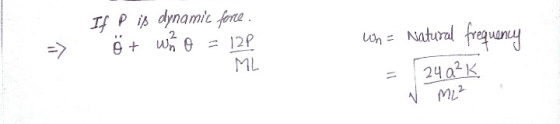

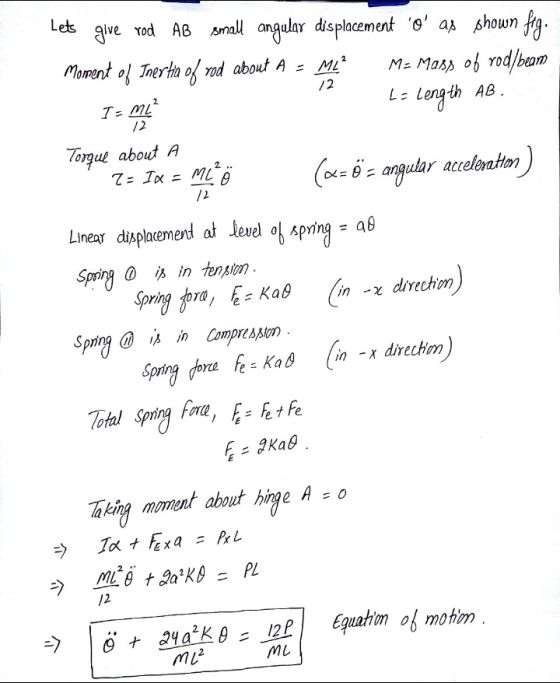

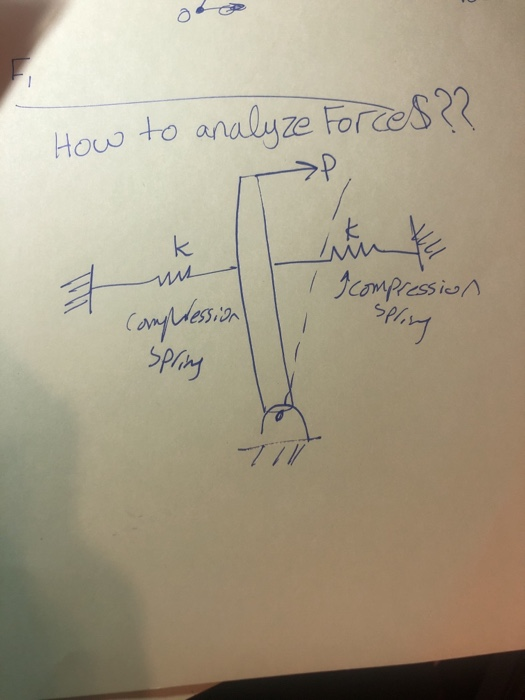

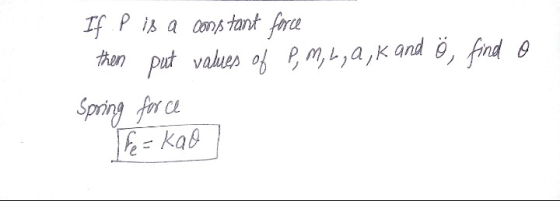

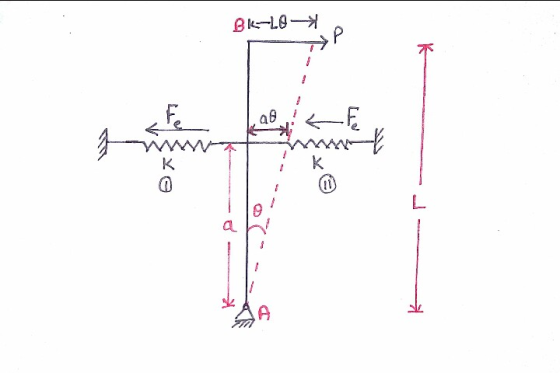

How do we find the forces on such a system and what are the direction of springs forces Hous to analyze Forces? če s...

Question

Question

How do we find the forces on such a system and what are the direction of springs forces

engineering Civil-Engineering
