3(20%) Assume a message signal is given by m(t) = 4 cos(2π//) + cos(4π.t). Let x (t)-5m(t) cos(2t f t) + 5m(t) sin(...
3(20%) Assume a message signal is given by m(t) = 4 cos(2π//) + cos(4π.t). Let x...

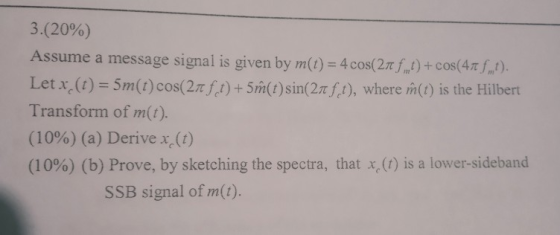

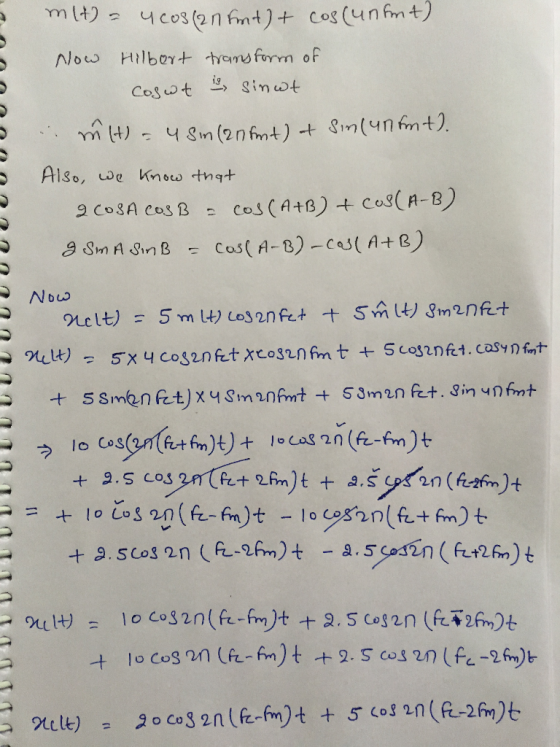

3(20%) Assume a message signal is given by m(t) = 4 cos(2π//) + cos(4π.t). Let x (t)-5m(t) cos(2t f t) + 5m(t) sin( 2 fct), where m(t) İs the Hilbert Transform of m(t). (10%) (a) Derive x(t) (10%) (b) Prove, by sketching the spectra, that x(t) is a lower-sideband SSB signal of m(t).
When the message signal m (t) =cos (2π fmt) and the carrier signal is c(t)=cos (2π fct) , fm<&...
When the message signal m (t) =cos (2π fmt) and the
carrier signal is c(t)=cos (2π fct) ,
fm<< fc,
The modulated DSB-SC signal
SDSB-SC=m(t)cos(2πfct) is generated, and only
the upper sideband
To generate and transmit the SSB signal. As shown in the figure
below, the receiver is a local oscillator
cosine signal to the received signal and passes it through a
low-pass filter. Answer the following questions.
(a) Draw the waveform of DSB-SC modulated signal
SDSB-SC(t）
(b)Find the result...
Prob 5 (continued): with message signal m(t): m(t) 10 cos(20mt) + 6 sin(60rt) (8 points) Write...
Prob 5 (continued): with message signal m(t): m(t) 10 cos(20mt) + 6 sin(60rt) (8 points) Write an equation (do not spend time simplifying! can be in terms of both sin0 and cos0 functions) for the LSB-SSB signal if the message signal is modulated by carrier at 100 Hz: e. (6 points) Sketch the double-sided magnitude spectrum for the LSB-SSB signal (you do not necessarily need the equation from part (d) to draw this, you can go off your knowledge of...
1. Given a baseband signal m(t) sin(1000mt) cos(3000nt) + cos(3700nt a. Sketch the spectrum of m(...
1. Given a baseband signal m(t) sin(1000mt) cos(3000nt) + cos(3700nt a. Sketch the spectrum of m(t) (Hint. sin(a) cos(b) 0.5 sin(a +b) +0.5sin a-b)) b. Sketch the spectrum of DSB-CS signal m(t)cos(10000mt) C ldentify the upper sideband {USB) and lower sideband (LSB) spectra d. Give the black diagram of the receiver to receive DSB-CS signal in (b). 2. baseband signal m(r)--0.5 + Σ..小(t-n)-u(t-0.5-n)] where ult) is the Given unit step function, an amplitude modulated signal is as SAM 107+ m(0cos...
Power Spectrum of AM A baseband message signal is given byWn (t)-5 cos 2π 2500t +...
Power Spectrum of AM A baseband message signal is given byWn (t)-5 cos 2π 2500t + 4 cos 2π 5500. An AM waveform carrying this message g(t)-50[1 + μ m(t) mp]cos 2π5x 109, where mp s the peak value of m(t a) Plot (by hand) the power spectrum S (f) of the AM waveform g(t) with 0.6 (You can get help with this from the handout A Power Spectrum Primer. See the section "Finding the Power Spectrum of a Periodic...
The message signal m (t) = Am cos (2nf, t) is used to generate the VSB signal ( 1-α)AμΑ, aAm A cos [2T(fe+fm)t]+ 2...
The message signal m (t) = Am cos (2nf, t) is used to generate the VSB signal ( 1-α)AμΑ, aAm A cos [2T(fe+fm)t]+ 2 cos [2T(f-m)t], where 0<a< 1. s(t) 2 Find the expression of s(t), where s(t) is the baseband representation of s(t)
The message signal m (t) = Am cos (2nf, t) is used to generate the VSB signal ( 1-α)AμΑ, aAm A cos [2T(fe+fm)t]+ 2 cos [2T(f-m)t], where 0
Please finish these questions. Thank you Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is giv...
Please finish these questions. Thank you
Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is given by m()-1+sin(2 fm) where fm-10 Hz. Sketch the signal m(t) in time domain b) Find the Fourier transform M(jo) of m(t) and sketch the magnitude of M(jo) c) If m(t) is amplitude modulated with a carrier signal by x(t)-m(t)cos(27r f,1) (where fe-1000 Hz), sketch...
Suppose you wish to sample an amplitude modulated signal x(t)-m(t) cos(Q,t) where m(1) is the message...
Suppose you wish to sample an amplitude modulated signal x(t)-m(t) cos(Q,t) where m(1) is the message signal and Ω,-2π 10 (rad/sec) is the carrier frequency 8.6 a) If the message is anacusic signal with frequencies in a band of [0, 22] kHz, what would be maximum frequency present in x(t)?
For the baseband signal m(t) = cos(1000πt) cos(3000πt), do the following. (a) Sketch the spectrum of...
For the baseband signal m(t) = cos(1000πt) cos(3000πt), do the following. (a) Sketch the spectrum of m(t) (b) Sketch the spectrum of the DSB-SC signal m(t)cos(10, 000πt). (c) Identify the upper sideband (USB) and the lower sideband (LSB) spectra. (d) Identify the frequencies in the baseband, and the corresponding frequencies in the DSB-SC, USB and LSB spectra. Explain the nature of frequency shifting in each case.
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier...
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier signal e(t) A cos(700π) using DSB-SC (dual side band, suppressed carrier) modulations Find the time domain and frequency domain representation of the modulated signal and plot the spectrum (Fourier transform) of the modulated signal. What is power content of the modulated signal?
3(20%) Assume a message signal is given by m(t) = 4 cos(2π//) + cos(4π.t). Let x (t)-5m(t) cos(2t f t) + 5m(t) sin( 2 fct), where m(t) İs the Hilbert Transform of m(t). (10%) (a) Derive x(t) (10%) (b) Prove, by sketching the spectra, that x(t) is a lower-sideband SSB signal of m(t).
When the message signal m (t) =cos (2π fmt) and the
carrier signal is c(t)=cos (2π fct) ,
fm<< fc,
The modulated DSB-SC signal
SDSB-SC=m(t)cos(2πfct) is generated, and only
the upper sideband
To generate and transmit the SSB signal. As shown in the figure
below, the receiver is a local oscillator
cosine signal to the received signal and passes it through a
low-pass filter. Answer the following questions.
(a) Draw the waveform of DSB-SC modulated signal
SDSB-SC(t）
(b)Find the result...
Prob 5 (continued): with message signal m(t): m(t) 10 cos(20mt) + 6 sin(60rt) (8 points) Write an equation (do not spend time simplifying! can be in terms of both sin0 and cos0 functions) for the LSB-SSB signal if the message signal is modulated by carrier at 100 Hz: e. (6 points) Sketch the double-sided magnitude spectrum for the LSB-SSB signal (you do not necessarily need the equation from part (d) to draw this, you can go off your knowledge of...
1. Given a baseband signal m(t) sin(1000mt) cos(3000nt) + cos(3700nt a. Sketch the spectrum of m(t) (Hint. sin(a) cos(b) 0.5 sin(a +b) +0.5sin a-b)) b. Sketch the spectrum of DSB-CS signal m(t)cos(10000mt) C ldentify the upper sideband {USB) and lower sideband (LSB) spectra d. Give the black diagram of the receiver to receive DSB-CS signal in (b). 2. baseband signal m(r)--0.5 + Σ..小(t-n)-u(t-0.5-n)] where ult) is the Given unit step function, an amplitude modulated signal is as SAM 107+ m(0cos...
Power Spectrum of AM A baseband message signal is given byWn (t)-5 cos 2π 2500t + 4 cos 2π 5500. An AM waveform carrying this message g(t)-50[1 + μ m(t) mp]cos 2π5x 109, where mp s the peak value of m(t a) Plot (by hand) the power spectrum S (f) of the AM waveform g(t) with 0.6 (You can get help with this from the handout A Power Spectrum Primer. See the section "Finding the Power Spectrum of a Periodic...
The message signal m (t) = Am cos (2nf, t) is used to generate the VSB signal ( 1-α)AμΑ, aAm A cos [2T(fe+fm)t]+ 2 cos [2T(f-m)t], where 0<a< 1. s(t) 2 Find the expression of s(t), where s(t) is the baseband representation of s(t)
The message signal m (t) = Am cos (2nf, t) is used to generate the VSB signal ( 1-α)AμΑ, aAm A cos [2T(fe+fm)t]+ 2 cos [2T(f-m)t], where 0
Please finish these questions. Thank you
Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is given by m()-1+sin(2 fm) where fm-10 Hz. Sketch the signal m(t) in time domain b) Find the Fourier transform M(jo) of m(t) and sketch the magnitude of M(jo) c) If m(t) is amplitude modulated with a carrier signal by x(t)-m(t)cos(27r f,1) (where fe-1000 Hz), sketch...
Suppose you wish to sample an amplitude modulated signal x(t)-m(t) cos(Q,t) where m(1) is the message signal and Ω,-2π 10 (rad/sec) is the carrier frequency 8.6 a) If the message is anacusic signal with frequencies in a band of [0, 22] kHz, what would be maximum frequency present in x(t)?
The message signal m(t) = 2 cos 400t + 3 sin(800t + 22) modulates the carrier signal e(t) A cos(700π) using DSB-SC (dual side band, suppressed carrier) modulations Find the time domain and frequency domain representation of the modulated signal and plot the spectrum (Fourier transform) of the modulated signal. What is power content of the modulated signal?
