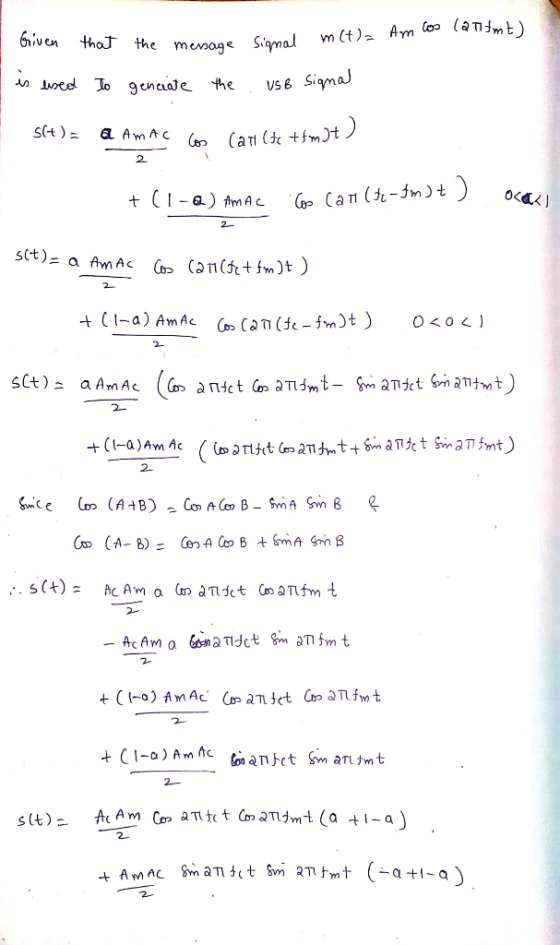

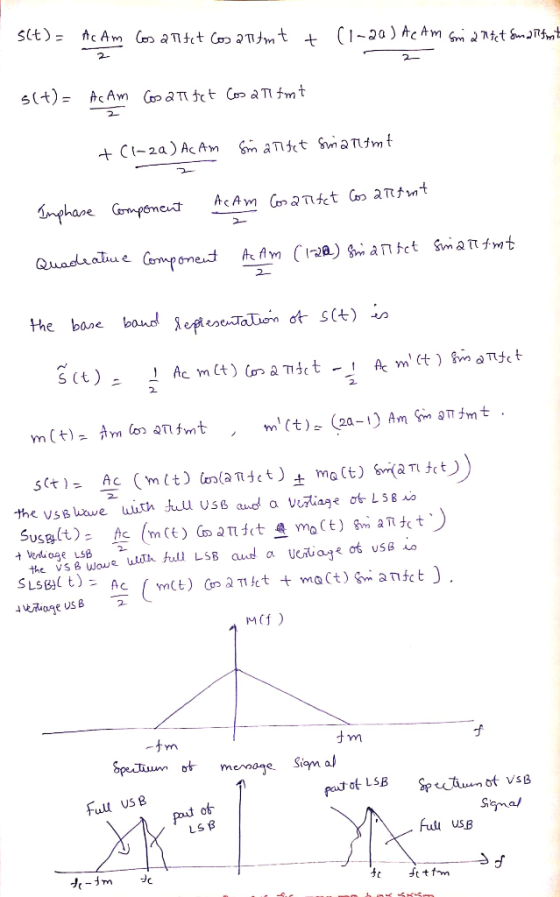

![The message signal m (t) = Am cos (2nf, t) is used to generate the VSB signal ( 1-α)AμΑ, aAm A cos [2T(fe+fm)t]+ 2 cos [2T(f-](http://img.homeworklib.com/images/a93d61fa-59f1-4ff7-a61d-741d619efdd4.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
The message signal m (t) = Am cos (2nf, t) is used to generate the VSB signal ( 1-α)AμΑ, aAm A cos [2T(fe+fm)t]+ 2...
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amp...
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amplitude spectrum, SPM(f), is shown below: Amplitude spectrum of the frequency modulated signal 2 -2 5000 4000 3000 2000 -1000 1000 2000 3000 4000 5000 frequency f [Hz] a) What is the carrier frequency fe? b) What is the message frequency fm c) What is the FM modulation index Bf? Is it a narrowband or a wideband signal? d) Using Carson's rule, estimate the transmission...
4. The single tone modulating signal m(t)-A, cos 2π.fmt is used to generate the VSB signal where ...
4. The single tone modulating signal m(t)-A, cos 2π.fmt is used to generate the VSB signal where k is a constant, less than unity, representing the attenuation of the upper side frequency. If we represent this VSB signal as a quadrature modulator x(t)-Am(t) cos2r ft A.m,(1) sin 2rft, what is mi(t) and m2()? (20pts)
4. The single tone modulating signal m(t)-A, cos 2π.fmt is used to generate the VSB signal where k is a constant, less than unity, representing the...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modula...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
1. Given a baseband signal m(t) sin(1000mt) cos(3000nt) + cos(3700nt a. Sketch the spectrum of m(...
1. Given a baseband signal m(t) sin(1000mt) cos(3000nt) + cos(3700nt a. Sketch the spectrum of m(t) (Hint. sin(a) cos(b) 0.5 sin(a +b) +0.5sin a-b)) b. Sketch the spectrum of DSB-CS signal m(t)cos(10000mt) C ldentify the upper sideband {USB) and lower sideband (LSB) spectra d. Give the black diagram of the receiver to receive DSB-CS signal in (b). 2. baseband signal m(r)--0.5 + Σ..小(t-n)-u(t-0.5-n)] where ult) is the Given unit step function, an amplitude modulated signal is as SAM 107+ m(0cos...
Power Spectrum of AM A baseband message signal is given byWn (t)-5 cos 2π 2500t +...
Power Spectrum of AM A baseband message signal is given byWn (t)-5 cos 2π 2500t + 4 cos 2π 5500. An AM waveform carrying this message g(t)-50[1 + μ m(t) mp]cos 2π5x 109, where mp s the peak value of m(t a) Plot (by hand) the power spectrum S (f) of the AM waveform g(t) with 0.6 (You can get help with this from the handout A Power Spectrum Primer. See the section "Finding the Power Spectrum of a Periodic...
Please finish these questions. Thank you Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is giv...
Please finish these questions. Thank you
Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is given by m()-1+sin(2 fm) where fm-10 Hz. Sketch the signal m(t) in time domain b) Find the Fourier transform M(jo) of m(t) and sketch the magnitude of M(jo) c) If m(t) is amplitude modulated with a carrier signal by x(t)-m(t)cos(27r f,1) (where fe-1000 Hz), sketch...
1. FM modulation. Consider a message signal m(t)-(2nt and a carrier wave c(t)-cos(400rt) (a) (20 points)...
1. FM modulation. Consider a message signal m(t)-(2nt and a carrier wave c(t)-cos(400rt) (a) (20 points) Derive the FM modulated signal s(t) for ky-2 (b) (25 points) Find the Fourier transform, S(), of s(t) (Sketch to scale). (c) (5 points) What is the bandwidth of the modulated signal s(t).
Consider an AM system. The message signal is given by cos(1000t) volts. The modulated signal is (0.5+acos(1000m))cos(2π.) volts, where α is a positive coefficient, and fe is the carrier frequency. (a...
Consider an AM system. The message signal is given by cos(1000t) volts. The modulated signal is (0.5+acos(1000m))cos(2π.) volts, where α is a positive coefficient, and fe is the carrier frequency. (a) Determine the value of α when the modulation index is 100%. (b) Determine the value of α when the modulation index is 50%. (c) Determine the value of α when the modulation index is 200%. (6 marks) Continue from (1) and suppose α-05. Sketch the spectrum of the transmitted...
3(20%) Assume a message signal is given by m(t) = 4 cos(2π//) + cos(4π.t). Let x (t)-5m(t) cos(2t f t) + 5m(t) sin(...
3(20%) Assume a message signal is given by m(t) = 4 cos(2π//) + cos(4π.t). Let x (t)-5m(t) cos(2t f t) + 5m(t) sin( 2 fct), where m(t) İs the Hilbert Transform of m(t). (10%) (a) Derive x(t) (10%) (b) Prove, by sketching the spectra, that x(t) is a lower-sideband SSB signal of m(t).
3(20%) Assume a message signal is given by m(t) = 4 cos(2π//) + cos(4π.t). Let x (t)-5m(t) cos(2t f t) + 5m(t) sin( 2 fct), where m(t)...
FM spectrum: A message signal m(t) (shown below) is used to modulate a carrier with frequency (fc...
Solve using Matlab:
FM spectrum: A message signal m(t) (shown below) is used to modulate a carrier with frequency (fc) in a FM system with kr 90, find and plot the FM signal s(t) in both time and frequency domains. Use the value of fc-1000. m(t) (V) 3.5 t (ms) 250 [Note that m(t) is zero for t<0 and t>250 ms
FM spectrum: A message signal m(t) (shown below) is used to modulate a carrier with frequency (fc) in a...
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amplitude spectrum, SPM(f), is shown below: Amplitude spectrum of the frequency modulated signal 2 -2 5000 4000 3000 2000 -1000 1000 2000 3000 4000 5000 frequency f [Hz] a) What is the carrier frequency fe? b) What is the message frequency fm c) What is the FM modulation index Bf? Is it a narrowband or a wideband signal? d) Using Carson's rule, estimate the transmission...
4. The single tone modulating signal m(t)-A, cos 2π.fmt is used to generate the VSB signal where k is a constant, less than unity, representing the attenuation of the upper side frequency. If we represent this VSB signal as a quadrature modulator x(t)-Am(t) cos2r ft A.m,(1) sin 2rft, what is mi(t) and m2()? (20pts)
4. The single tone modulating signal m(t)-A, cos 2π.fmt is used to generate the VSB signal where k is a constant, less than unity, representing the...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
1. Given a baseband signal m(t) sin(1000mt) cos(3000nt) + cos(3700nt a. Sketch the spectrum of m(t) (Hint. sin(a) cos(b) 0.5 sin(a +b) +0.5sin a-b)) b. Sketch the spectrum of DSB-CS signal m(t)cos(10000mt) C ldentify the upper sideband {USB) and lower sideband (LSB) spectra d. Give the black diagram of the receiver to receive DSB-CS signal in (b). 2. baseband signal m(r)--0.5 + Σ..小(t-n)-u(t-0.5-n)] where ult) is the Given unit step function, an amplitude modulated signal is as SAM 107+ m(0cos...
Power Spectrum of AM A baseband message signal is given byWn (t)-5 cos 2π 2500t + 4 cos 2π 5500. An AM waveform carrying this message g(t)-50[1 + μ m(t) mp]cos 2π5x 109, where mp s the peak value of m(t a) Plot (by hand) the power spectrum S (f) of the AM waveform g(t) with 0.6 (You can get help with this from the handout A Power Spectrum Primer. See the section "Finding the Power Spectrum of a Periodic...
Please finish these questions. Thank you
Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is given by m()-1+sin(2 fm) where fm-10 Hz. Sketch the signal m(t) in time domain b) Find the Fourier transform M(jo) of m(t) and sketch the magnitude of M(jo) c) If m(t) is amplitude modulated with a carrier signal by x(t)-m(t)cos(27r f,1) (where fe-1000 Hz), sketch...
1. FM modulation. Consider a message signal m(t)-(2nt and a carrier wave c(t)-cos(400rt) (a) (20 points) Derive the FM modulated signal s(t) for ky-2 (b) (25 points) Find the Fourier transform, S(), of s(t) (Sketch to scale). (c) (5 points) What is the bandwidth of the modulated signal s(t).
Consider an AM system. The message signal is given by cos(1000t) volts. The modulated signal is (0.5+acos(1000m))cos(2π.) volts, where α is a positive coefficient, and fe is the carrier frequency. (a) Determine the value of α when the modulation index is 100%. (b) Determine the value of α when the modulation index is 50%. (c) Determine the value of α when the modulation index is 200%. (6 marks) Continue from (1) and suppose α-05. Sketch the spectrum of the transmitted...
3(20%) Assume a message signal is given by m(t) = 4 cos(2π//) + cos(4π.t). Let x (t)-5m(t) cos(2t f t) + 5m(t) sin( 2 fct), where m(t) İs the Hilbert Transform of m(t). (10%) (a) Derive x(t) (10%) (b) Prove, by sketching the spectra, that x(t) is a lower-sideband SSB signal of m(t).
3(20%) Assume a message signal is given by m(t) = 4 cos(2π//) + cos(4π.t). Let x (t)-5m(t) cos(2t f t) + 5m(t) sin( 2 fct), where m(t)...
Solve using Matlab:
FM spectrum: A message signal m(t) (shown below) is used to modulate a carrier with frequency (fc) in a FM system with kr 90, find and plot the FM signal s(t) in both time and frequency domains. Use the value of fc-1000. m(t) (V) 3.5 t (ms) 250 [Note that m(t) is zero for t<0 and t>250 ms
FM spectrum: A message signal m(t) (shown below) is used to modulate a carrier with frequency (fc) in a...
