Question

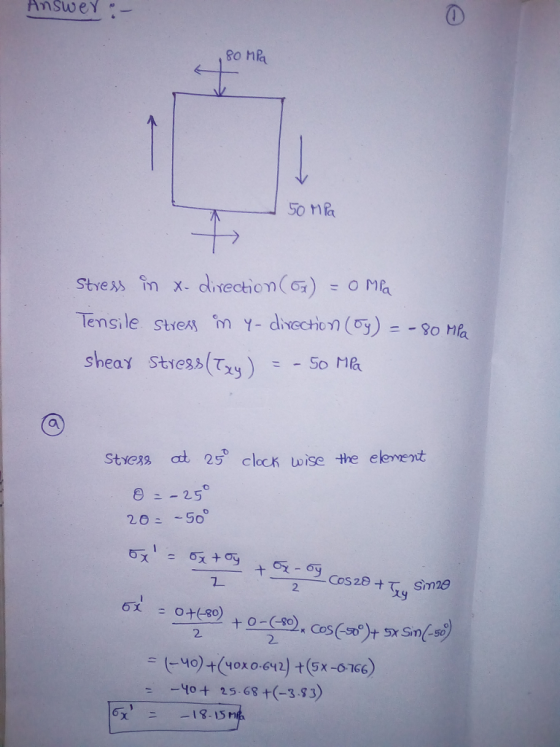

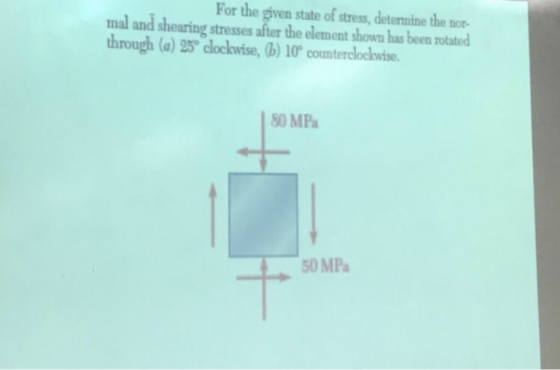

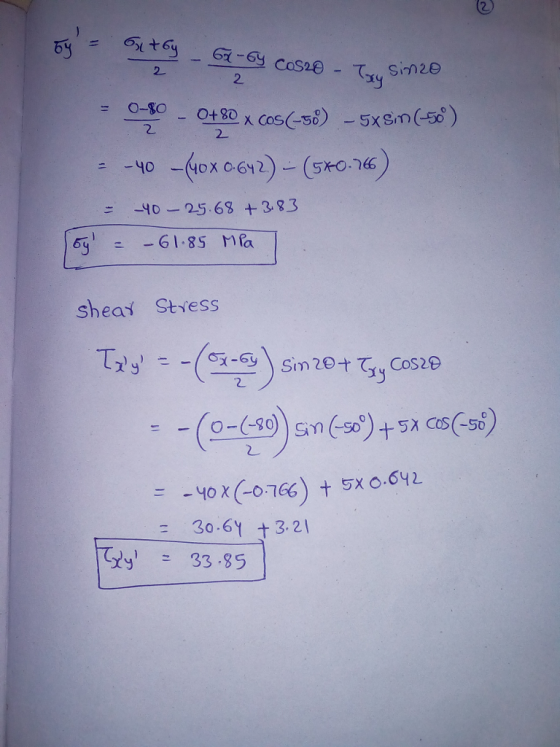

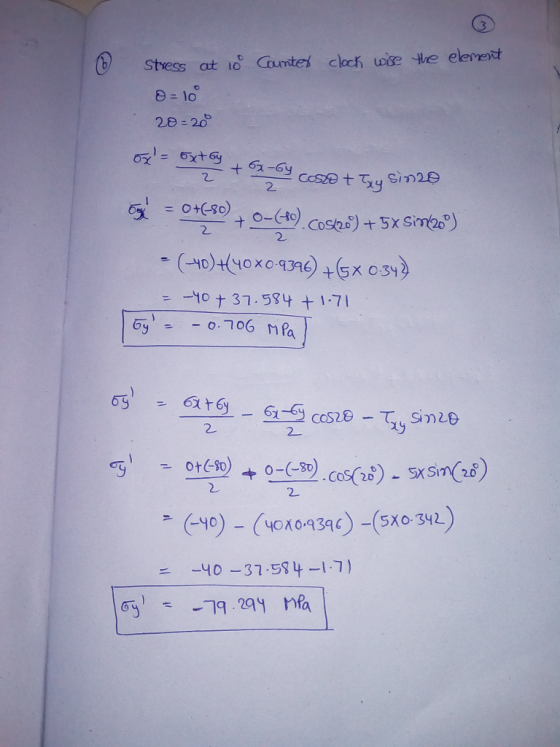

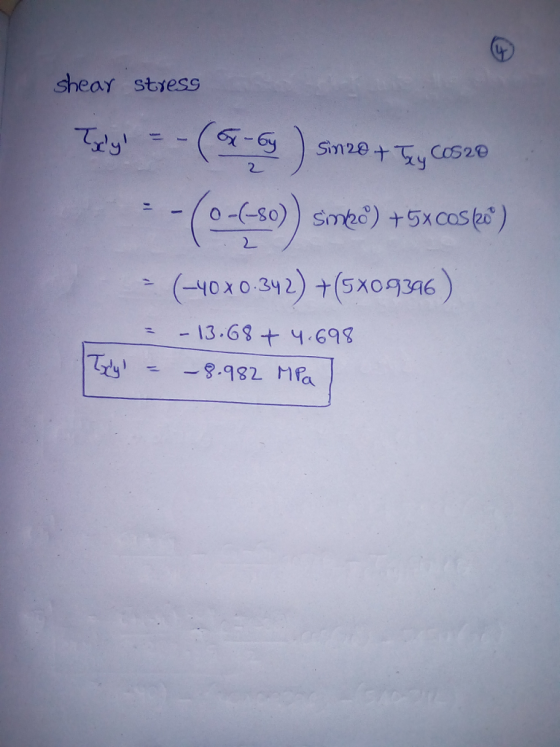

For the given state of stress, deternine the nor mal and shearing stresses after the elenent shown has been rotated through (a) 25 clockwise, (b) 10 counterclockwise 80 MPa 50 MPa
0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
For the given state of stress, deternine the nor mal and shearing stresses after the elenent shown has been rotated...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • THE FOLLOWING PROBLEMS ARE TO BE SOLVED WITH A COMPUTER. Problem 1 A state of plane...

    THE FOLLOWING PROBLEMS ARE TO BE SOLVED WITH A COMPUTER. Problem 1 A state of plane stress is defined by the stress components 0, 0, and I associated with the element shown in Figure (a). i. Write a computer program that can be used to calculate the stress components 6, 5, and try" associated with the element after it has rotated through an angle about the z axis as shown in Figure (b). 1 F: Use this program to solve...

  • Solve using Mohr's Circle 90 MPa 30 MPa 60 MPa Fig. P7.14 7.13 through 7.16 For...

    Solve using Mohr's Circle 90 MPa 30 MPa 60 MPa Fig. P7.14 7.13 through 7.16 For the given state of stress, determine the normal and shearing stresses after the element shown has been rotated through (a) 25° clockwise, (b) 10° counterclockwise. 7.36 Solve Prob. 7.14, using Mohr's circle.

  • For the state of stress at a point shown, determine the stresses obtained by rotating the...

    For the state of stress at a point shown, determine the stresses obtained by rotating the given x and y planes by 66.3 degrees counter clockwise. Show the stresses on the rotated planes. Verify the first invariant of stresses. What are the shear stresses on these rotated planes? 90 MPa 60 MPa 20 MPa

  • For the given state of stress, determine the normal and shearing stresses exerted on the oblique...

    For the given state of stress, determine the normal and shearing stresses exerted on the oblique face of the shaded triangular element shown. Use a method of analysis based on the equilibrium of that element. Take X = 100 MPa. 60 MPa 45 MPa The normal stress exerted on the oblique face of the shaded triangular element is MPa. The shear stress exerted on the oblique face of the shaded triangular element is MPa.

  • Required information Solve the following problems using Mohr's circle Given: P 84 MPa P 50 MPa...

    Required information Solve the following problems using Mohr's circle Given: P 84 MPa P 50 MPa Draw Mohr's circle and use it to determine the normal and shearing stresses after the element shown has been rotated through 25 clockwise. (Round the final answers to two decimal places.) Normal stresses: MPa (+ tensile; - compressive) Ox' Gy[ MPa (+tensile; - compressive) Shearing stress: Txy MPa (+CCW on the positive X-face)

  • Do not round intermediate calculations. Give your final answer(s) to three significant figures. For the given...

    Do not round intermediate calculations. Give your final answer(s) to three significant figures. For the given state of stress, determine the normal and shearing stresses after the element shown has been rotated through 21° clockwise. 93 MPa 28 MPa 67 MPa MPa MPa ry

  • Question 1: The state of plane stress shown occurs at a critical point of a steel...

    Question 1: The state of plane stress shown occurs at a critical point of a steel (@y 250MPa ) machine componenL 60 MPa Draw the Mohr's Cercle Determine the Principal Stresses Deternine the factor of safety with respect to yield, using (a) the maximum-shearing stress criterion, and (b) the maximum-distortion-energy criterion. 90 MPa 25 MPao

  • 7.13 For the given stress state, determine the normal and shear forces after turning the shown...

    7.13 For the given stress state, determine the normal and shear forces after turning the shown element a) 25 ° clockwise, b) 10 ° counterclockwise 7.13 a 7.16 Para el estado de esfuerzo dado, determine los esfuerzos normal y cortante después de girar el elemento mostrado a) 25° en el sentido de las mane- cillas del reloj. b) 10° en el sentido contrario a las manecillas del reloj S0 MPa 50 MPa Figura P7.13

  • Q4. (a) Plot a Mohr circle for the plane stress element which has been rotated 40...

    Q4. (a) Plot a Mohr circle for the plane stress element which has been rotated 40 degrees in the anti-clockwise direction as shown in Figure Q4(a). (8 marks) (b) By using Mohr Circle, determine and sketch; all the stresses (Ox, O, and tyy) of the same element in the orientation as shown in Figure Q4(b). (4 marks) (i) the principal stress and its orientation. (4 marks) (i) the maximum shear stress, the corresponding normal stress, and its orientation. (4 marks)...

  • Given the state of stress for the element below, determine the shear and normal stresses if...

    Given the state of stress for the element below, determine the shear and normal stresses if the element is rotated 50° counterclockwise. Use Mohr's circle to solve. iXy Answer(s): xy xy xy xy
