Maxwell’s equations Show that for linear and isotropic media, and for fields that are sinusoidal function of the time....

Question

Question

Maxwell’s equations

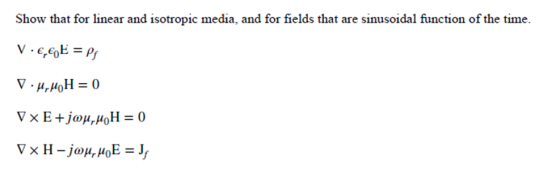

Show that for linear and isotropic media, and for fields that are sinusoidal function of the time.

science Advanced-Physics

Answer 1

Answer #1

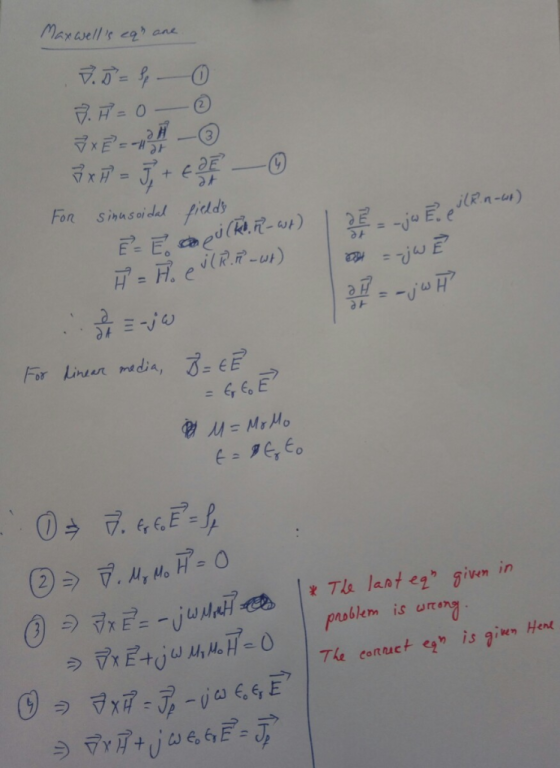

Maxsellr c2 ane 하已ーみーー(3) For sinaseidl pidds 2 praklem is urng

Answer 2

Similar Homework Help Questions

Use Maxwell's Equations to derive a decoupled set of wave equations for electric and magnetic fields...

Use Maxwell's Equations to derive a decoupled set of wave equations for electric and magnetic fields in a linear, homogeneous, isotropic media characterized by (µ, ε, σ) in the absence of sources. Then modify these equations to describe waves propagating in free space. Show all work, please
B-Waves. Starting with Maxwell’s equations, derive the 3-D wave equation for magnetic fields. Gauss's law for...

B-Waves. Starting with Maxwell’s equations, derive the 3-D wave equation for magnetic fields. Gauss's law for electric fields Gauss's law for magnetic fields: Faraday's law: (11-31a) (11-31b) (11-31c) OE Ampere's law (11-31d)
Show that solutions to Maxwell’s equations (for E⃗ and B⃗ ) satisfy the wave equation, thus...

Show that solutions to Maxwell’s equations (for E⃗ and B⃗ ) satisfy the wave equation, thus predicting that the solutions (EM waves) are in fact traveling waves.With what speed do the waves travel?

Electromagnetic 2. Two loss less, linear and isotropic media are separated from each other by y=Osurface....

Electromagnetic 2. Two loss less, linear and isotropic media are separated from each other by y=Osurface. First medium (v<0) has £1 = 9€0 and 41 = Ho, and the second medium (v>0) has 62 = 4€, and uz = Mo electric permittivities and magnetic permeabilities. v=0 surface is knownto be sourcefree (i.e. with out surface charges and surface currents). IFĒ1 = (@240 +ây160) V/m and B1 = (ây10 – â40) mT are given, find Ē, and B, in the second...
Please Show Work Clearly. 12.3 Time-Harmonic Wave Equation. Using the source-free Maxwell's equations, show that a...

Please Show Work Clearly. 12.3 Time-Harmonic Wave Equation. Using the source-free Maxwell's equations, show that a Helmholtz equation can be obtained in terms of the magnetic vector potential. Use the definition B = V X A and a simple medium (linear, isotropic, homogeneous material). Justify the choice of the divergence of A.
2. [5 pts] Show that for an isotropic linear elastic material subjected to a biaxial stress...

2. [5 pts] Show that for an isotropic linear elastic material subjected to a biaxial stress state, the relationship between stress and strain is such that: Of = (x+vey)}; Oy = (byt veze; O Txy = 207vs Yxy 1-12 1-12 1 Ιαν

Boundary conditions of Time-varying electric fields between two media.

Boundary conditions of Time-varying electric fields between two media.

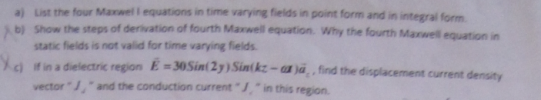

a) List the four Maxwel I equations in time varying fields in point form and in...
