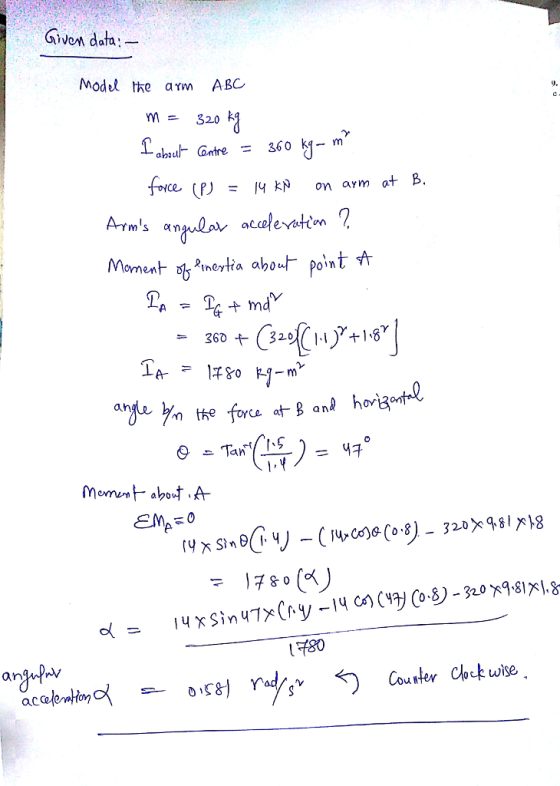

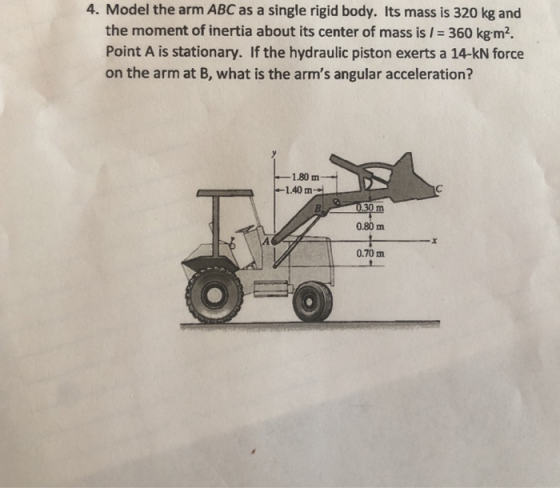

4. Model the arm ABC as a single rigid body. Its mass is 320 kg and the moment of inertia about its center of mass...
The moment of inertia of the human body about an axis through its center of mass is important in the application of bio...
The moment of inertia of the human body about an axis through
its center of mass is important in the application of biomechanics
to sports such as diving and gymnastics. We can measure the body's
moment of inertia in a particular position while a person remains
in that position on a horizontal turntable, with the bodys center
of mass on the turntable's rotational axis. The turntable with the
person on it is then accelerated from rest by a torque that...
A rigid body, with its center of mass located at the position r G = −...
A rigid body, with its center of mass located at the position r G = − 2.76 I ^ + 0.96 J ^ (in), and rotating about the origin A, has a mass of m = 8.24lbm and a moment of inertia about its center of mass of I G = 11.3290 lbf in s2. At the instant shown, it has an angular velocity of θ ˙ = − 0.21 rad/s. In addition to the gravitational force acting in the...
01. Answer both parts of this question. Part-1 2D Rigid Body Dynamics The machine shown in...
01. Answer both parts of this question. Part-1 2D Rigid Body Dynamics The machine shown in Figure Q1a comprises an arm AB attached to a rotating joint at point A, which can also be elevated by a hydraulic ram. The arm has mass 100 kg and moment of inertia IG = 10 kgm about mass centre G. A fixed x-y frame is shown with its origin at point A. At the instant shown, the arm is in the horizontal position...
A rigid bar in the shape of a T has a mass of 10 kg. The T-shaped body of mass m is composed of two identical slender b...
A rigid bar in the shape of a T has a mass of 10 kg. The T-shaped body of mass m is composed of two identical slender bars welded together. End A is constrained to move in the slotted frictionless groove guided by the light frictionless roller as shown in Figure 3. The lower end of the T is released from rest in the vertical plane in the position shown, and the dimension /= 1 m. (i) Determine the location...
A grinding wheel is a uniform cylinder with a radius of 8.50 cm and a mass of 0.480 kg. Calculate its moment of inertia about its center.
A grinding wheel is a uniform cylinder with a radius of 8.50 cm and a mass of 0.480 kg. Calculate its moment of inertia about its center.
We wish to determine the moment at the shoulder that is required to perform the arm...
We wish to determine the moment at the shoulder that is required to perform the arm motion (shoulder abduction) depicted in Figure 3 below. This motion may be modelled with a simple, single- element linkage system as shown in the figure. The shoulder joint is represented by a simple pin support centred at O. The arm and the carried weight are represented as a rigid body consisting of a rod and a cuboid. In the rigid body model, the length...
A cylinder with moment of inertia I about its center of mass, mass m, and radius r has a string wrapped around it whi...
A cylinder with moment of inertia I about its center of mass, mass
m, and radius r has a string wrapped around it which is tied to the
ceiling (Figure 1) . The cylinder's vertical position as a function
of time is y(t).At time t=0 the cylinder is released from rest at a height h above
the ground.Part
BIn similar problems involving rotating bodies, you will often also
need the relationship between angular acceleration, ?, and linear acceleration, a. Find...
We Part (a) [2 marks] The angular displacement of the rigid body ranges from θ =...
We
Part (a) [2 marks]
The angular displacement of the rigid body ranges from
θ = 0° (the vertical as shown in the figure) to θ
= 135° and can be modelled using simple harmonic motion. Assuming a
rate of 20 [reps/min], write down an expression for angular
displacement, θ [rad] as a function of time, t [s]. You may assume
that the motion starts with an angular displacement of 135°.
Hint: The angular displacement, θ can be expressed as...
(Figure 1)The figure shows a simple model of a seesaw These consist of a plank/rod of mass mr and length 2x allowed to pivot freely about its center (or central axis), as shown in the diagram.
(Figure 1)The figure shows a simple model of a seesaw These consist of a plank/rod of mass mr and length 2x allowed to pivot freely about its center (or central axis), as shown in the diagram. A small sphere of mass m1 is attached to the left end of the rod, and a small sphere of mass m2 is attached to the right end. The spheres are small enough that they can be considered point particles. The gravitational force acts...
SA1. What is the moment of inertia of a solid cylinder which is to be rotated like a wheel about an axis running lengthwise through its center, if the cylinder has a mass of 1,.25 kg, a leng...
SA1. What is the moment of inertia of a solid cylinder which is to be rotated like a wheel about an axis running lengthwise through its center, if the cylinder has a mass of 1,.25 kg, a length of 3.40 m, and a radius of 0.40 m? 一01rary? // 2. mrzltot ; Σ nǐ rf nn-O-40wn 2 ニア XI 25x0402 :01 ㎏.m2 0.05 ol0 SA2. You have a meter stick which balances at the 50 cm mark. You attach a...
The moment of inertia of the human body about an axis through
its center of mass is important in the application of biomechanics
to sports such as diving and gymnastics. We can measure the body's
moment of inertia in a particular position while a person remains
in that position on a horizontal turntable, with the bodys center
of mass on the turntable's rotational axis. The turntable with the
person on it is then accelerated from rest by a torque that...
01. Answer both parts of this question. Part-1 2D Rigid Body Dynamics The machine shown in Figure Q1a comprises an arm AB attached to a rotating joint at point A, which can also be elevated by a hydraulic ram. The arm has mass 100 kg and moment of inertia IG = 10 kgm about mass centre G. A fixed x-y frame is shown with its origin at point A. At the instant shown, the arm is in the horizontal position...
A rigid bar in the shape of a T has a mass of 10 kg. The T-shaped body of mass m is composed of two identical slender bars welded together. End A is constrained to move in the slotted frictionless groove guided by the light frictionless roller as shown in Figure 3. The lower end of the T is released from rest in the vertical plane in the position shown, and the dimension /= 1 m. (i) Determine the location...
We wish to determine the moment at the shoulder that is required to perform the arm motion (shoulder abduction) depicted in Figure 3 below. This motion may be modelled with a simple, single- element linkage system as shown in the figure. The shoulder joint is represented by a simple pin support centred at O. The arm and the carried weight are represented as a rigid body consisting of a rod and a cuboid. In the rigid body model, the length...
A cylinder with moment of inertia I about its center of mass, mass
m, and radius r has a string wrapped around it which is tied to the
ceiling (Figure 1) . The cylinder's vertical position as a function
of time is y(t).At time t=0 the cylinder is released from rest at a height h above
the ground.Part
BIn similar problems involving rotating bodies, you will often also
need the relationship between angular acceleration, ?, and linear acceleration, a. Find...
We
Part (a) [2 marks]
The angular displacement of the rigid body ranges from
θ = 0° (the vertical as shown in the figure) to θ
= 135° and can be modelled using simple harmonic motion. Assuming a
rate of 20 [reps/min], write down an expression for angular
displacement, θ [rad] as a function of time, t [s]. You may assume
that the motion starts with an angular displacement of 135°.
Hint: The angular displacement, θ can be expressed as...
SA1. What is the moment of inertia of a solid cylinder which is to be rotated like a wheel about an axis running lengthwise through its center, if the cylinder has a mass of 1,.25 kg, a length of 3.40 m, and a radius of 0.40 m? 一01rary? // 2. mrzltot ; Σ nǐ rf nn-O-40wn 2 ニア XI 25x0402 :01 ㎏.m2 0.05 ol0 SA2. You have a meter stick which balances at the 50 cm mark. You attach a...
