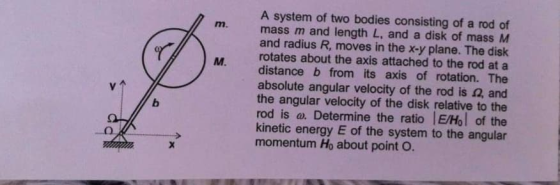

A system of two bodies consisting of a rod of mass m and length L, and a disk of mass M and radius R, moves in the x-y...
1a. A cockroach of mass m lies on the rim of a uniform disk of mass...
1a. A cockroach of mass m lies on the rim of a uniform
disk of mass 9.00 m that can rotate freely about its
center like a merry-go-round. Initially the cockroach and disk
rotate together with an angular velocity of 0.456 rad/s. Then the
cockroach walks halfway to the center of the disk.
(a) What then is the angular velocity of the
cockroach-disk system?
(b) What is the ratio
K/K0 of the new kinetic energy of the
system to its...
A uniform thin rod of length 0.95 m and mass 1.2 kg lies in a horizontal...
A uniform thin rod of length 0.95 m and mass 1.2 kg lies in a horizontal plane and rotates in that plane about a pivot at one of its ends. The rod makes one rotation every 0.39 second and rotates clockwise as viewed from above its plane of rotation. A)Find the magnitude of the rod’s angular momentum about its rotation axis, in units of kgm^/s. b) find the rotational kinetic energy, in joules, of the rod described in part (a)....
A uniform thin rod of length 0.97 m and mass 2.2 kg lies in a horizontal...
A uniform thin rod of length 0.97 m and mass 2.2 kg lies in a horizontal plane and rotates in that plane about a pivot at one of its ends. The rod makes one rotation every 0.29 second and rotates clockwise as viewed from above its plane of rotation. the magnitude of the rod's angular momentum about its rotation axis, is 14.95 kg m2/s. 1. choose the correct direction of the angular momentum vector for the situation described above a....
M,R a = 0 14. A body consisted of an uniform rod of mass m and length L, and a disk of mass M and radius R can rotate a...
M,R a = 0 14. A body consisted of an uniform rod of mass m and length L, and a disk of mass M and radius R can rotate about the axis z. At the beginning the body is in the horizontal position and rests. On the body acts only the gravity force. Determine the linear momentum P, and the angular momentum K relatively to point O when the body is in the vertical position, as shown. m. X P2=?...
A uniform solid disk of mass m = 3.06 kg and radius r = 0.200 m...
A uniform solid disk of mass m = 3.06 kg and radius r = 0.200 m rotates about a fixed axis perpendicular to its face with angular frequency 6.09 rad/s. (a) Calculate the magnitude of the angular momentum of the disk when the axis of rotation passes through its center of mass. kg · m2/s (b) What is the magnitude of the angular momentum when the axis of rotation passes through a point midway between the center and the rim?...
A uniform solid disk of mass m = 3.08 kg and radius r = 0.200 m...
A uniform solid disk of mass m = 3.08 kg and radius r = 0.200 m rotates about a fixed axis perpendicular to its face with angular frequency 6.09 rad/s. (a) Calculate the magnitude of the angular momentum of the disk when the axis of rotation passes through its center of mass. kg · m2/s (b) What is the magnitude of the angular momentum when the axis of rotation passes through a point midway between the center and the rim?...
A uniform solid disk of mass m = 2.99 kg and radius r = 0.200 m...
A uniform solid disk of mass m = 2.99 kg and radius r = 0.200 m rotates about a fixed axis perpendicular to its face with angular frequency 5.96 rad/s. (a) Calculate the magnitude of the angular momentum of the disk when the axis of rotation passes through its center of mass. kg · m2/s (b) What is the magnitude of the angular momentum when the axis of rotation passes through a point midway between the center and the rim?...
(a) A uniform disk of mass 14 kg, thickness 0.5 m, and radius 0.4 m is located at the origin, oriented with its axis al...
(a) A uniform disk of mass 14 kg, thickness 0.5 m, and radius 0.4 m is located at the origin, oriented with its axis along the y axis. It rotates clockwise around its axis when viewed from above (that is, you stand at a point on the +y axis and look toward the origin at the disk). The disk makes one complete rotation every 0.5 s. What is the rotational angular momentum of the disk? What is the rotational kinetic...
Calculate the angular momentum for a rotating disk, sphere, and rod. (a) A uniform disk of...
Calculate the angular momentum for a rotating disk, sphere, and rod. (a) A uniform disk of mass 16 kg, thickness 0.5 m, and radius 0.9 m is located at the origin, oriented with its axis along the y axis. It rotates clockwise around its axis when viewed from above (that is, you stand at a point on the +y axis and look toward the origin at the disk). The disk makes one complete rotation every 0.7 s. What is the...
A solid disk of mass m = 9.2 kg and radius R = 0.2 m is...
A solid disk of mass m = 9.2 kg and radius R = 0.2 m is rotating with a constant angular velocity of w = 38 rad/s. A thin rectangular rod with mass m2 = 3.7 kg and length L = 2R = 0.4 m begins at rest above the disk and is dropped on the disk where it begins to spin with the disk. 1) What is the initial angular momentum of the rod and disk system? kg-m2/s Submit...
1a. A cockroach of mass m lies on the rim of a uniform
disk of mass 9.00 m that can rotate freely about its
center like a merry-go-round. Initially the cockroach and disk
rotate together with an angular velocity of 0.456 rad/s. Then the
cockroach walks halfway to the center of the disk.
(a) What then is the angular velocity of the
cockroach-disk system?
(b) What is the ratio
K/K0 of the new kinetic energy of the
system to its...
M,R a = 0 14. A body consisted of an uniform rod of mass m and length L, and a disk of mass M and radius R can rotate about the axis z. At the beginning the body is in the horizontal position and rests. On the body acts only the gravity force. Determine the linear momentum P, and the angular momentum K relatively to point O when the body is in the vertical position, as shown. m. X P2=?...
A uniform solid disk of mass m = 3.06 kg and radius r = 0.200 m rotates about a fixed axis perpendicular to its face with angular frequency 6.09 rad/s. (a) Calculate the magnitude of the angular momentum of the disk when the axis of rotation passes through its center of mass. kg · m2/s (b) What is the magnitude of the angular momentum when the axis of rotation passes through a point midway between the center and the rim?...
(a) A uniform disk of mass 14 kg, thickness 0.5 m, and radius 0.4 m is located at the origin, oriented with its axis along the y axis. It rotates clockwise around its axis when viewed from above (that is, you stand at a point on the +y axis and look toward the origin at the disk). The disk makes one complete rotation every 0.5 s. What is the rotational angular momentum of the disk? What is the rotational kinetic...
Calculate the angular momentum for a rotating disk, sphere, and rod. (a) A uniform disk of mass 16 kg, thickness 0.5 m, and radius 0.9 m is located at the origin, oriented with its axis along the y axis. It rotates clockwise around its axis when viewed from above (that is, you stand at a point on the +y axis and look toward the origin at the disk). The disk makes one complete rotation every 0.7 s. What is the...
A solid disk of mass m = 9.2 kg and radius R = 0.2 m is rotating with a constant angular velocity of w = 38 rad/s. A thin rectangular rod with mass m2 = 3.7 kg and length L = 2R = 0.4 m begins at rest above the disk and is dropped on the disk where it begins to spin with the disk. 1) What is the initial angular momentum of the rod and disk system? kg-m2/s Submit...
