Homework Answers

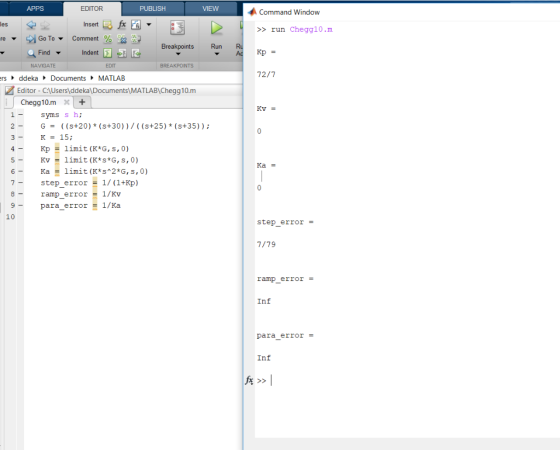

Code:
syms s h;
G = ((s+20)*(s+30))/((s+25)*(s+35));
K = 15;
Kp = limit(K*G,s,0)
Kv = limit(K*s*G,s,0)
Ka = limit(K*s^2*G,s,0)
step_error = 1/(1+Kp)
ramp_error = 1/Kv
para_error = 1/Ka
Add Answer to:

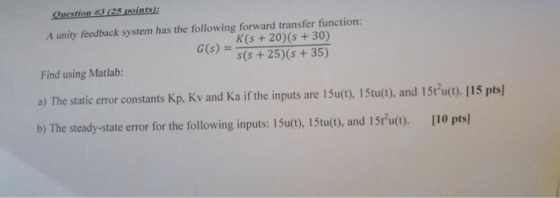

Question #3 (25 points): A unity feedback system has the following forward transfer function: K(s+20)(s +30) G(S) =...
