Question

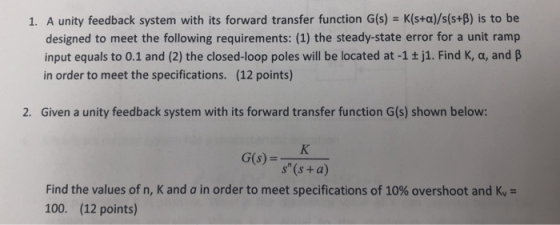

1. A unity feedback system with its forward transfer function G(s) - K(s+a)/s(s+B) is to be designed to meet the following re
0 0
Add a comment Improve this question Transcribed image text
Answer #1

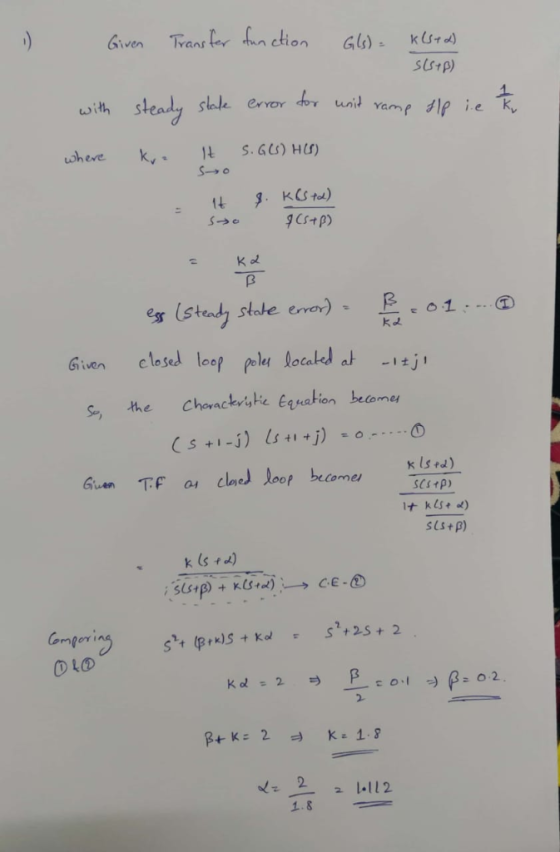

yans SUstp) wwith S slele eror tor レ s Ko kd Given closed loop poli loca Chorackryhe Eqa it kls+ ) (s+ P) c-verip s, p.us … s2) っ loo i.e pe 1 a. Ako guren lo Overs heot:1 present b So 顽 2.302

Add a comment
Know the answer?
Add Answer to:
1. A unity feedback system with its forward transfer function G(s) - K(s+a)/s(s+B) is to be...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • A unity feedback system with the forward transfer function G(s)=K/(s+1)(s+3)(s+6) is operating wi...

    A unity feedback system with the forward transfer function G(s)=K/(s+1)(s+3)(s+6) is operating with a closed-loop step response that has 15% overshoot. Do the following: a) Evaluate the steady-state error for a unit step input b) Design a PI control to reduce the steady-state error to zero without affecting its transient response c) Evaluate the steady-state error and overshoot for a unit step input to your compensated system A unity feedback system with the forward transfer function G(s) is operating with...

  • PROBLEM: A unity feedback system with the forward transfer function K G(s) s(s+7) is operating with...

    PROBLEM: A unity feedback system with the forward transfer function K G(s) s(s+7) is operating with a closed-loop step response that has 15% overshoot. Do the following: a. Evaluate the steady-state error for a unit ramp input. b. Design a lag compensator to improve the steady-state error by a factor of 20. c. Evaluate the steady-state error for a unit ramp input to your compensated system. d. Evaluate how much improvement in steady-state error was realized.

  • Question #3 (25 points): A unity feedback system has the following forward transfer function: K(s+20)(s +30) G(S) =...

    Question #3 (25 points): A unity feedback system has the following forward transfer function: K(s+20)(s +30) G(S) = s(s+25) (s + 35) Find using Matlab: a) The static error constants Kp, Kv and Ka if the inputs are 15u(t), 15tu(t), and 15t u(t). [15 pts b) The steady-state error for the following inputs: 15u(t), 15tu(t), and 15tu(t). [10 pts Question #3 (25 points): A unity feedback system has the following forward transfer function: K(s+20)(s +30) G(S) = s(s+25) (s +...

  • 4. A unity feedback system has the following forward transfer function G(s) = s(s+a) (a) Determin...

    4. A unity feedback system has the following forward transfer function G(s) = s(s+a) (a) Determine K and ath Answer: K 831,000 and a 832 (b) Determine K and a that gives ess-001 and a 10% overshoot Answer: K14000 and a 140 4. A unity feedback system has the following forward transfer function G(s) = s(s+a) (a) Determine K and ath Answer: K 831,000 and a 832 (b) Determine K and a that gives ess-001 and a 10% overshoot Answer:...

  • A unity feedback system with the forward transfer function G (s) = s(s+2)(s15) is operating with ...

    A unity feedback system with the forward transfer function G (s) = s(s+2)(s15) is operating with a closed-loop step response that has 15% overshoot. Do the following: a) Evaluate the settling time for a unit step input b) Design a PD control to yield a 15% overshoot but with a threefold reduction in settling time; c) Evaluate the settling time, overshoot, and steady-state error with the PD control. A unity feedback system with the forward transfer function G (s) =...

  • A unity feedback system with the forward transfer function G)2)(s +5) is operating with a closed-...

    A unity feedback system with the forward transfer function G)2)(s +5) is operating with a closed-loop step response that has 15% overshoot. Do the following: a) Evaluate the settling time for a unit step input; b) Design a PD control to yield a 15% overshoot but with a threefold reduction in settling time; c) Evaluate the settling time, overshoot, and steady-state error with the PD control. A unity feedback system with the forward transfer function G)2)(s +5) is operating with...

  • 1. Consider a unity feedback control system with the transfer function G(s) = 1/[s(s+ 2)] in...

    1. Consider a unity feedback control system with the transfer function G(s) = 1/[s(s+ 2)] in the forward path. (a) Design a proportional controller that yields a stable system with percent overshoot less that 5% for the step input (b) Find settling time and peak time of the closed-loop system designed in part (a); (c) Design a PD compensator that reduces the settling time computed in (b) by a factor of 4 while keeping the percent overshoot less that 5%...

  • Problem 1. A unity feedback system with forward transfer function G(s) is operating with a closed...

    Problem 1. A unity feedback system with forward transfer function G(s) is operating with a closed-loop step response that has 20.5% overshoot. G)-(+8)6 + 25) G(s) (a) Design a PD compens ator to decrease the settling time of the closed-loop system by a factor of four Problem 1. A unity feedback system with forward transfer function G(s) is operating with a closed-loop step response that has 20.5% overshoot. G)-(+8)6 + 25) G(s) (a) Design a PD compens ator to decrease...

  • K and consider a PI s+4 A unity feedback system has an open loop transfer function G(s) [4] S+a controller Ge(s) S Sele...

    K and consider a PI s+4 A unity feedback system has an open loop transfer function G(s) [4] S+a controller Ge(s) S Select the values of K and a to achieve a) (i) Peak overshoot of about 20% (ii) Settling time (2% bases) ~ 1 sec b) For the values of K and a found in part (a), calculate the unit ramp input steady state error K and consider a PI s+4 A unity feedback system has an open loop...

  • 17. Consider unity feedback system with uncompensated forward transfer function a given by: K G(s) s+3)(s 6) The system...

    17. Consider unity feedback system with uncompensated forward transfer function a given by: K G(s) s+3)(s 6) The system requires a damping ratio of 0.5. If the design point is at -1.54 j2.66, design a PI controller to drive the steady-state error of the response to zero 17. Consider unity feedback system with uncompensated forward transfer function a given by: K G(s) s+3)(s 6) The system requires a damping ratio of 0.5. If the design point is at -1.54 j2.66,...
