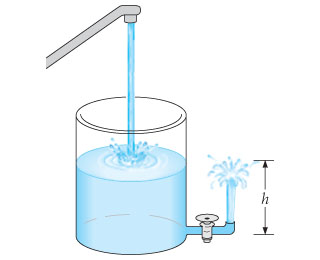

A cylinder has a diameter of 16cm (Figure 1) . The water level in the cylinder is maintained at a constant height of 0.53m .

If the diameter of the spout pipe is 0.48cm , how high is h, the vertical stream of water? (Assume the water to be an ideal fluid.)

Express your answer using two significant figures.

science physics

Answer 1

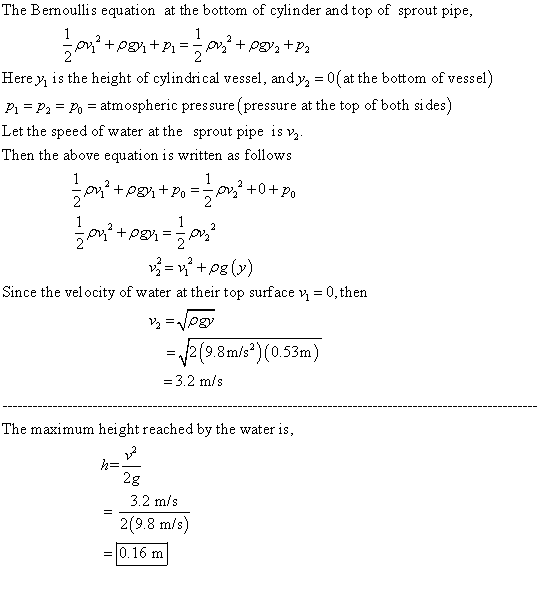

Answer #1

Answer 2
