Question

Write a class named FBoard for playing a game...

PLEASE USE C++

PLEASE DO NOT USE "THIS -->". NOT ALLOWED

PLEASE PROVIDE COMMENTS AND OUTPUT!

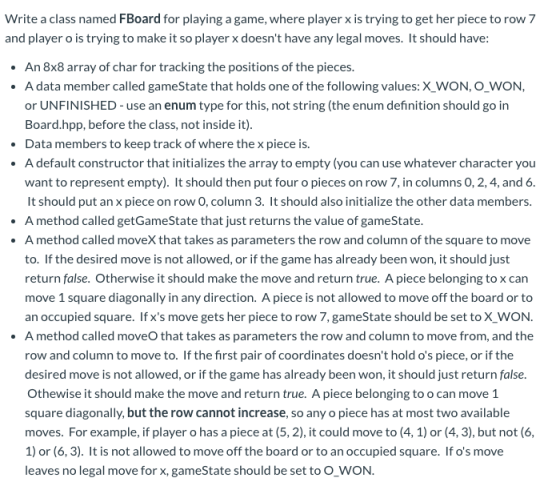

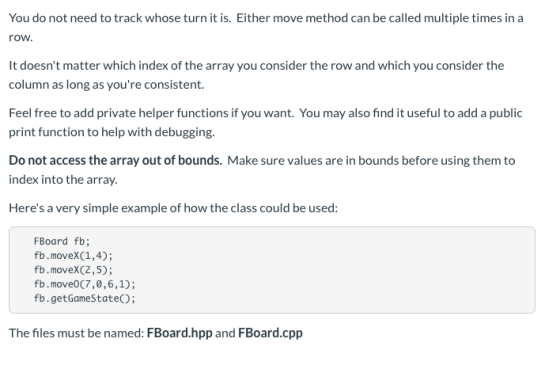

Write a class named FBoard for playing a game, where player x is trying to get her piece to row 7 and player o is trying to make it so player x doesn't have any legal moves. It should have: An 8x8 array of char for tracking the positions of the pieces. A data member called gameState that holds one of the following values: X_WON, O_WON, or UNFINISHED- use an enum type for this, not string (the enum definition should go in Board.hpp, before the class, not inside it) Data members to keep track of where the x piece is. A default constructor that initializes the array to empty (you can use whatever character you want to represent empty). It should then put four o pieces on row 7, in columns 0, 2, 4, and 6 It should put an x piece on row 0, column 3. It should also initialize the other data members. A method called getGameState that just returns the value of gameState. A method called moveX that takes as parameters the row and column of the square to move to. If the desired move is not allowed, or if the game has already been won, it should just return false. Otherwise it should make the move and return true. A piece belonging to x can move 1 square diagonally in any direction. A piece is not allowed to move off the board or to an occupied square. If x's move gets her piece to row 7, gameState should be set to X_WON. A method called moveO that takes as parameters the row and column to move from, and the row and column to move to. If the first pair of coordinates doesn't hold o's piece, or if the desired move is not allowed, or if the game has already been won, it should just return false. Othewise it should make the move and return true. A piece belonging to o can move 1 square diagonally, but the row cannot increase, so any o piece has at most two available moves. For example, if player o has a piece at (5, 2), it could move to (4, 1) or (4, 3), but not (6, 1) or (6, 3). It is not allowed to move off the board or to an occupied square. If o's move leaves no legal move for x, gameState should be set to O_wON You do not need to track whose turn it is. Either move method can be called multiple times in a row. It doesn't matter which index of the array you consider the row and which you consider the column as long as you're consistent. Feel free to add private helper functions if you want. You may also find it useful to add a public print function to help with debugging. Do not access the array out of bounds. Make sure values are in bounds before using them to index into the array. Here's a very simple example of how the class could be used: FBoard fb; fb.moveXC1,4); fb.moveXC2,5); fb.move0(7,0,6,1); fb.getGameState); The files must be named: FBoard.hpp and FBoard.cpp

Answer 1

//FBoard.h

enum state{
   X_WON,O_WON,UNFINISHED
};
class FBoard{
   private:
       char **board;
       enum state gameState;
       int x,y;

   public:
       FBoard();
       enum state getGameState();
       bool moveX(int ,int);
       bool moveO(int ,int ,int ,int);

};

//FBoard.cpp

#include"FBoard.h"
#include<math.h>

FBoard::FBoard(){
   board = new char*[8];
   for(int i=0;i<8;i++)board[i] = new char[8];

   for(int i=0;i<8;i++){
       for(int j=0;j<8;j++)board[i][j]='_';
   }
   board[7][0] = 'o';
   board[7][2] = 'o';
board[7][4] = 'o';
   board[7][6] = 'o';
   board[0][3] = 'x';

   x=0;
   y=3;
   gameState = UNFINISHED;
}
enum state FBoard::getGameState(){
   return gameState;
}
bool FBoard::moveX(int row,int col){
   if(gameState!=UNFINISHED)return false;
   if(row<0||row>7||col<0||col>7||abs(row-x)!=1||abs(col-y)!=1||board[row][col]!='_'){
       return false;
   }
   board[x][y] = '_';
   board[row][col]='x';
   x=row;
   y=col;
   if(x==7){
       gameState = X_WON;
   }
   return true;
}

bool FBoard::moveO(int i_row,int i_col,int f_row,int f_col){
   if(gameState!=UNFINISHED){

       return false;
   }
   if(i_row<0||i_row>7||i_col<0||i_col>7||f_row<0||f_row>7||f_col<0||f_col>7){

       return false;
   }
   if(board[i_row][i_col]!='o'||board[f_row][f_col]!='_'){
       return false;
   }
   if(i_row!=f_row+1||(i_col!=f_col+1 && i_col!=f_col-1)){

       return false;
   }

   board[f_row][f_col] = 'o';
   board[i_row][i_col] = '_';

   if(board[x-1][y-1]=='o'&&board[x-1][y+1]=='o'&&board[x+1][y+1]=='o'&&board[x+1][y-1]=='o')gameState = O_WON;
   return true;
}

//main.cpp

#include<iostream>
#include"FBoard.cpp"
using namespace std;
int main(){
   FBoard fb;
   if(fb.moveX(1,4))cout<<"X moves to given position\n";
   else cout<<"Invalid position\n";
   if(fb.moveX(2,5))cout<<"X moves to given position\n";
   else cout<<"Invalid position\n";
   if(fb.moveO(7,0,6,1))cout<<"O moves to given position\n";
   else cout<<"Invalid position\n";

   cout<<fb.getGameState();
   return 0;
}

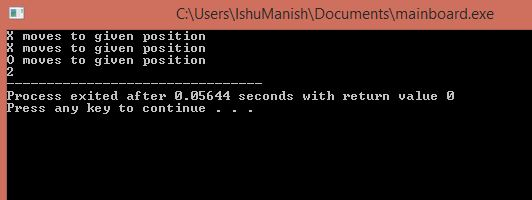

//sample output

CAUsers\IshuManish Documents\mainboard.exe moves to given position Xmoves to given position 0 moves to given position 2 Process exited after 0.05644 seconds with return value 0 Press any key to continue
