Homework Answers
Add Answer to:

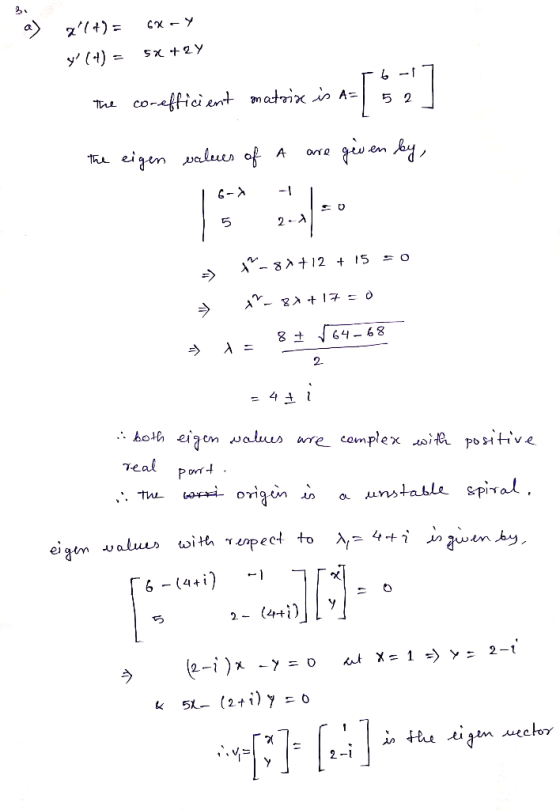

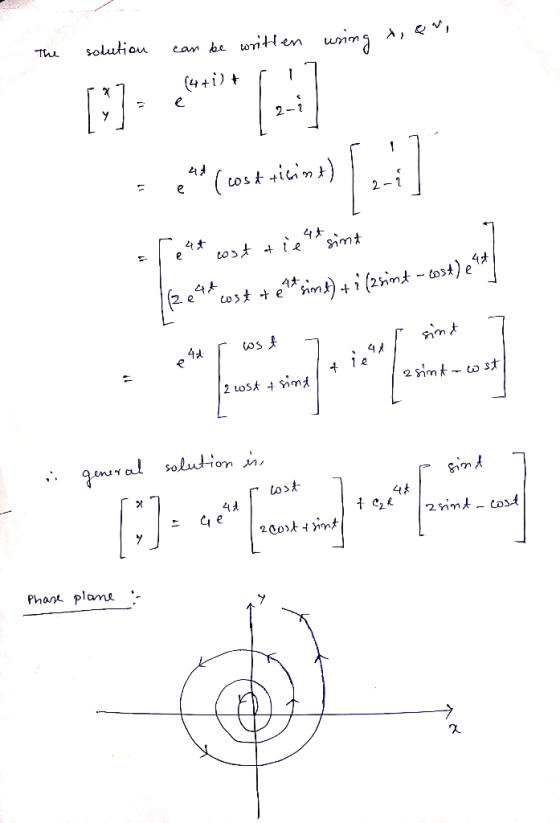

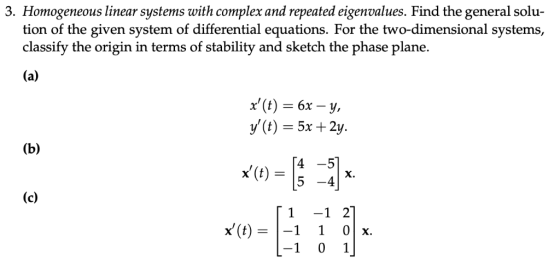

3. Homogeneous linear systems with complex and repeated eigenvalues. Find the general solu- tion of the given system of...
Question 2 please MATH308: Differential Equattons Problems for Chapter 7.6 (Complex-Valued Eigenvalues) 1. The following ODE...
Question 2 please
MATH308: Differential Equattons Problems for Chapter 7.6 (Complex-Valued Eigenvalues) 1. The following ODE systems have complex eigenvalues. Find the general solution and sketch the phase plane diagrams 3 -2 1 -A x=( x, 5 -1 1 -1*.(49) mu+ku 0 (50) where u(t) is the displacement at time t of the mass from its equilibrium position (a) Let -und show that the resulting system is 1) (51) b) Find the eigenvalues of the matrix in part (a). (c)...
Problem 3. For the following system, (a) compute the eigenvalues, (b) compute the associated eigenvectors, (c) if the eigenvalues are complex, determine if the origin is a spiral sink, a spiral s...
Problem 3. For the following system, (a) compute the eigenvalues, (b) compute the associated eigenvectors, (c) if the eigenvalues are complex, determine if the origin is a spiral sink, a spiral source, or a center; determine the natural period and natural frequency of the oscillations, and determine the direction of the oscillations in the phase plane, (d) sketch the phase portrait for the system; and (e) compute the general solution. ar dY (1 -3 dt Y,
Problem 3. For the...
1. For the following systems of differential equations: (i) Find the general solution. (ii) Plot the...
1. For the following systems of differential equations: (i) Find the general solution. (ii) Plot the phaseportrait and characterize the equilibrium. (iii) Choose an initial condition x(0) in the phase plane, and sketch the components z(t) and y(t) of the corresponding solution x(t) vs t, in two additional plots. *(*= 1) = x (0)
1. For the following systems of differential equations: (i) Find the general solution. (ii) Plot the...
1. For the following systems of differential equations: (i) Find the general solution. (ii) Plot the phaseportrait and characterize the equilibrium. (iii) Choose an initial condition x(0) in the phase plane, and sketch the components r(t) and y(t) of the corresponding solution x(t) vs t, in two additional plots. (a) x' = G =)
In this exploration, you will investigate the behavior of systems of differen tial equations in the complex plane of t...
In this exploration, you will investigate the behavior of systems of differen tial equations in the complex plane of the form z = F(2). Throughout this section, z will denote the complex number z x+ iy and F(2) will be a poly- nomial with complex coefficients. Solutions of the differential equation will be expressed as curves z(t) x(t) iy(t) in the complex plane You should be familiar with complex functions such as exponential, sine, and cosine, comprehend fully what you...
Find the general solution to the linear system of non-homogeneous differential equations x = x +...
Find the general solution to the linear system of non-homogeneous differential equations x = x + x + 1 xz' = 3x1 - x2 +t
3) Given the systemxx2-x,y'-2y, find all fixed points. For each fixed point linearize the system near the fixed point, shift the fixed point to the origin, determine the eigenvalues of the linear...
3) Given the systemxx2-x,y'-2y, find all fixed points. For each fixed point linearize the system near the fixed point, shift the fixed point to the origin, determine the eigenvalues of the linearized system, and determine whether the fixed point is a source, sink, saddle, stable orbit, or spiral. Attach a phase plane diagram to verify the behavior you found.
3) Given the systemxx2-x,y'-2y, find all fixed points. For each fixed point linearize the system near the fixed point, shift the...
1. The populations of two competing species x(t) and y(t) are governed by the non-linear system...
1. The populations of two competing species x(t) and y(t) are governed by the non-linear system of differential equations dx dt 10x – x2 – 2xy, dy dt 5Y – 3y2 + xy. (a) Determine all of the critical points for the population model. (b) Determine the linearised system for each critical point in part (a) and discuss whether it can be used to approximate the behaviour of the non-linear system. (c) For the critical point at the origin: (i)...
Find the most general real-valued solution to the linear system of differential equations (1 point) a. Find the most gen...
Find the most general real-valued solution to the linear system
of differential equations
(1 point) a. Find the most general real-valued solution to the linear system of differential -5 -36 x. -5 equations x 1 CHH x1 (t) = C1 x2 (t) b. In the phase plane, this system is best described as a O source/ unstable node Osink /stable node Osaddle center point ellipses Ospiral source spiral sink none of these tsi O O O
(1 point) a. Find...
homo 2nd order linear equations is necessarily the number -b/2a)]. 1. Find the general solution to...
homo 2nd order linear equations
is necessarily the number -b/2a)]. 1. Find the general solution to the following homogeneous differential equations. (a) y" - 2y + y = 0 (b) 9y" + 6y + y = 0 (c) 4y" + 12y +9y = 0 (d) y' - 6y +9y = 0 2. Solve the the following initial value problems. (a) 9y" - 12y + 4y = 0 with y(0) = 2 and y(0) = -1 (b) y' + 4y +...
Question 2 please
MATH308: Differential Equattons Problems for Chapter 7.6 (Complex-Valued Eigenvalues) 1. The following ODE systems have complex eigenvalues. Find the general solution and sketch the phase plane diagrams 3 -2 1 -A x=( x, 5 -1 1 -1*.(49) mu+ku 0 (50) where u(t) is the displacement at time t of the mass from its equilibrium position (a) Let -und show that the resulting system is 1) (51) b) Find the eigenvalues of the matrix in part (a). (c)...
Problem 3. For the following system, (a) compute the eigenvalues, (b) compute the associated eigenvectors, (c) if the eigenvalues are complex, determine if the origin is a spiral sink, a spiral source, or a center; determine the natural period and natural frequency of the oscillations, and determine the direction of the oscillations in the phase plane, (d) sketch the phase portrait for the system; and (e) compute the general solution. ar dY (1 -3 dt Y,
Problem 3. For the...
1. For the following systems of differential equations: (i) Find the general solution. (ii) Plot the phaseportrait and characterize the equilibrium. (iii) Choose an initial condition x(0) in the phase plane, and sketch the components z(t) and y(t) of the corresponding solution x(t) vs t, in two additional plots. *(*= 1) = x (0)
1. For the following systems of differential equations: (i) Find the general solution. (ii) Plot the phaseportrait and characterize the equilibrium. (iii) Choose an initial condition x(0) in the phase plane, and sketch the components r(t) and y(t) of the corresponding solution x(t) vs t, in two additional plots. (a) x' = G =)
In this exploration, you will investigate the behavior of systems of differen tial equations in the complex plane of the form z = F(2). Throughout this section, z will denote the complex number z x+ iy and F(2) will be a poly- nomial with complex coefficients. Solutions of the differential equation will be expressed as curves z(t) x(t) iy(t) in the complex plane You should be familiar with complex functions such as exponential, sine, and cosine, comprehend fully what you...
Find the general solution to the linear system of non-homogeneous differential equations x = x + x + 1 xz' = 3x1 - x2 +t
3) Given the systemxx2-x,y'-2y, find all fixed points. For each fixed point linearize the system near the fixed point, shift the fixed point to the origin, determine the eigenvalues of the linearized system, and determine whether the fixed point is a source, sink, saddle, stable orbit, or spiral. Attach a phase plane diagram to verify the behavior you found.
3) Given the systemxx2-x,y'-2y, find all fixed points. For each fixed point linearize the system near the fixed point, shift the...
1. The populations of two competing species x(t) and y(t) are governed by the non-linear system of differential equations dx dt 10x – x2 – 2xy, dy dt 5Y – 3y2 + xy. (a) Determine all of the critical points for the population model. (b) Determine the linearised system for each critical point in part (a) and discuss whether it can be used to approximate the behaviour of the non-linear system. (c) For the critical point at the origin: (i)...
Find the most general real-valued solution to the linear system
of differential equations
(1 point) a. Find the most general real-valued solution to the linear system of differential -5 -36 x. -5 equations x 1 CHH x1 (t) = C1 x2 (t) b. In the phase plane, this system is best described as a O source/ unstable node Osink /stable node Osaddle center point ellipses Ospiral source spiral sink none of these tsi O O O
(1 point) a. Find...
homo 2nd order linear equations
is necessarily the number -b/2a)]. 1. Find the general solution to the following homogeneous differential equations. (a) y" - 2y + y = 0 (b) 9y" + 6y + y = 0 (c) 4y" + 12y +9y = 0 (d) y' - 6y +9y = 0 2. Solve the the following initial value problems. (a) 9y" - 12y + 4y = 0 with y(0) = 2 and y(0) = -1 (b) y' + 4y +...
