Homework Answers
Add Answer to:

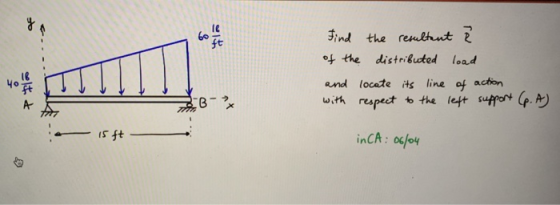

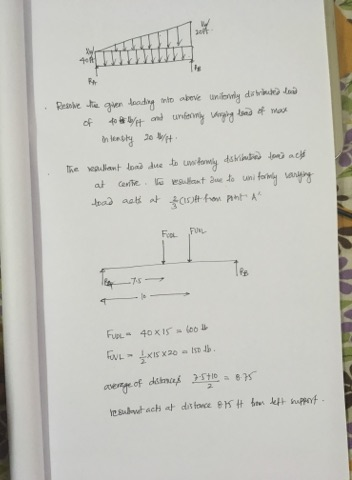

Find 60 ft the renltut of the distribucted load and locate #s line of acton with reapect the left support p. A) inC...
Detenuine the intemal forces and 60 lb/ft at A for the loodings (a) and (b) 5 ft 3 0 4 m The left support is a pin and the right support is a roller Detenuine the intemal forces and 60 lb/ft at...
Detenuine the intemal forces and 60 lb/ft at A for the loodings (a) and (b) 5 ft 3 0 4 m The left support is a pin and the right support is a roller
Detenuine the intemal forces and 60 lb/ft at A for the loodings (a) and (b) 5 ft 3 0 4 m The left support is a pin and the right support is a roller
16.6a) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of ...
16.6a) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of 2 kips/ft over the full span and a concentrated load of 60 kips at mid-span. What is the required plastic section modulus Zx? (Include self-weight) 16.6b) A simply supported beam is to span 15 ft. It will support a uniformly distributed load of 2 kips/ft over the full span and a concentrated load of 60 kips at mid-span. Deflection is not to...
assume 7/8 Select the lightest angular to support a live load LL=60 Kips and a dead...
assume 7/8
Select the lightest angular to support a live load LL=60 Kips and a dead load DL= 30 Kips. The angular will be connected to a gusset plate through bolts. Use at least three bolts in one line and 2 in, as the distance between bolts in the load direction. Use A992 Gr 50. The length of the angular is 24 ft. (ignore block shear) Angular >1 Plate
The two bars shown in the figure are used to support a load P. When unloaded,...
The two bars shown in the figure are used to support a load P. When unloaded, joint B has coordinates (0, 0). After load P is applied, joint B moves to the coordinate position (0.45 in., -0.50 in.). Assume a = 10 ft, b 8 ft, and h = 9 ft. Determine the normal strain in each bar. Answers: EAB =T0.004 165 ?? EgC =TO·0005289 ??
1. A 20 ft beam carries a distributed load + concentrated loads as shown in the...
1. A 20 ft beam carries a distributed load + concentrated loads as shown in the figure below. -12 ft 400 lbs 300 lbs 500 lbs/ft 3 ft- - 20 ft Provide the following: a) Find the reaction forces on the beam. b) Discuss why your answer in a) is practical and makes intuitive sense. c) Find the shear and moment in the beam 14 ft from the left support.
Q3) using a scale of 1" 40'-0" start at the origin point O Draw a 70 ft. long line at EE40°S to p...
Q3) using a scale of 1" 40'-0" start at the origin point O Draw a 70 ft. long line at EE40°S to point A From point A draw a 60 ft. long line at EN20°W to point B - Find angles OAB, and OBA - Find length OB Please show all Work
Q3) using a scale of 1" 40'-0" start at the origin point O Draw a 70 ft. long line at EE40°S to point A From point A draw...
1) Show the top left corner of the heel and the distance to the line load....
1) Show the top left corner of the heel and the distance
to the line load.
2) Calculate the additional vertical stress (kpa) at the
top left corner of the heel due to the line load. Use the
following equation z - depth and x, perpendicular distance to line
load.
A line load of 262kN/m acts at a distance d= 4.6 m from the front face of the retaining wall having the following dimensions in metres (height=2.0, a=0.48,5=2.3,x=0.5.y=0.4, and z=0.7....
Design a 24-in.-wide precast concrete slab to support a 60-psf live load for a simple span of 15 ...
Design a 24-in.-wide precast concrete slab to support a 60-psf live load for a simple span of 15 ft. Assume the minimum concrete cover required to be 5 in. Use welded wire fabric for reinforcing steel. J.-б0,000 psi,//-3000 ps, and ρ = 0.18/ 'My (Ans. 4-in. slab with 4 × 8 D12/D6)
Design a 24-in.-wide precast concrete slab to support a 60-psf live load for a simple span of 15 ft. Assume the minimum concrete cover required to be 5...
please solve it manually and using ETABS. please solve it manually and using ETABS. 1.) Select the lightest W beam to support the following loads 4 in. concrete slab 15 ft 40 psf dead load 15 ft 100 p...
please solve it manually and using ETABS.
please solve it manually and using ETABS.
1.) Select the lightest W beam to support the following loads 4 in. concrete slab 15 ft 40 psf dead load 15 ft 100 psf live load Fy 50 ksi 35 ft 15 ft Wu 35 ft
1.) Select the lightest W beam to support the following loads 4 in. concrete slab 15 ft 40 psf dead load 15 ft 100 psf live load Fy 50...
Problem #2 (60 pts). A balanced three-phase 240-V (rms, line-to-line source supplies a balanced three-phase load....
Problem #2 (60 pts). A balanced three-phase 240-V (rms, line-to-line source supplies a balanced three-phase load. If the line current IA is measured to be 15 A and is in phase with the line-to-line voltage, VBc, find the per-phase load impedance if the load is (a) Y-connected (b) A-connected. Calculate the complex ower S for each case.
Detenuine the intemal forces and 60 lb/ft at A for the loodings (a) and (b) 5 ft 3 0 4 m The left support is a pin and the right support is a roller
Detenuine the intemal forces and 60 lb/ft at A for the loodings (a) and (b) 5 ft 3 0 4 m The left support is a pin and the right support is a roller
assume 7/8
Select the lightest angular to support a live load LL=60 Kips and a dead load DL= 30 Kips. The angular will be connected to a gusset plate through bolts. Use at least three bolts in one line and 2 in, as the distance between bolts in the load direction. Use A992 Gr 50. The length of the angular is 24 ft. (ignore block shear) Angular >1 Plate
The two bars shown in the figure are used to support a load P. When unloaded, joint B has coordinates (0, 0). After load P is applied, joint B moves to the coordinate position (0.45 in., -0.50 in.). Assume a = 10 ft, b 8 ft, and h = 9 ft. Determine the normal strain in each bar. Answers: EAB =T0.004 165 ?? EgC =TO·0005289 ??
1. A 20 ft beam carries a distributed load + concentrated loads as shown in the figure below. -12 ft 400 lbs 300 lbs 500 lbs/ft 3 ft- - 20 ft Provide the following: a) Find the reaction forces on the beam. b) Discuss why your answer in a) is practical and makes intuitive sense. c) Find the shear and moment in the beam 14 ft from the left support.
Q3) using a scale of 1" 40'-0" start at the origin point O Draw a 70 ft. long line at EE40°S to point A From point A draw a 60 ft. long line at EN20°W to point B - Find angles OAB, and OBA - Find length OB Please show all Work
Q3) using a scale of 1" 40'-0" start at the origin point O Draw a 70 ft. long line at EE40°S to point A From point A draw...
1) Show the top left corner of the heel and the distance
to the line load.
2) Calculate the additional vertical stress (kpa) at the
top left corner of the heel due to the line load. Use the
following equation z - depth and x, perpendicular distance to line
load.
A line load of 262kN/m acts at a distance d= 4.6 m from the front face of the retaining wall having the following dimensions in metres (height=2.0, a=0.48,5=2.3,x=0.5.y=0.4, and z=0.7....
Design a 24-in.-wide precast concrete slab to support a 60-psf live load for a simple span of 15 ft. Assume the minimum concrete cover required to be 5 in. Use welded wire fabric for reinforcing steel. J.-б0,000 psi,//-3000 ps, and ρ = 0.18/ 'My (Ans. 4-in. slab with 4 × 8 D12/D6)
Design a 24-in.-wide precast concrete slab to support a 60-psf live load for a simple span of 15 ft. Assume the minimum concrete cover required to be 5...
please solve it manually and using ETABS.
please solve it manually and using ETABS.
1.) Select the lightest W beam to support the following loads 4 in. concrete slab 15 ft 40 psf dead load 15 ft 100 psf live load Fy 50 ksi 35 ft 15 ft Wu 35 ft
1.) Select the lightest W beam to support the following loads 4 in. concrete slab 15 ft 40 psf dead load 15 ft 100 psf live load Fy 50...
Problem #2 (60 pts). A balanced three-phase 240-V (rms, line-to-line source supplies a balanced three-phase load. If the line current IA is measured to be 15 A and is in phase with the line-to-line voltage, VBc, find the per-phase load impedance if the load is (a) Y-connected (b) A-connected. Calculate the complex ower S for each case.
