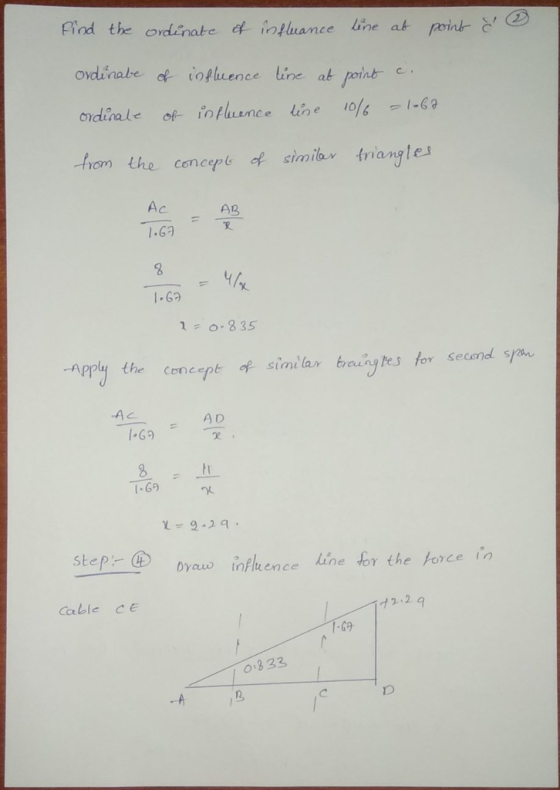

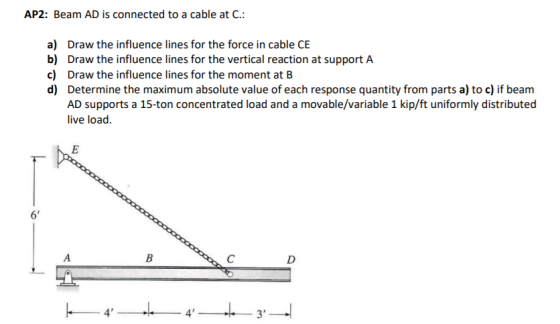

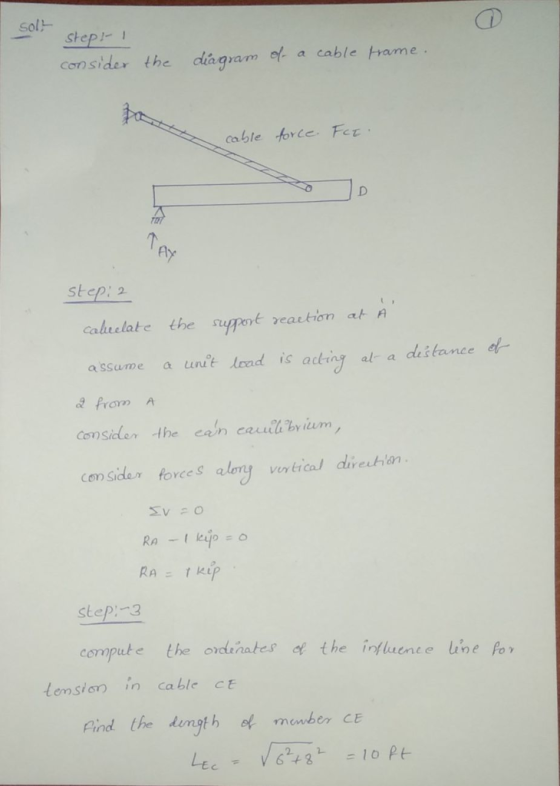

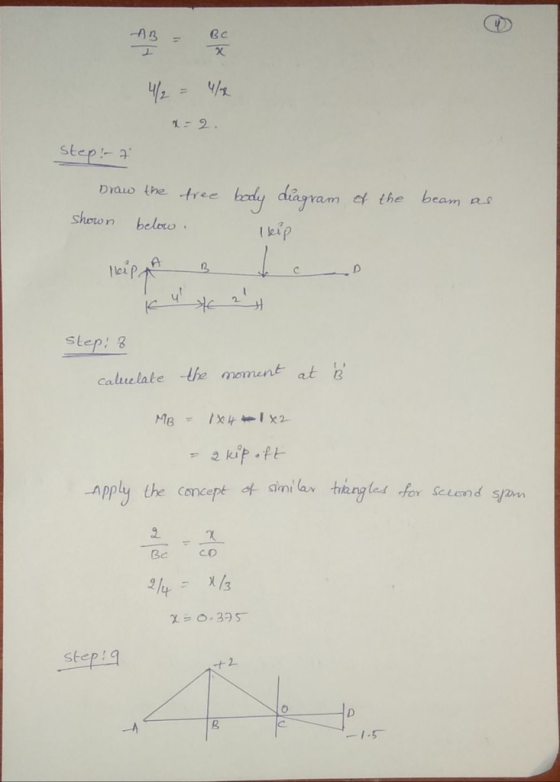

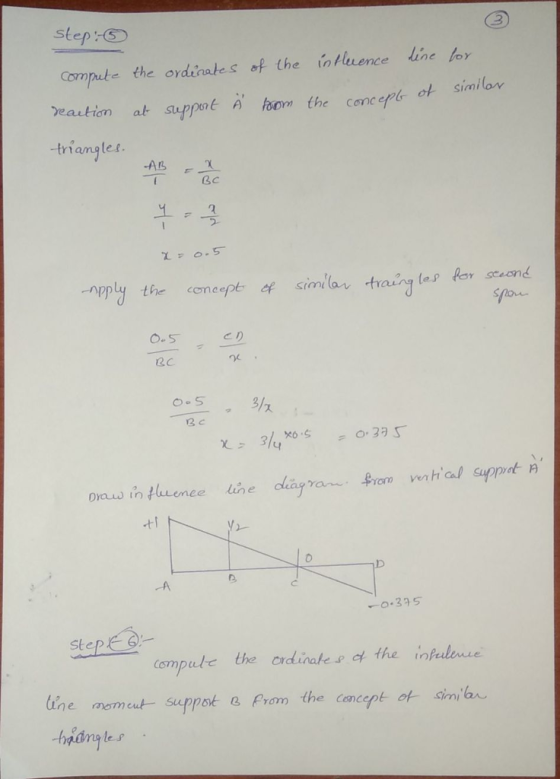

AP2: Beam AD is connected to a cable at C.: a) Draw the influence lines for the force in cable CE b) Draw the influence...
For the beam of Problem 8.27, determine the maximum positive and negative shears and the maximum positive and negative bending moments at point E due to a concentrated live load of 40 k, a uniformly distributed live load of 2 k/ft, and a uniformly distributed dead load of 1 k/ft. Reference: Problem 8.27 8.27 Draw the influence lines for the vertical reactions at supports B, D, and G and the reaction moment at support G of the beam shown in...
Chapter 6- Influence Lines Draw the influence line for the shear and moment at C for the beam shown below. The support at A is a roller and the support at B is a pin. The beam is subjected to a uniform load of 5 kip/ft over its entire length and a single 12 kip concentrated force. Deternmine the maximum values of Ve and Mc and the position of the applied concentrated force for each condition. Answer: VC: +0.5 at...
Q.3 (15 pts) For the beam shown below draw the influence line for Rc, Rp. VB, and Mg using either the equilibrium method or the Muller-Breslau principle. Use the influence line for MB to compute the absolute maximum and absolute minimum bending moment produced at B due to a uniformly distributed live load of 10 k/ft that may or may not be present anywhere on the beam. Use the influence line for Veto compute the absolute maximum shear force produced...
A B C D E F 8' 8' 8' 8' 8' civil engineering
Draw influence lines (show the values and locations for all key points) for the following: Karagi programoginta a) Influence Line for Vertical (upwards) Reaction at F, Fy b) Influence Line for Vertical Reaction at B, BY c) Influence Line for Positive Internal Shear Force just to the right of D, Veight d) Influence Line for Positive Internal Bending Moment at B, M, e) Maximum value of By...
(Influence Line Use) Problem 2. The INFLUENCE LINES ARE GIVEN for the beam below. DRAW THE PLACEMENT OF THE LOADS AND CALCULATE THE VALUES FOR THE MAXIMUM NEGATIVE SHEAR at "B", and MAXIMUM POSITIVE MOMENT at "B" due to a concentrated point load of 1400 lb, uniform live load of 800 lb/ft, and a uniform dead load of 600 lb/ft. (12 points) B с 10 ft 6 ft 2A 2 ft Vs ww 2.25 IL RA -0.25 1.25 0.25 IL...
(Influence Line Use) Problem 2. The INFLUENCE LINES ARE GIVEN for the beam below. DRAW THE PLACEMENT OF THE LOADS AND CALCULATE THE VALUES FOR THE MAXIMUM NEGATIVE SHEAR at "B", and MAXIMUM POSITIVE MOMENT at "B" due to a concentrated point load of 1400 lb, uniform live load of 800 lb/ft, and a uniform dead load of 600 lb/ft. (12 points) B с 10 ft 6 A 2A 2 ft Vs. 2.25 IL RA -0.25 1.25 0.25 IL VB...
Question 2: A simply supported beam under loading as shown in Figure 1: 1. Draw the influence lines of the bending moment and shear force at point C (L/4) Using the influence lines to determine the bending moment and shear force at section C due to the loading as shown in the figure. 2. 3. There is a distributed live load (w#2.5kN/m) which can vary the location along the beam. Determine the location of the live loads which create the...
1) Draw the influence lines for the reaction force at A, the shear force at C and the moment at C. Show all the values. faA 2m 2 m 2 m 2) The Beam of problem #1 is subjected to uniform dead load 0.8 kN/m and uniform live load of 2 kN/m and a single live concentrated force of 20 kN. Determine (a) the maximum reaction force at A, (b) the maximum positive shear at point C, and (c) the...
Question 1 (30 points) Hinge Hinge Draw the influence lines for A) reaction moment at G b) shear and bending moment at E c) Determine the maximum positive and negative shears and the maximum positive and negative bending moments at point E due to (i concentrated live load of 160 kN, (ii) uniformly distributed live load of 28 kN/m with 2 m length
1-(25%) Draw shear and moment diagrams for the beam shown in Figure P-1. Draw a sketch of the deflected shape 2-(25%) Using moment area method, for the beam shown in Figure P-2 find deflection at A. Also, determine the location and value of the maximum deflection in span BC. El is constant 3-(25%) For the frame shown in Figure P-3-find member frees and draw shear and moment diagrams. 4-(25%) Draw/ influence lines for shear to the left of A, shear at B, and...
