Question

A coil has an inductance of 0.250 H and a resistance of 20.0 Ω. The coil is connected to a 6.00-V ideal battery. When th...

A coil has an inductance of 0.250 H and a resistance of 20.0 Ω. The coil is connected to a 6.00-V ideal battery. When the current reaches half its maximum value, at what rate is energy being dissipated?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

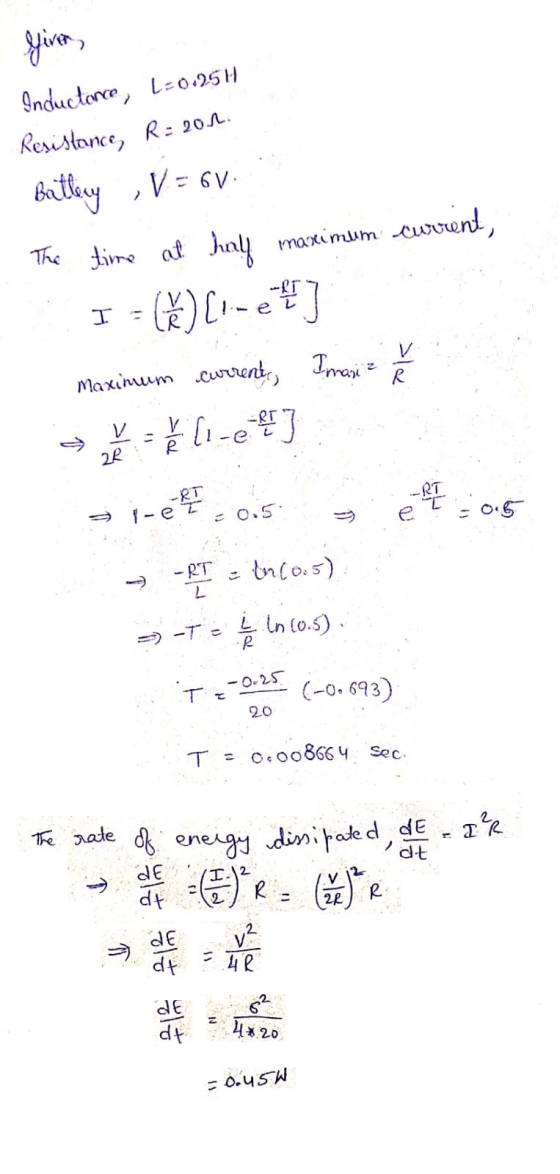

Giver Inductance, 1-0.251 Resistance, R: 2012 Batley ,V=ov. The time at half maximum curent, I = ( ) [1.- et] maxinum current

0 0
