An inductance coil draws 3.7 A dc when connected to a 36 V battery. When connected to a 60-Hz 120 V (rms) source, the current drawn is 2.0 A (rms)

Determine the resistance of the coil.

Determine the inductance of the coil.

science physics

Answer 1

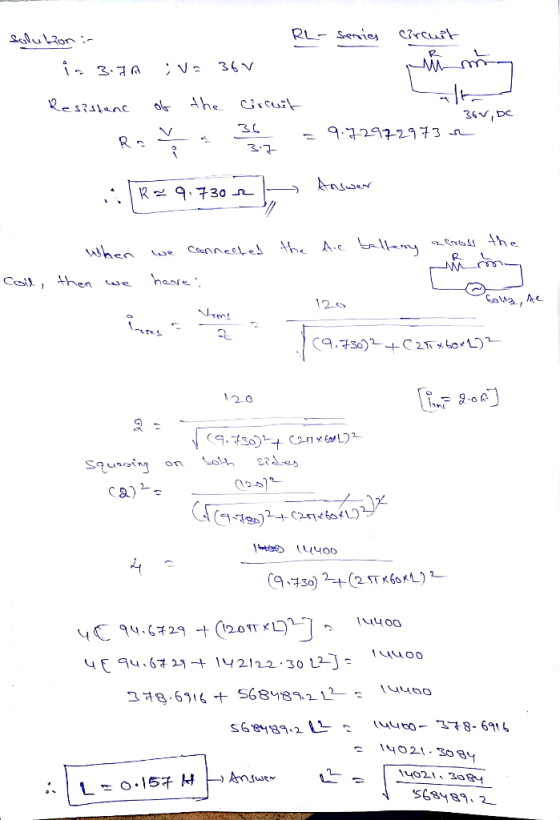

Answer #1

2 36V, Dc 2-293- 12-5 Gola 그규8.6716ナ S68489, 21?_^ し4400

Answer 2
