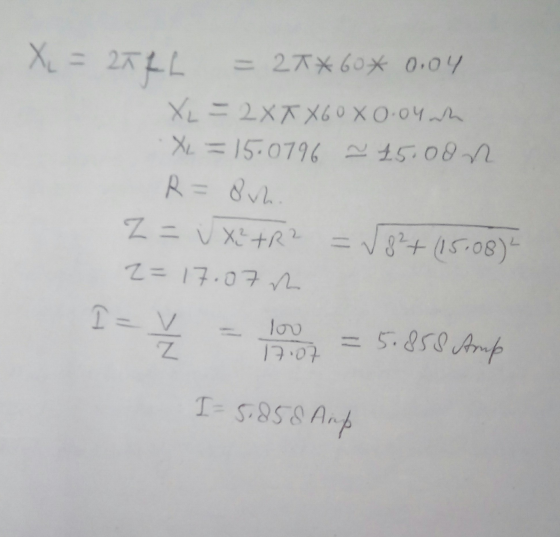

a coil having a resistance of 8 and inductance of 0.04 h is connected across 100...
Homework Answers
Add Answer to:
a coil having a resistance of 8 and inductance of 0.04 h is
connected across 100...
A coil having a resistance of 20 Ω and an inductance of 0.15 H is connected...
A coil having a resistance of 20 Ω and an inductance of 0.15 H is connected in series with a 100 μ F capacitor across a 230 V, 50 Hz supply. Calculate: (a) the active and reactive components of the current; (b) the voltage across the coil. Sketch the phasor diagram. A p.d. of 100 V at 50 Hz is maintained across a series circuit having the following characteristics: R = 10 Ω, L = 100/ π mH, C =...
a) A coil having resistance of 12 2 and an unknown inductance is connected in series...
a) A coil having resistance of 12 2 and an unknown inductance is connected in series with a 14uF capacitor. The circuit draws maximum current when a voltage of 200 V at 60 Hz is applied. A second capacitor is then connected in parallel to the circuit. i) What should be its value (capacitance), such that the combination acts like a non- inductive resistance, with the same voltage (200V) at 120 Hz? [3.0 marks] ii) Calculate the supply current drawn...
RLC resonance 5.2 A A coil with a resistance of 5, and an inductance of 0.03...
RLC resonance 5.2 A A coil with a resistance of 5, and an inductance of 0.03 H is connected in series coil with a with a resistor R = 100 and a capacitor of 200 uF. The supply is giving 220 V at 50 Hz. 5.2.1 Draw the network. (2) 5.2.2 Determine the current drawn in the circuit and the voltage drop across the coil. (Hint find: Zcoil. Ztotal. I, Vcoil) 5.2.3 Draw the phasor diagram of the current in...
A coil with a self-inductance of 4 H and a resistance of 14 ohm is connected...
A coil with a self-inductance of 4 H and a resistance of 14 ohm is connected across a 22 V battery of negligible internal resistance. What is the final current? A How much energy is stored in the inductor when the final current is attained? J
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series,...
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series, and across the combination is connected to a 500V, 60 Hz supply. Calculate (a) the current flowing, (b) the phase difference between the supply voltage and current, (c) the voltage across the coil and the capacitor. 6. An 300-uF capacitor is connected in series with 3.25-MQ resistance across a 300-V supply. The switch is closed. Calculate a) Time constant of the circuit b) Initial...
Q2) A coil has a resistance of 4 ohms and an inductance of 9.55 mh connected...
Q2) A coil has a resistance of 4 ohms and an inductance of 9.55 mh connected in parallel. Calculate a) the reactance, b) the impedance, c) the current taken across both resistor and inductor, d) total current Supply voltage is 220V and frequency is 50 Hz
A coil with inductance of 3.0 H and a resistance of 34.0 ? is suddenly connected...
A coil with inductance of 3.0
H and a resistance of 34.0 ? is suddenly
connected to a resistanceless battery with ? = 100.0 V, by
closing the switch.
What is the equilibrium current?
How much energy is stored in the magnetic field when this
current exists in the coil?
An inductance coil draws 3.7 A dc when connected to a 36 V battery. When connected...
An inductance coil draws 3.7 A dc when connected to a 36 V battery. When connected to a 60-Hz 120 V (rms) source, the current drawn is 2.0 A (rms) Determine the resistance of the coil. Determine the inductance of the coil.
JA coil has a resistance of0.75 Ω and a current of5.5 A through it. The flux n coil is, Nd)B = 0.026 Wb. of s.5 A through it. The flux linkage through the a) Calculate the inductance of the coil b...
JA coil has a resistance of0.75 Ω and a current of5.5 A through it. The flux n coil is, Nd)B = 0.026 Wb. of s.5 A through it. The flux linkage through the a) Calculate the inductance of the coil b) Ifa 6.0 V battery is suddenly connected across the coil, how long will it take for the to rise from 0 to 2.5 A?
JA coil has a resistance of0.75 Ω and a current of5.5 A through it. The...
A coil has an inductance of 0.250 H and a resistance of 20.0 Ω. The coil is connected to a 6.00-V ideal battery. When th...
A coil has an inductance of 0.250 H and a resistance of 20.0 Ω. The coil is connected to a 6.00-V ideal battery. When the current reaches half its maximum value, at what rate is energy being dissipated?
a) A coil having resistance of 12 2 and an unknown inductance is connected in series with a 14uF capacitor. The circuit draws maximum current when a voltage of 200 V at 60 Hz is applied. A second capacitor is then connected in parallel to the circuit. i) What should be its value (capacitance), such that the combination acts like a non- inductive resistance, with the same voltage (200V) at 120 Hz? [3.0 marks] ii) Calculate the supply current drawn...
RLC resonance 5.2 A A coil with a resistance of 5, and an inductance of 0.03 H is connected in series coil with a with a resistor R = 100 and a capacitor of 200 uF. The supply is giving 220 V at 50 Hz. 5.2.1 Draw the network. (2) 5.2.2 Determine the current drawn in the circuit and the voltage drop across the coil. (Hint find: Zcoil. Ztotal. I, Vcoil) 5.2.3 Draw the phasor diagram of the current in...
A coil with a self-inductance of 4 H and a resistance of 14 ohm is connected across a 22 V battery of negligible internal resistance. What is the final current? A How much energy is stored in the inductor when the final current is attained? J
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series, and across the combination is connected to a 500V, 60 Hz supply. Calculate (a) the current flowing, (b) the phase difference between the supply voltage and current, (c) the voltage across the coil and the capacitor. 6. An 300-uF capacitor is connected in series with 3.25-MQ resistance across a 300-V supply. The switch is closed. Calculate a) Time constant of the circuit b) Initial...
Q2) A coil has a resistance of 4 ohms and an inductance of 9.55 mh connected in parallel. Calculate a) the reactance, b) the impedance, c) the current taken across both resistor and inductor, d) total current Supply voltage is 220V and frequency is 50 Hz
A coil with inductance of 3.0
H and a resistance of 34.0 ? is suddenly
connected to a resistanceless battery with ? = 100.0 V, by
closing the switch.
What is the equilibrium current?
How much energy is stored in the magnetic field when this
current exists in the coil?
JA coil has a resistance of0.75 Ω and a current of5.5 A through it. The flux n coil is, Nd)B = 0.026 Wb. of s.5 A through it. The flux linkage through the a) Calculate the inductance of the coil b) Ifa 6.0 V battery is suddenly connected across the coil, how long will it take for the to rise from 0 to 2.5 A?
JA coil has a resistance of0.75 Ω and a current of5.5 A through it. The...
