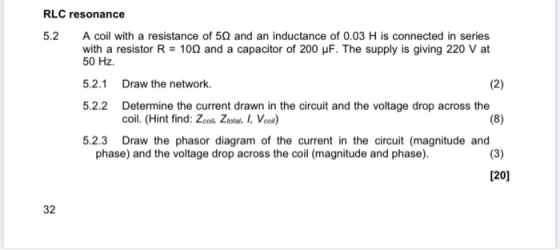

RLC resonance 5.2 A A coil with a resistance of 5, and an inductance of 0.03...
We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance ...
We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz What is true? Question 10 options: The current through the inductor is larger than through the resistor The voltage across the inductor is larger than the voltage across the capacitor The voltage is lagging behind the current at the source The voltage and the current are in phase at the...
A coil having a resistance of 20 Ω and an inductance of 0.15 H is connected...
A coil having a resistance of 20 Ω and an inductance of 0.15 H is connected in series with a 100 μ F capacitor across a 230 V, 50 Hz supply. Calculate: (a) the active and reactive components of the current; (b) the voltage across the coil. Sketch the phasor diagram. A p.d. of 100 V at 50 Hz is maintained across a series circuit having the following characteristics: R = 10 Ω, L = 100/ π mH, C =...
a) A coil having resistance of 12 2 and an unknown inductance is connected in series...
a) A coil having resistance of 12 2 and an unknown inductance is connected in series with a 14uF capacitor. The circuit draws maximum current when a voltage of 200 V at 60 Hz is applied. A second capacitor is then connected in parallel to the circuit. i) What should be its value (capacitance), such that the combination acts like a non- inductive resistance, with the same voltage (200V) at 120 Hz? [3.0 marks] ii) Calculate the supply current drawn...
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series,...
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series, and across the combination is connected to a 500V, 60 Hz supply. Calculate (a) the current flowing, (b) the phase difference between the supply voltage and current, (c) the voltage across the coil and the capacitor. 6. An 300-uF capacitor is connected in series with 3.25-MQ resistance across a 300-V supply. The switch is closed. Calculate a) Time constant of the circuit b) Initial...
An ac circuit with a 60 μF capacitor in series with a coil of resistance 18Ω...
An ac circuit with a 60 μF capacitor in series with a coil of resistance 18Ω and inductance 180mH is connected to a 100V, 100 Hz supply is shown below. Calculate inductive reactance capacitive reactance circuit impedance and phase angle θ circuit current I phasor voltages VR, VL, VC and VS resonance circuit frequency construct a fully labeled voltage phasor diagram
Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm,...
Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz the total impedance is Question 13 options: less than 100Ohm Is more than 100Ohm Is within 1% of 100 Ohm Is not within 1% of 100Ohm Question 14 (1 point) Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is...
The RLC circuit below is being driven by an AC source with a frequency of 47.77...
The RLC circuit below is being driven by an AC source with a
frequency of 47.77 Hz resulting in a maximum current Imax = 0.25
amps.
24) In this circuit, the voltage
across the capacitor __________ the current through the capacitor
and the voltage across the resistor __________ the current through
the resistor.
leads, lags
leads, leads
lags, leads
lags, lags
lags, is in phase with
is in phase with, leads
Totally unrelated question....
25) A local radio station broadcasts
at the...
= 4.25 uF, and the inductance Consider a series RLC circuit where the resistance R =...
= 4.25 uF, and the inductance Consider a series RLC circuit where the resistance R = 753 12, the capacitance C L 15.0 mH. Determine the resonance frequency 0 of the circuit. 00 rad/s What is the maximum current Imax when the circuit is at resonance, if the amplitude of the AC driving voltage is 60.0 V? Imax = A
A series RLC circuit contains the following components. The resistance of the circuit is 200.0 D.,...
A series RLC circuit contains the following components. The resistance of the circuit is 200.0 D., the inductance is 230.0 mH, and the capacitance is 70.0 uF. There is a source with DeltaVmax = 36.0 V operating at 60.0 Hz. Find the following: The inductive reactance The capacitance reactance The impedance The maximum current The phasor angle Phi If you could choose a different inductor is it possible that the voltage across the inductor be greater than the source voltage...
In an RLC circuit, ? = 10 Ω, ? = 0.5 ??, and ? = 6.0...
In an RLC circuit, ? = 10 Ω, ? = 0.5 ??, and ? = 6.0 ??, the
current in the inductor is ?? = 12 ? sin(?? + 0.2). The circuit
operates at half of the resonance frequency.
a) Find the current in the resistor, capacitor and for the
entire circuit.
b) Find the voltage in the resistor, capacitor, and
inductor.
c) Find the emf of the AC source.
Will give great review for good answer.
2) In an...
a) A coil having resistance of 12 2 and an unknown inductance is connected in series with a 14uF capacitor. The circuit draws maximum current when a voltage of 200 V at 60 Hz is applied. A second capacitor is then connected in parallel to the circuit. i) What should be its value (capacitance), such that the combination acts like a non- inductive resistance, with the same voltage (200V) at 120 Hz? [3.0 marks] ii) Calculate the supply current drawn...
5. A resistance 250, inductance 200mH, and capacitance 1 uF capacitor are all connected in series, and across the combination is connected to a 500V, 60 Hz supply. Calculate (a) the current flowing, (b) the phase difference between the supply voltage and current, (c) the voltage across the coil and the capacitor. 6. An 300-uF capacitor is connected in series with 3.25-MQ resistance across a 300-V supply. The switch is closed. Calculate a) Time constant of the circuit b) Initial...
The RLC circuit below is being driven by an AC source with a
frequency of 47.77 Hz resulting in a maximum current Imax = 0.25
amps.
24) In this circuit, the voltage
across the capacitor __________ the current through the capacitor
and the voltage across the resistor __________ the current through
the resistor.
leads, lags
leads, leads
lags, leads
lags, lags
lags, is in phase with
is in phase with, leads
Totally unrelated question....
25) A local radio station broadcasts
at the...
= 4.25 uF, and the inductance Consider a series RLC circuit where the resistance R = 753 12, the capacitance C L 15.0 mH. Determine the resonance frequency 0 of the circuit. 00 rad/s What is the maximum current Imax when the circuit is at resonance, if the amplitude of the AC driving voltage is 60.0 V? Imax = A
A series RLC circuit contains the following components. The resistance of the circuit is 200.0 D., the inductance is 230.0 mH, and the capacitance is 70.0 uF. There is a source with DeltaVmax = 36.0 V operating at 60.0 Hz. Find the following: The inductive reactance The capacitance reactance The impedance The maximum current The phasor angle Phi If you could choose a different inductor is it possible that the voltage across the inductor be greater than the source voltage...
In an RLC circuit, ? = 10 Ω, ? = 0.5 ??, and ? = 6.0 ??, the
current in the inductor is ?? = 12 ? sin(?? + 0.2). The circuit
operates at half of the resonance frequency.
a) Find the current in the resistor, capacitor and for the
entire circuit.
b) Find the voltage in the resistor, capacitor, and
inductor.
c) Find the emf of the AC source.
Will give great review for good answer.
2) In an...
