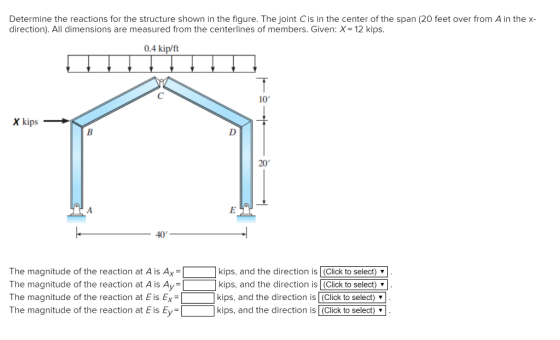

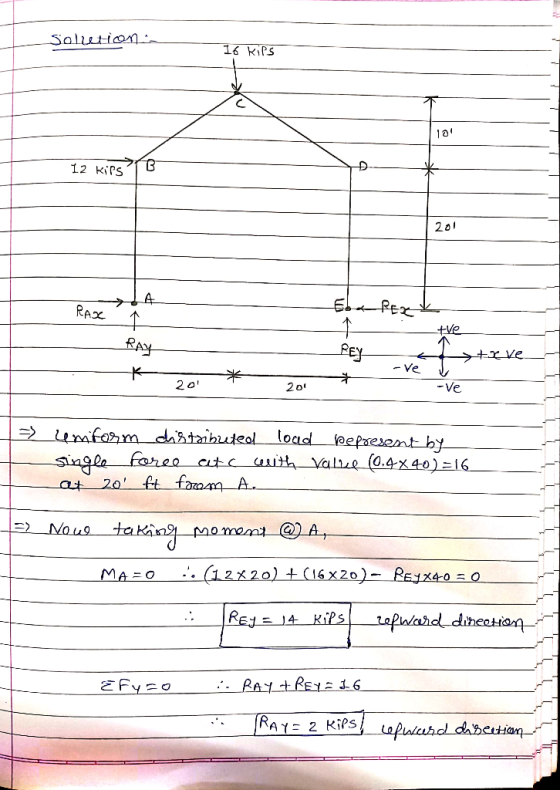

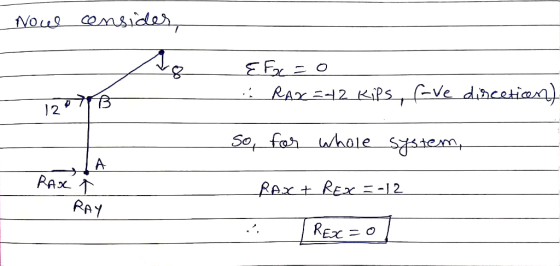

Determine the reactions for the structure shown in the figure. The joint Cis in the center of the span (20 feet over fr...
Determine the reactions for the structure shown below. Clearly
summarize the direction and magnitude of each reaction on a free
body diagram of the structure.
1.5 k/ft 12" 30 kips 100 k-ft 20' 10' 16' al
Use the graphical method to construct the shear-force and bending moment diagrams for the beam shown. Let a=4.0 ft, b=5.0 ft, c=5.0 ft,d=3.0 ft. w = 7.5 kips/ft and P = 30 kips. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. с D E b For this loading, calculate the reaction forces A, and E, acting on the beam. Positive values for the reactions...
For the beam shown, assume that ET-130 ,000 kip-ft2, P = 80 kips, and w = 4.5 kips/ft. Use discontinuity functions to determine (a) the reactions at A, C, and D (b) the beam deflection at B Assume LAB = LBC = 9.0 ft, LCD = 18.0 ft. AB CD Sum the forces in the y direction to find an expression that includes the reaction forces Ay, Cy, and Dy acting on the beam. Positive values for the reactions are...
STANDARD VIEW PRINTER VERSION BACK P8.037 GO Multipart The beam shown in Figure P8.37 will be constructed from a standard steel w shape using an allowable bending stress of 22 ksi. Assume Po=8.0 kips, Pc-13.5 kips, Po 4.0 kips and a-5 ft (a) Develop a list of five acceptable shapes that could be used for this beam. On this list, include the most economical W10, w12, w14, W16, and W18 shapes (b) Select the most economical W shape for this...
