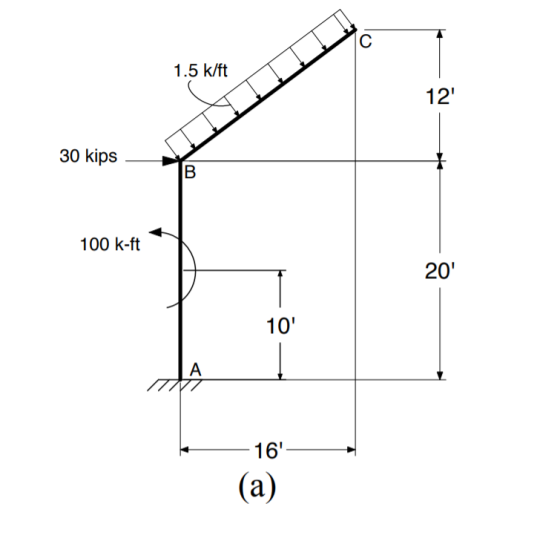

Determine the reactions for the structure shown below. Clearly
summarize the direction and magnitude of each reaction on a free
body diagram of the structure.

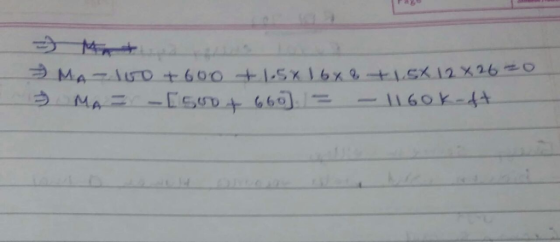

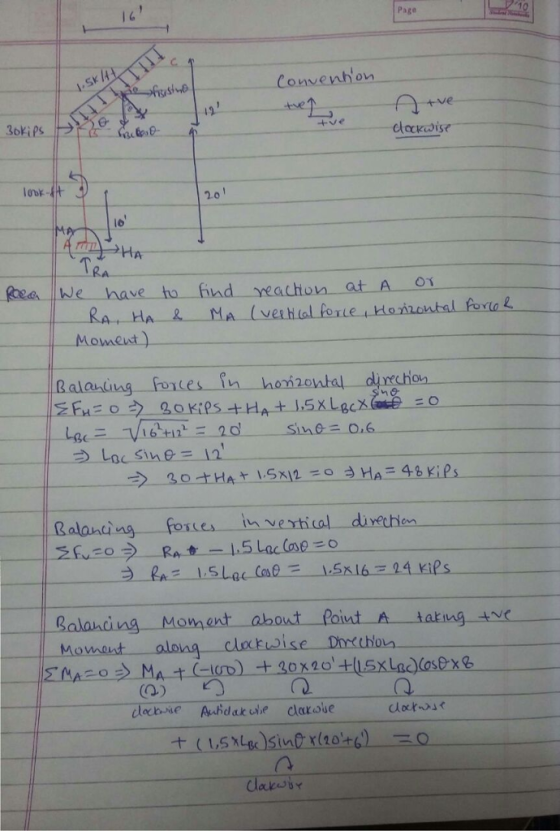

Homework Answers
Add Answer to:
Determine the reactions for the structure shown below. Clearly
summarize the direction and magnitude of each...
Determine the reactions for the structure shown in the figure. The joint Cis in the center of the span (20 feet over fr...
Determine the reactions for the structure shown in the figure. The joint Cis in the center of the span (20 feet over from A in the x- direction). All dimensions are measured from the centerlines of members. Given: X= 12 kips. 0.4 kip/ft 10 X kips 20 E 10 The magnitude of the reaction at A is Ay= kips, and the direction is (Click to select)v kips, and the direction is (Click to select) ' kips, and the direction is...
Draw free body diagrams and determine all support reactions (magnitude, units, and direction) and force in...
Draw free body diagrams and determine all support reactions (magnitude, units, and direction) and force in cable CB. For RISA-2D, consider the cable as a member but release both ends. 2 k/ft8 kips 10 ft 6 ft 4 ft
Determine the reactions at A and B of the simple bracket shown. Neglect the self-weight of the members. For stability, there are pin supports at A and B. Indicate the magnitude and direction of...
Determine the reactions at A and B of the simple bracket shown. Neglect the self-weight of the members. For stability, there are pin supports at A and B. Indicate the magnitude and direction of the reaction forces. Show all free body diagrams and the equations associated with each free body diagram. 1500 lb ANSWER HERE Reactions at A 10" Reactions at B 4500 lb 7850 # 10 3.5' 10"
Determine the reactions at A and B of the simple bracket...
Determine the magnitude and direction of all support reactions for the pin-jointed structure shown below. Ax=?...
Determine the magnitude and
direction of all support reactions for the pin-jointed structure
shown below.
Ax=?
Ay=?
Dx=?
Dy=?
Md=?
450 b T B 3h C 8 ft 4h 4h D
1. For the truss structure shown below, determine a. b. The reaction forces at D and...
1. For the truss structure shown below, determine a. b. The reaction forces at D and F The force in each truss member. Indicate whether each is in tension or compression. 1 kip I kip 6.4 ft 24 kips 12 ft 12 ft
1) Draw a free body diagram of the figures and determine the reactions for each of...
1) Draw a free body diagram of the figures and determine the reactions for each of these. Cables can still only hold axial loads 15 in B 10 TEOTTI 5 kips 30° 2 kips
Problem 2: Calculation of Support Reactions One frame of a single-story gable-roofed structure is shown below...
Problem 2: Calculation of Support Reactions One frame of a single-story gable-roofed structure is shown below with distributed loads due to wind. The supports at A and E are fixed, and hinges are present at joints B, C, and D. Determine the support reactions at A and E considering the wind load shown 1.5 kip/ft 1.5 kip/ft 9 ft 12 ft 2.8 kip/ftB 1.5 kip/ft 12 ft -30 ft
For the truss shown below determine the force in each member given that the connectors are...
For the truss shown below determine the force in each member given that the connectors are a frictionless pin at A and a frictionless roller at D. State if the members are in tension or compression. 3 kips 12 ft 99 30° 10 ft- -10 ft- -10 ft- - 5 kips 10 kips
1) Determine the reactions at the supports for the structures shown. The support at A is...
1) Determine the reactions at the supports for the structures shown. The support at A is a Roller and the support at B is a Pin. 2.0 k/ft M 10 k- 3.0 k/ft 12 ft 25 k- 25k-Pokift 15 ft B! 1 F20ft- 2) 2 3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Hinge-B ce Dl Hinge...
Please find all reactions with Moment Distribution Method & draw shear/moment diagrams. Please show all work. Thank you in advance! Problem #2: For the indeterminate beam shown below: a) Determin...
Please find all reactions with Moment Distribution Method &
draw shear/moment diagrams. Please show all work. Thank you in
advance!
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw shear and moment diagrams. El is constant. Show your work. 18 kips 24 kips 6 k/ft 16 k/ft 10ft 12 ft 12ft
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw...
Determine the reactions for the structure shown in the figure. The joint Cis in the center of the span (20 feet over from A in the x- direction). All dimensions are measured from the centerlines of members. Given: X= 12 kips. 0.4 kip/ft 10 X kips 20 E 10 The magnitude of the reaction at A is Ay= kips, and the direction is (Click to select)v kips, and the direction is (Click to select) ' kips, and the direction is...
Draw free body diagrams and determine all support reactions (magnitude, units, and direction) and force in cable CB. For RISA-2D, consider the cable as a member but release both ends. 2 k/ft8 kips 10 ft 6 ft 4 ft
Determine the reactions at A and B of the simple bracket shown. Neglect the self-weight of the members. For stability, there are pin supports at A and B. Indicate the magnitude and direction of the reaction forces. Show all free body diagrams and the equations associated with each free body diagram. 1500 lb ANSWER HERE Reactions at A 10" Reactions at B 4500 lb 7850 # 10 3.5' 10"
Determine the reactions at A and B of the simple bracket...
Determine the magnitude and
direction of all support reactions for the pin-jointed structure
shown below.
Ax=?
Ay=?
Dx=?
Dy=?
Md=?
450 b T B 3h C 8 ft 4h 4h D
1. For the truss structure shown below, determine a. b. The reaction forces at D and F The force in each truss member. Indicate whether each is in tension or compression. 1 kip I kip 6.4 ft 24 kips 12 ft 12 ft
1) Draw a free body diagram of the figures and determine the reactions for each of these. Cables can still only hold axial loads 15 in B 10 TEOTTI 5 kips 30° 2 kips
Problem 2: Calculation of Support Reactions One frame of a single-story gable-roofed structure is shown below with distributed loads due to wind. The supports at A and E are fixed, and hinges are present at joints B, C, and D. Determine the support reactions at A and E considering the wind load shown 1.5 kip/ft 1.5 kip/ft 9 ft 12 ft 2.8 kip/ftB 1.5 kip/ft 12 ft -30 ft
For the truss shown below determine the force in each member given that the connectors are a frictionless pin at A and a frictionless roller at D. State if the members are in tension or compression. 3 kips 12 ft 99 30° 10 ft- -10 ft- -10 ft- - 5 kips 10 kips
1) Determine the reactions at the supports for the structures shown. The support at A is a Roller and the support at B is a Pin. 2.0 k/ft M 10 k- 3.0 k/ft 12 ft 25 k- 25k-Pokift 15 ft B! 1 F20ft- 2) 2 3 k/ft A beam is supported at points A, C, and E, and is loaded as shown. The support at A is fixed. The supports at C and E are rollers. Hinge-B ce Dl Hinge...
Please find all reactions with Moment Distribution Method &
draw shear/moment diagrams. Please show all work. Thank you in
advance!
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw shear and moment diagrams. El is constant. Show your work. 18 kips 24 kips 6 k/ft 16 k/ft 10ft 12 ft 12ft
Problem #2: For the indeterminate beam shown below: a) Determine all reactions using the Moment Distribution Method. b) Draw...
