Set R = 190 Ω, C = 58.1 μF, L = 242 mH, fd = 60.0 Hz, and εm = 5.77 V. What are (a) Z, (b) φ, and (c) I?

Question

Question

science physics

Answer 1

Answer #1

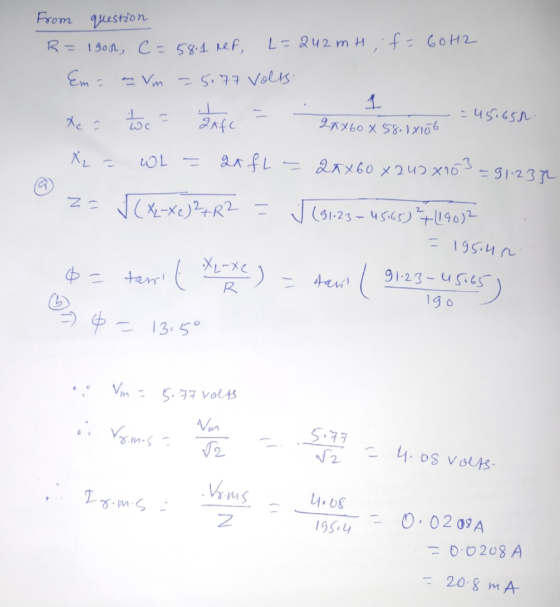

From question R=1gon, C=58.1 nef, L=242mH; f= 60H2 Em = = Vm = 5.77 volts. -=45.650 Xe hoc = Afc - Sax 60 x 58.18106 X = L =

Answer 2

Similar Homework Help Questions

In the figure, R = 12 Ω, C =8 μF, and L = 3 mH, and...

In the figure, R = 12 Ω, C =8 μF, and L = 3 mH, and the ideal battery has emf = 32 V. The switch is kept in position a for a long time and then thrown to position b. What are (a) the maximum charge in the capacitor plates? (b) the angular frequency of the charge oscillations? (c) the maximum value of the current in the circuit? (d) the maximum electromagnetic energy in the circuit? WHE R a...
In the figure below, let R=7.10 Ω, L=2.30 mH, and C=2.00 μF.

In the figure below, let R=7.10 Ω, L=2.30 mH, and C=2.00 μF.(a) Calculate the frequency of the damped oscillation of the circuit when the switch is thrown to position b.(b) What is the critical resistance for damped oscillations?
In an RLC circuit such as that of the figure assume that R = 5.12 Ω,...

In an RLC circuit such as that of the figure assume that R = 5.12 Ω, L = 70.3 mH, fd = 87.7 Hz, and εm = 38.2 V. For what values of the capacitance would the average rate at which energy is dissipated in the resistance be (a) a maximum and (b) a minimum? What are (c) the maximum dissipation rate and the corresponding (d) phase angle and (e)power factor? What are (f) the minimum dissipation rate and the...

In an RLC circuit such as that of the figure assume that R = 5.20 Ω,...

In an RLC circuit such as that of the figure assume that R = 5.20 Ω, L = 45.2 mH, fd = 54.5 Hz, and εm = 37.8 V. For what values of the capacitance would the average rate at which energy is dissipated in the resistance be (a) a maximum and (b) a minimum? What are (c) the maximum dissipation rate and the corresponding (d) phase angle and (e) power factor? What are (f) the minimum dissipation rate and...
A coil (L = 94.1 mH), a resistor (R = 31 Ω), a capacitor (C =...

A coil (L = 94.1 mH), a resistor (R = 31 Ω), a capacitor (C = 98.6 μF) and an A.C. source (52.9 V, 84.4 Hz) are connected in series. Find the rms power, in W, dissipated by the circuit. NOTE: If the voltage of an A.C. power source is given without specification, it is rms. For example: a "10 V A.C. power source" an output voltage of 10 V rms.
In an RLC circuit such as that of the figure assume that R = 3.99 Ω,...

In an RLC circuit such as that of the figure assume that R = 3.99 Ω, L = 77.8 mH, fd = 79.4 Hz, and εm = 31.2 V. For what values of the capacitance would the average rate at which energy is dissipated in the resistance be (a) a maximum and (b) a minimum? What are (c) the maximum dissipation rate and the corresponding (d) phase angle and (e) power factor? What are (f) the minimum dissipation rate and...

5. In an RLC series circuit R = 10.0 Ω, C = 8.00 μF, L =...

5. In an RLC series circuit R = 10.0 Ω, C = 8.00 μF, L = 0.200 H, ω,-800 rads, -200 v a. Find ms b. Find the impedance Z of this circuit and the steady-state current amplitude I in the circuit. c. Find the phase φ of the steady-state current and the power factor for this circuit. Is the load of this circuit resistive, inductive or capacitive? d. Find the average rate at which power is dissipated in the...
