Answer

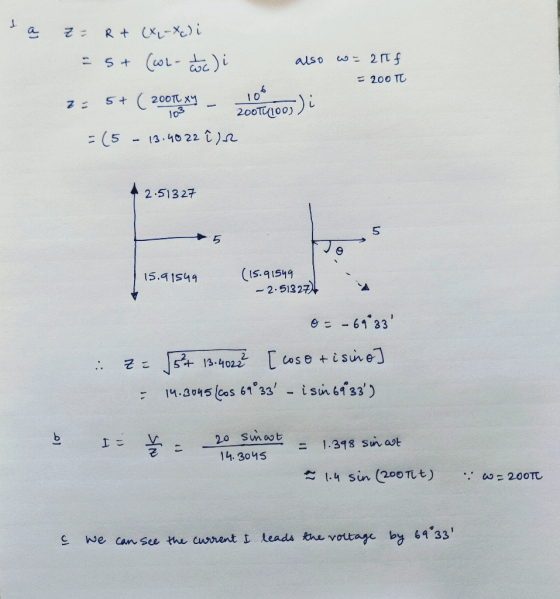

a) 5 − 13.41j, 14.31(cos(69◦33′) − i sin(69◦33′))
b) 1.40sin200pit
(c) leads by 69◦33′
Homework Answers
Add Answer to:

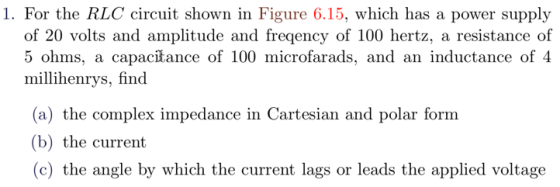

Answer a) 5 − 13.41j, 14.31(cos(69◦33′) − i sin(69◦33′)) b) 1.40sin200pit (c) leads by 69◦33′ 1. For the RLC circuit sh...
J# 10: 29:2018: Monday Show all steps for full credit. 1. What is the resonance frequency...
J# 10: 29:2018: Monday Show all steps for full credit. 1. What is the resonance frequency of an LC circuit consisting of a capacitor of s microfarads and a 0.06 Henries. inductor? Lc 2. In a RLC series circuit, the rms voltage of the ac power supply is 120 Volts. The frequency is 45 Hertz. It has a resistance of 100 ohms and a capacitance of 60 micro farads and inductance of 65milli henries. Calculate a) the inductive reactance b)...
Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm,...
Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz the total impedance is Question 13 options: less than 100Ohm Is more than 100Ohm Is within 1% of 100 Ohm Is not within 1% of 100Ohm Question 14 (1 point) Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is...
We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance ...
We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz What is true? Question 10 options: The current through the inductor is larger than through the resistor The voltage across the inductor is larger than the voltage across the capacitor The voltage is lagging behind the current at the source The voltage and the current are in phase at the...
Help A series RLC circuit has components with the following values: L = 16.0 mH. C...
Help
A series RLC circuit has components with the following values: L = 16.0 mH. C = 82.0 nF, R = 15.0 ohm, and Delta V_max = 100 V, with Delta v = Delta V_max sin omega t. Find the resonant frequency of the circuit. 4.3939e03 Resonance occurs when the impedance is at a minimum. kHz Find the amplitude of the current at the resonant frequency. 6.67 A Find the Q of the circuit. 2.68 How is the Q related...
1. L RC Circuit. An AC circuit has an inductance L -5 mH, a resistance of...
1. L RC Circuit. An AC circuit has an inductance L -5 mH, a resistance of 8.5 Ohms, and a capacitance of 1 mF. It is driven by a sinusoidal signal at a frequency of f 100 Hz. Calculate (a) the inductive reactance, XL: (b) the capacitive reactance Xc: (c) the magnitude of the impedance Z: (d) the resonant frequeney in Hertz, and (e) the phase of the resulting current.
Plz answer the questions below. Checkpoint Lecture Th Circuit I CircuitI 2L - Optional C/2 sin(ot) E sin(ot) Consider t...
Plz answer the questions below.
Checkpoint Lecture Th Circuit I CircuitI 2L - Optional C/2 sin(ot) E sin(ot) Consider two RLC circuits with identical generators and resistors. Both circuits are driven at the resonant frequency. Circuit Il has twice the inductance and 1/2 the capacitance of circuit I as shown above 1) Compare the peak voltage across the resistor in the two circuits Submit (Survey Question) 2) Briefly explain your reasoning Submit 3) Compare the peak voltage across the inductor...
1. Answer the following questions: 1. An RLC circuit is used in a radio to tune...
1. Answer the following questions: 1. An RLC circuit is used in a radio to tune into an FM station broadcasting at f = 99.7 MHz. The resistance in the circuit is R = 12.6 Ω, and the inductance is L = 1.70 µH. What capacitance should be used? 2. Consider a series RLC circuit with R = 15 ohm, L = 206 mH, C = 75 µF, and a maximum voltage of 147 V. (a) What is the impedance...
(2 points) Two driven inductors A R = 1 kΩ resistor, a L1 = 20 mH...
(2 points) Two driven inductors A R = 1 kΩ resistor, a L1 = 20 mH inductor and a L2 28 mH inductor are connected in series. A funtion generator drives the circuit with a 5 Vpp variable frequency sine wave. (a) What is the equivalent impedance Zeq of this circuit? O A. R +jwLIL2/(L1+ L2) E. None of these (b) For what angular frequency does |Zoq v2 R? 20833.3 radians/sec (c) What is the peak-to-peak value of the voltage...
Need help with B to D, Thank you!! RLC circuit (2) 5 of 10 > Review...
Need help with B to D, Thank you!!
RLC circuit (2) 5 of 10 > Review | Constants Learning Goal: To calculate and use complex impedance. A 25.0-9 resistor, 50 mH inductor, and 200 uF capacitor are connected as shown below to an AC voltage source with amplitude 100 V and w=200 5-1. R mat L mm Part A - Impedance of R-C Find the complex impedance of the R-C combination, in . Format: Since Z = R + Xj,...
Exercise 31.13 - Enhanced - with Feedback You have a resistor of resistance 1902, an inductor...
Exercise 31.13 - Enhanced - with Feedback You have a resistor of resistance 1902, an inductor of inductance 0.450 H, a capacitor of capacitance 6.40 pF and a voltage source that has a voltage amplitude of 26.0 V and an angular frequency of 300 rad/s. The resistor, inductor, capacitor, and voltage source are connected to form an L-R-C series circuit. Part A What is the impedance of the circuit? Express your answer in ohms. VOI ΑΣΦ FR ? Z= 12...
J# 10: 29:2018: Monday Show all steps for full credit. 1. What is the resonance frequency of an LC circuit consisting of a capacitor of s microfarads and a 0.06 Henries. inductor? Lc 2. In a RLC series circuit, the rms voltage of the ac power supply is 120 Volts. The frequency is 45 Hertz. It has a resistance of 100 ohms and a capacitance of 60 micro farads and inductance of 65milli henries. Calculate a) the inductive reactance b)...
Help
A series RLC circuit has components with the following values: L = 16.0 mH. C = 82.0 nF, R = 15.0 ohm, and Delta V_max = 100 V, with Delta v = Delta V_max sin omega t. Find the resonant frequency of the circuit. 4.3939e03 Resonance occurs when the impedance is at a minimum. kHz Find the amplitude of the current at the resonant frequency. 6.67 A Find the Q of the circuit. 2.68 How is the Q related...
1. L RC Circuit. An AC circuit has an inductance L -5 mH, a resistance of 8.5 Ohms, and a capacitance of 1 mF. It is driven by a sinusoidal signal at a frequency of f 100 Hz. Calculate (a) the inductive reactance, XL: (b) the capacitive reactance Xc: (c) the magnitude of the impedance Z: (d) the resonant frequeney in Hertz, and (e) the phase of the resulting current.
Plz answer the questions below.
Checkpoint Lecture Th Circuit I CircuitI 2L - Optional C/2 sin(ot) E sin(ot) Consider two RLC circuits with identical generators and resistors. Both circuits are driven at the resonant frequency. Circuit Il has twice the inductance and 1/2 the capacitance of circuit I as shown above 1) Compare the peak voltage across the resistor in the two circuits Submit (Survey Question) 2) Briefly explain your reasoning Submit 3) Compare the peak voltage across the inductor...
(2 points) Two driven inductors A R = 1 kΩ resistor, a L1 = 20 mH inductor and a L2 28 mH inductor are connected in series. A funtion generator drives the circuit with a 5 Vpp variable frequency sine wave. (a) What is the equivalent impedance Zeq of this circuit? O A. R +jwLIL2/(L1+ L2) E. None of these (b) For what angular frequency does |Zoq v2 R? 20833.3 radians/sec (c) What is the peak-to-peak value of the voltage...
Need help with B to D, Thank you!!
RLC circuit (2) 5 of 10 > Review | Constants Learning Goal: To calculate and use complex impedance. A 25.0-9 resistor, 50 mH inductor, and 200 uF capacitor are connected as shown below to an AC voltage source with amplitude 100 V and w=200 5-1. R mat L mm Part A - Impedance of R-C Find the complex impedance of the R-C combination, in . Format: Since Z = R + Xj,...
Exercise 31.13 - Enhanced - with Feedback You have a resistor of resistance 1902, an inductor of inductance 0.450 H, a capacitor of capacitance 6.40 pF and a voltage source that has a voltage amplitude of 26.0 V and an angular frequency of 300 rad/s. The resistor, inductor, capacitor, and voltage source are connected to form an L-R-C series circuit. Part A What is the impedance of the circuit? Express your answer in ohms. VOI ΑΣΦ FR ? Z= 12...
