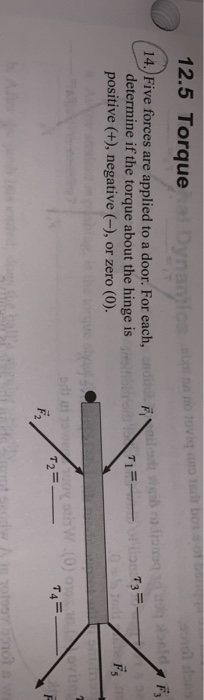

bot o ns 12.5 Torque чее Dynamics n a na no loving to es are applied...
Calculate the net torque about point o for the two forces applied as in the figure

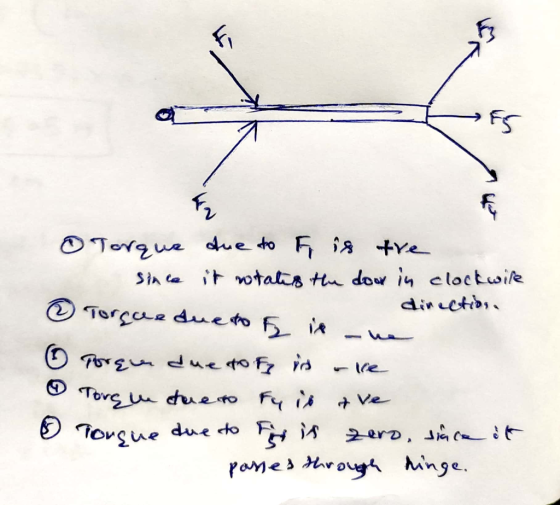

1. Calculate the net torque about point o for the two forces applied as in the figure. The rod and both forces are in the plane of the page. Take positive torques to be counterclockwise. 2. A square metal plate 0.180 m on each side is pivoted about an axis through point center and perpendicular to the plate. Calculate the net torque about this axis due to the three forces shown in the figure if the magnitudes of the forces are...
dynamics A force of P = 60 N is applied to the cable, which causes the...
dynamics
A force of P = 60 N is applied to the cable, which causes the 230-kg reel to turn since it is resting on the two rollers A and B of the dispenser, Neglect the mass of the rollers and the mass of the cable. Assume the radius of Gyration of the reel about its center axis remains constant at ko 0.6 m. (Figure 1) Part A Determine the angular velocity of the real measured clockwise, after it has...
k c M mm] F M = 70kg C = 1 Ns/m k = 26N/m FO...
k c M mm] F M = 70kg C = 1 Ns/m k = 26N/m FO = 5N/S a = 9s (duration of the couple in seconds) b = 45N (magnitude of the step in N) z = 2.4 (zero of the controller) p = 4.3 (pole of the controller) 1. Determine the transfer function of the system where force F is the input and displacement is the output variable. 2. Draw the block diagram of the system indicating clearly...
Shaft AB consists of n homogeneous cylindrical elements, which can be solid or hollow. Both of...
Shaft AB consists of n homogeneous cylindrical elements, which can be solid or hollow. Both of its ends are fixed, and it is subjected to the loading shown. The length of element i is denoted by i,its outer diameter by OD, its inner diameter by ID, its modulus of rigidity by G, and the torque applied to its right end by T, the magnitude T of this torque being assumed to be positive if T is observed as counterclockwise from...
The 185-N force is applied as shown to one end of the curved wrench. If a...
The 185-N force is applied as shown to one end of the curved wrench. If a = 36° calculate the moment of Fabout the center of the bolt. Determine the value of a (0<a< 90°) which would maximize the magnitude of the moment about O, state the value of this maximum moment. The moments are positive if counterclockwise, negative if clockwise. F = 185 N 28 mm 1 138 mm 62 mm 62 mm 28 mm Answers: Mo= i Nem...
Analysis of Collisions - Impulse & Momentum Lab Name Group# Course/Section Instructor Table, Mass of Dynamics...
Analysis of Collisions - Impulse & Momentum Lab Name Group# Course/Section Instructor Table, Mass of Dynamics Cart 0.50193 kg Thick Spring Thin Spring Rubber Bumper 0.684 m/s Vi 0.643 m/s 0.647 m/s mvi 0.3433 kg m/s -0.400 m/s 0.3227 kg m/s -0.533 m/s Vf 0.3247 kg/s -0.626 m/s -0.3142 kg m/s 0.6389 kg m/s mvf -0.2007 kg m/s -0.544 kg m/s -0.2675 kg m/s 0.5902 kg m/s p 0.524 Ns 0.612 Ns 0.678 Ns 2.294 s 1.962 s 1.842 s...
Introduction Many doors in public places are fitted with simple and inexpensive mechanisms that are designed...
Introduction Many doors in public places are fitted with simple and inexpensive mechanisms that are designed to close the doors while reducing the slamming force to a minimum. Figure 1 Figure 1 depicts one such mechanism while Figure 2 provides a schematic description. The spring is mounted in order to push the door back to close once it is opened. The role of the hydraulic dashpot is to provide a viscous force that will prevent the door from slamming against...
a simulation was used to recreate the lab. Toys for a Torque Weighted Ruler 1. Set...
a simulation was used to recreate the lab.
Toys for a Torque Weighted Ruler 1. Set up a balanced weighted ruler system with two different known masses suspended in cradles at different positions on the same side of the meter stick, balanced by a third unknown weight, warunk on the other side, keeping the pivot at the center of the ruler. Weigh the hanging scales, clips, and masses. You will use torques to determine the weight of the unknown, Wink....
Introduction Many doors in public places are fitted with simple and inexpensive mechanisms that are designed...
Introduction Many doors in public places are fitted with simple and inexpensive mechanisms that are designed to close the doors while reducing the slamming force to a minimum. Figure 1 Figure 1 depicts one such mechanism while Figure 2 provides a schematic description. The spring is mounted in order to push the door back to close once it is opened. The role of the hydraulic dashpot is to provide a viscous force that will prevent the door from slamming against...
To obtain format on o the comes on esistance proper es of a certain type of...
To obtain format on o the comes on esistance proper es of a certain type of sted con t, 45 speamens are buried in soil or a 2-yaar penod. The ma mum penetration in m s or each specmen s then measured y na a sample average pen tration o x = 52.9 and a sample standard de ation at s 4 i The conduits were manifac red viltn the snec cation that true averaQA penetratiถn e at most sn...
dynamics
A force of P = 60 N is applied to the cable, which causes the 230-kg reel to turn since it is resting on the two rollers A and B of the dispenser, Neglect the mass of the rollers and the mass of the cable. Assume the radius of Gyration of the reel about its center axis remains constant at ko 0.6 m. (Figure 1) Part A Determine the angular velocity of the real measured clockwise, after it has...
k c M mm] F M = 70kg C = 1 Ns/m k = 26N/m FO = 5N/S a = 9s (duration of the couple in seconds) b = 45N (magnitude of the step in N) z = 2.4 (zero of the controller) p = 4.3 (pole of the controller) 1. Determine the transfer function of the system where force F is the input and displacement is the output variable. 2. Draw the block diagram of the system indicating clearly...
Shaft AB consists of n homogeneous cylindrical elements, which can be solid or hollow. Both of its ends are fixed, and it is subjected to the loading shown. The length of element i is denoted by i,its outer diameter by OD, its inner diameter by ID, its modulus of rigidity by G, and the torque applied to its right end by T, the magnitude T of this torque being assumed to be positive if T is observed as counterclockwise from...
The 185-N force is applied as shown to one end of the curved wrench. If a = 36° calculate the moment of Fabout the center of the bolt. Determine the value of a (0<a< 90°) which would maximize the magnitude of the moment about O, state the value of this maximum moment. The moments are positive if counterclockwise, negative if clockwise. F = 185 N 28 mm 1 138 mm 62 mm 62 mm 28 mm Answers: Mo= i Nem...
Analysis of Collisions - Impulse & Momentum Lab Name Group# Course/Section Instructor Table, Mass of Dynamics Cart 0.50193 kg Thick Spring Thin Spring Rubber Bumper 0.684 m/s Vi 0.643 m/s 0.647 m/s mvi 0.3433 kg m/s -0.400 m/s 0.3227 kg m/s -0.533 m/s Vf 0.3247 kg/s -0.626 m/s -0.3142 kg m/s 0.6389 kg m/s mvf -0.2007 kg m/s -0.544 kg m/s -0.2675 kg m/s 0.5902 kg m/s p 0.524 Ns 0.612 Ns 0.678 Ns 2.294 s 1.962 s 1.842 s...
Introduction Many doors in public places are fitted with simple and inexpensive mechanisms that are designed to close the doors while reducing the slamming force to a minimum. Figure 1 Figure 1 depicts one such mechanism while Figure 2 provides a schematic description. The spring is mounted in order to push the door back to close once it is opened. The role of the hydraulic dashpot is to provide a viscous force that will prevent the door from slamming against...
a simulation was used to recreate the lab.
Toys for a Torque Weighted Ruler 1. Set up a balanced weighted ruler system with two different known masses suspended in cradles at different positions on the same side of the meter stick, balanced by a third unknown weight, warunk on the other side, keeping the pivot at the center of the ruler. Weigh the hanging scales, clips, and masses. You will use torques to determine the weight of the unknown, Wink....
Introduction Many doors in public places are fitted with simple and inexpensive mechanisms that are designed to close the doors while reducing the slamming force to a minimum. Figure 1 Figure 1 depicts one such mechanism while Figure 2 provides a schematic description. The spring is mounted in order to push the door back to close once it is opened. The role of the hydraulic dashpot is to provide a viscous force that will prevent the door from slamming against...
To obtain format on o the comes on esistance proper es of a certain type of sted con t, 45 speamens are buried in soil or a 2-yaar penod. The ma mum penetration in m s or each specmen s then measured y na a sample average pen tration o x = 52.9 and a sample standard de ation at s 4 i The conduits were manifac red viltn the snec cation that true averaQA penetratiถn e at most sn...
