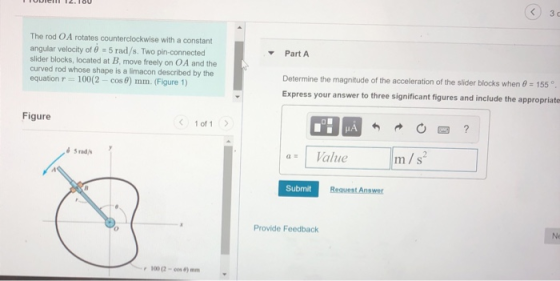

The rod OA rotates counterclockwise with a constant angular velocity of 0 5 rad/s. Two pin-connected...

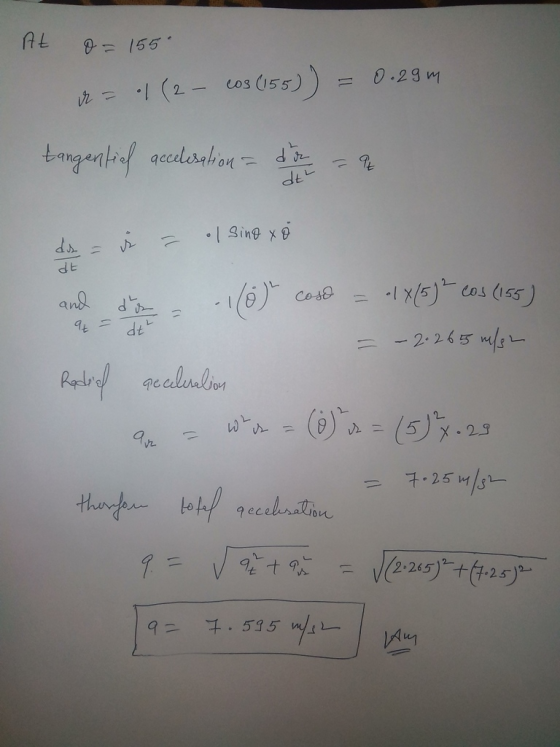

The rod OA rotates clockwise with a constant angular velocity of 6 rad/s. Two pin-connected slider blocks, locat...
The rod OA rotates clockwise with a constant angular velocity of 6 rad/s. Two pin-connected slider blocks, located at B, move freely on OA and the curved rod whose shape is a limacon described by the equation r = 200(2 - cos θ) mm (Figure 1) Part A Determine the speed of the slider blocks at the instant θ = 115°. Express your answer to three significant figures and include the appropriate units.
Rod OA rotates counterclockwise with a constant angular velocity of θ = 5 rad/s
Rod OA rotates counterclockwise with a constant angular velocity of θ = 5 rad/s. The double collar B is pin-connected together such that one collar slides over the rotating rod and the other slides over the horizontal curved rod, of which the shape is described by the equation r = 1.5(2-cosθ)ft. (Figure 1) Part AIf both collars weigh 0.80 lb, determine the magnitude of the normal force which the curved rod exerts on one collar at the instant θ = 135°....
12 of 11 > Rod AB rotates counterclockwise with a constant angular velocity w 3 rad/s....
12 of 11 > Rod AB rotates counterclockwise with a constant angular velocity w 3 rad/s. The collar consists of two pin-connected slider blocks which are constrained to move along the circular path and the red AB. Suppose that r=0.2 m (Figure 1) Review Determine the r and y components of the velocity of point located on the double collar when Express your answers using three significant figures separated by a comma : 15wing scale notation oe? 10 AED! vec...
Rod OA rotates counterclockwise at a constant angular rate 4 rad/s. The double collar B is...
Rod OA rotates counterclockwise at a constant angular rate θ = 4 rad/s. The double collar B is pin-connected together such that one collar slides over the rotating rod and the other collar slides over the circular rod described by the equation r = (1.6 cos θ) m. If both collars have mass of 0.5 kg, determine the force which the circular rod exerts on one of the collars and the force that OA exerts on the other collar at...
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration...
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration oAB of link AB for the position shown. The angular acceleration is positive if counterclockwise, negative if clockwise 65 mm 13.6 radls 0 AB 135 mm Answers: OAB rad/s2
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular...
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular acceleration Coc = 2.8 rad/s2. The bar OC is a slotted member which accommodates the pin A attached to the sector. Determine the angular velocity w and the angular acceleration a of the sector. The angular velocity and the angular acceleration are positive if counterclockwise, negative if clockwise. 31 B 305 mm DOC 11 doc OA = 380 mm Answers: rad/s rad/s2 Bar OC...
r = 16 cos e 6 = 4 rad/s B Rod OA rotates counterclockwise at a...
r = 16 cos e 6 = 4 rad/s B Rod OA rotates counterclockwise at a constant angular rate 0 = 4 rad/s. The double collar B is pin-connected together such that one collar slides over the rotating rod and the other collar slides over the circular rod described by the equation r = (1.6 cos ) m. If both collars have a mass of 0.5 kg, determine the force which the circular rod exerts on one of the collars...
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this...
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this article, determine the angular velocity w of link AB and the velocity of roller for the position illustrated. The angular velocity is positive if counterclockwise, negative if clockwise. Also, find the magnitude of the velocity of the center of link AB. B 65 mm 11.5 rad/s 50 mm AB.135 mm The instantaneous center of body OA is at O. The velocity of Ais vertical...
Bar OC rotates with a clockwise angular velocity Woc = 7.9 rad/s. The pin A attached...
Bar OC rotates with a clockwise angular velocity Woc = 7.9 rad/s. The pin A attached to bar OC engages the straight slot of the sector. Determine the angular velocity w of the sector and the velocity Vrel of pin A relative to the sector for the instant represented. The angular velocity is positive if counterclockwise, negative if clockwise. The relative velocity is positive if to the right, negative if to the left. 340 mm O B WOC OA =...
Bar OA has a counterclockwise angular velocity wo = 3.4 rad/s. Rod BC slides freely through...
Bar OA has a counterclockwise angular velocity ω0 = 3.4 rad/s. Rod BC slides freely through the pivoted collar attached to OA. Determine the angular velocity ωBC of rod BC (positive if counterclockwise, negative if clockwise) and the velocity Vrel of collar A relative to rod BC (positive if moving from B to C, negative if it moves from C towards B).
12 of 11 > Rod AB rotates counterclockwise with a constant angular velocity w 3 rad/s. The collar consists of two pin-connected slider blocks which are constrained to move along the circular path and the red AB. Suppose that r=0.2 m (Figure 1) Review Determine the r and y components of the velocity of point located on the double collar when Express your answers using three significant figures separated by a comma : 15wing scale notation oe? 10 AED! vec...
Crank OA rotates with a constant counterclockwise angular velocity of 13.6 rad/s. Determine the angular acceleration oAB of link AB for the position shown. The angular acceleration is positive if counterclockwise, negative if clockwise 65 mm 13.6 radls 0 AB 135 mm Answers: OAB rad/s2
Bar OC rotates with a clockwise angular velocity woc = 3.3 rad/s and a counterclockwise angular acceleration Coc = 2.8 rad/s2. The bar OC is a slotted member which accommodates the pin A attached to the sector. Determine the angular velocity w and the angular acceleration a of the sector. The angular velocity and the angular acceleration are positive if counterclockwise, negative if clockwise. 31 B 305 mm DOC 11 doc OA = 380 mm Answers: rad/s rad/s2 Bar OC...
r = 16 cos e 6 = 4 rad/s B Rod OA rotates counterclockwise at a constant angular rate 0 = 4 rad/s. The double collar B is pin-connected together such that one collar slides over the rotating rod and the other collar slides over the circular rod described by the equation r = (1.6 cos ) m. If both collars have a mass of 0.5 kg, determine the force which the circular rod exerts on one of the collars...
Crank OA rotates with a counterclockwise angular velocity of 11.5 rad/s. By the method of this article, determine the angular velocity w of link AB and the velocity of roller for the position illustrated. The angular velocity is positive if counterclockwise, negative if clockwise. Also, find the magnitude of the velocity of the center of link AB. B 65 mm 11.5 rad/s 50 mm AB.135 mm The instantaneous center of body OA is at O. The velocity of Ais vertical...
Bar OC rotates with a clockwise angular velocity Woc = 7.9 rad/s. The pin A attached to bar OC engages the straight slot of the sector. Determine the angular velocity w of the sector and the velocity Vrel of pin A relative to the sector for the instant represented. The angular velocity is positive if counterclockwise, negative if clockwise. The relative velocity is positive if to the right, negative if to the left. 340 mm O B WOC OA =...
