Add Answer to:

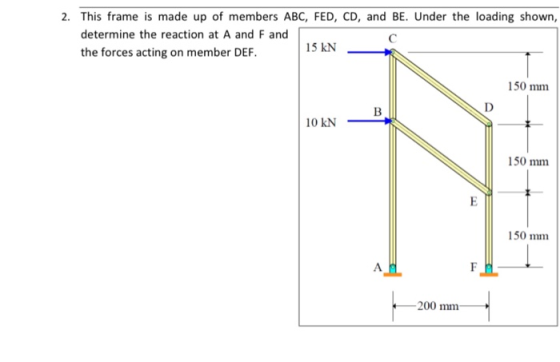

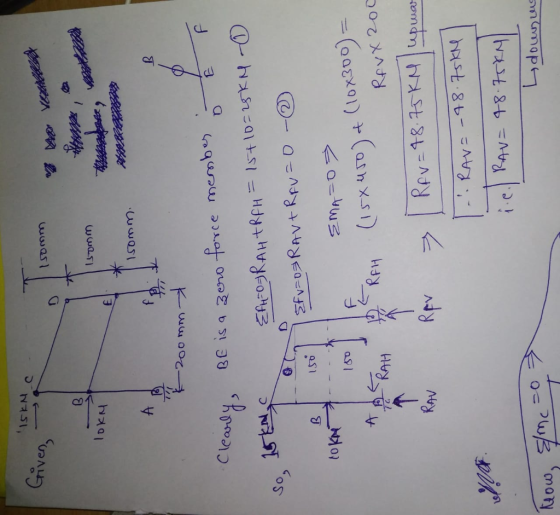

2. This frame is made up of members ABC, FED, CD, and BE. Under the loading...
Q.3) In the frame shown, members AB, BC, CD, DEF and AF are pin-connected and supported by rollens at C, F and a pin support at D. Det ermine all support reactions and forces acting on members DE...
Q.3) In the frame shown, members AB, BC, CD, DEF and AF are pin-connected and supported by rollens at C, F and a pin support at D. Det ermine all support reactions and forces acting on members DEP and DC 2 3 kN/m 10. 2 m 2 m 2
Q.3) In the frame shown, members AB, BC, CD, DEF and AF are pin-connected and supported by rollens at C, F and a pin support at D. Det ermine all support...
AB length is 4000mm AD length is 3000mm A pin jointed frame ABCD is supported by...
AB length is 4000mm
AD length is 3000mm
A pin jointed frame ABCD is supported by a pinned support at A, a roller at B and is subjected to the loading indicated in Figure Q1. All members have circular cross-section and all are made of steel materials with same cross-section. Determine the support reactions at A and B Determine all the member forces Find out the horizontal displacement at point C using a table template as shown in Table Q1....
PlOBlem 4 (10 points) 2 m 3 m The frame is made up of members ACE, BCD and DE. The frame is pin- 6 m supported at A...
PlOBlem 4 (10 points) 2 m 3 m The frame is made up of members ACE, BCD and DE. The frame is pin- 6 m supported at A and roller-supported at B. On member ACE, determine the 2 m magnitudes and directions of forces acting at pins C and E Hint: Begin with overall free body 3 m diagram 600 N 5 m
PlOBlem 4 (10 points) 2 m 3 m The frame is made up of members ACE, BCD...
The frame shown consists of four wooden members, ABC, DEF, BE, and CF. Knowing that each...
The frame shown consists of four wooden members, ABC, DEF, BE, and CF. Knowing that each member has a 2 x 4-in. rectangular cross section and that each pin has a {-in. diameter, determine the maximum value of the average normal stress (a) in member BE (b) in member CF 15 in 30 in. B To ISOD 10 PL-15
Example: Determine the forces acting on all members of the frame shown below 4 m 8...
Example: Determine the forces acting on all members of the frame shown below 4 m 8 m 3 kN E 3 m 5 m 4 kN 2 kN 10 m 5 kN.m 3 kN.m A B 10 m
Example: Determine the forces acting on all members of the frame shown below 4 m 8 m 3 kN E 3 m 5 m 4 kN 2 kN 10 m 5 kN.m 3 kN.m A B 10 m
The pin at B and link CD support bar ABC, Bar ABC supports the distributed loading...
The pin at B and link CD support bar ABC, Bar ABC supports the distributed loading shown. (Assume that the x-axis is to the right and the axis is up along the page.) 1.520 lb/ 720 lb TTTIIIII 14 -5- 5-- Determine the reactions at pin B and the force in link CD in pounds. Note that link CD is a two-force member. magnitude direction magnitude direction magnitude sense
The frame at right supports the loading shown. The frame is made of a composite material...
The frame at right supports the loading shown. The frame is made of a composite material has a compressive failure stress, ?tailcom-600 psi and a tensile failure stress, ?alder. 1000 psi. If the required factor of safety is 1.5, what is the required cross sectional area of members AB, CD and BD? B 411
2. Determine the forces in members BC, CD, and DE of the truss shown below by...
2. Determine the forces in members BC, CD, and DE of the truss shown below by the method of sections. State if the members are in tension or compression. 10 kN 15 kN
please neatly and cleanly show all work, reasoning, and free body diagrams. thank you! Problem 03 For the frame sho...
please
neatly and cleanly show all work, reasoning, and free body
diagrams. thank you!
Problem 03 For the frame shown in Figure 03, determine the components of all forces acting on the member ABC. Problem- 04 C 18 kN 2m B E 2 m A O F 3.6 m Figure -03 3*3*3
Problem 03 For the frame shown in Figure 03, determine the components of all forces acting on the member ABC. Problem- 04
C 18 kN 2m B E...
A temporary support steel frame (E 200 GPa) is made of 30-mm diameter solid circular steel rods (members AB and CD), an...
A temporary support steel frame (E 200 GPa) is made of 30-mm diameter solid circular steel rods (members AB and CD), and 22-mm diameter solid circular steel rods (members BC and AD), al pin connected at the turnbuckle corners A, B, C, and D (see Figure below). The steel frame is braced by two cables AC and BD. A turnbuckle is fitted to cable AC and tightening it will induce tension 3m in cable AC. Determine the largest allowable tension...
Q.3) In the frame shown, members AB, BC, CD, DEF and AF are pin-connected and supported by rollens at C, F and a pin support at D. Det ermine all support reactions and forces acting on members DEP and DC 2 3 kN/m 10. 2 m 2 m 2
Q.3) In the frame shown, members AB, BC, CD, DEF and AF are pin-connected and supported by rollens at C, F and a pin support at D. Det ermine all support...
AB length is 4000mm
AD length is 3000mm
A pin jointed frame ABCD is supported by a pinned support at A, a roller at B and is subjected to the loading indicated in Figure Q1. All members have circular cross-section and all are made of steel materials with same cross-section. Determine the support reactions at A and B Determine all the member forces Find out the horizontal displacement at point C using a table template as shown in Table Q1....
PlOBlem 4 (10 points) 2 m 3 m The frame is made up of members ACE, BCD and DE. The frame is pin- 6 m supported at A and roller-supported at B. On member ACE, determine the 2 m magnitudes and directions of forces acting at pins C and E Hint: Begin with overall free body 3 m diagram 600 N 5 m
PlOBlem 4 (10 points) 2 m 3 m The frame is made up of members ACE, BCD...
The frame shown consists of four wooden members, ABC, DEF, BE, and CF. Knowing that each member has a 2 x 4-in. rectangular cross section and that each pin has a {-in. diameter, determine the maximum value of the average normal stress (a) in member BE (b) in member CF 15 in 30 in. B To ISOD 10 PL-15
Example: Determine the forces acting on all members of the frame shown below 4 m 8 m 3 kN E 3 m 5 m 4 kN 2 kN 10 m 5 kN.m 3 kN.m A B 10 m
Example: Determine the forces acting on all members of the frame shown below 4 m 8 m 3 kN E 3 m 5 m 4 kN 2 kN 10 m 5 kN.m 3 kN.m A B 10 m
The pin at B and link CD support bar ABC, Bar ABC supports the distributed loading shown. (Assume that the x-axis is to the right and the axis is up along the page.) 1.520 lb/ 720 lb TTTIIIII 14 -5- 5-- Determine the reactions at pin B and the force in link CD in pounds. Note that link CD is a two-force member. magnitude direction magnitude direction magnitude sense
The frame at right supports the loading shown. The frame is made of a composite material has a compressive failure stress, ?tailcom-600 psi and a tensile failure stress, ?alder. 1000 psi. If the required factor of safety is 1.5, what is the required cross sectional area of members AB, CD and BD? B 411
2. Determine the forces in members BC, CD, and DE of the truss shown below by the method of sections. State if the members are in tension or compression. 10 kN 15 kN
please
neatly and cleanly show all work, reasoning, and free body
diagrams. thank you!
Problem 03 For the frame shown in Figure 03, determine the components of all forces acting on the member ABC. Problem- 04 C 18 kN 2m B E 2 m A O F 3.6 m Figure -03 3*3*3
Problem 03 For the frame shown in Figure 03, determine the components of all forces acting on the member ABC. Problem- 04
C 18 kN 2m B E...
A temporary support steel frame (E 200 GPa) is made of 30-mm diameter solid circular steel rods (members AB and CD), and 22-mm diameter solid circular steel rods (members BC and AD), al pin connected at the turnbuckle corners A, B, C, and D (see Figure below). The steel frame is braced by two cables AC and BD. A turnbuckle is fitted to cable AC and tightening it will induce tension 3m in cable AC. Determine the largest allowable tension...
