1. Briefly explain what the overall purpose of this program is and complete the memory table below which should show what is2. Assuming you have the same data section as in the above, write a pro- gram that adds 1 to each of the five numbers in memo

ANSWER NUMBER 2 PLEASE

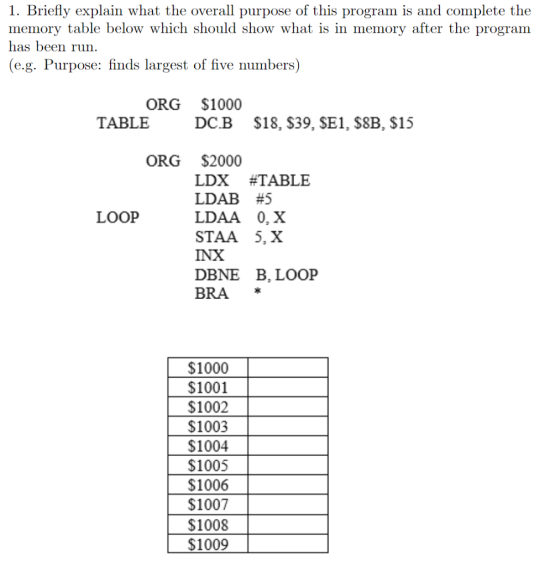

1. Briefly explain what the overall purpose of this program is and complete the memory table below which should show what is in memory after the program has been run. (e.g. Purpose: finds largest of five numbers) $1000 DC.B $18, $39, $E1, $8B, $15 ORG TABLE ORG $2000 LDX #TABLE LDAB #5 LDAA 0, X STAA 5, X LOOP INX DBNE B, LOOP BRA $1000 $1001 $1002 $1003 $1004 $1005 $1006 $1007 $1008 $1009
2. Assuming you have the same data section as in the above, write a pro- gram that adds 1 to each of the five numbers in memory. This must be done using a program loop.
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

ORG $1000

TABLE DC.B $18,$39,$E1,$8B,$15

ORG $2000

LDX #TABLE

LDAB #5

LOOP LDAA 0,X

ADDA #1

STAA 0,X

INX

DBNE B,LOOP

BRA *
