Find the missing resistance R in the given circuit. Assume the current i=2.72 amps. AOK ट-४...

Question

Question

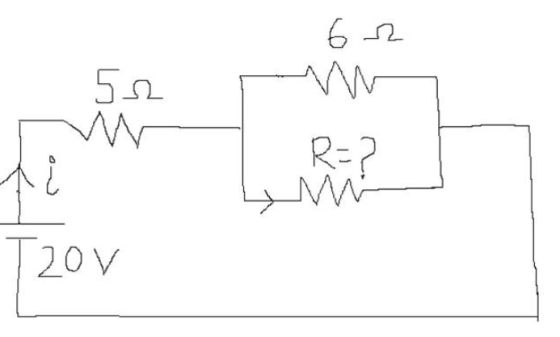

Find the missing resistance R in the given circuit. Assume the current i=2.72 amps.

AOK ट-४ US 19

science physics

Answer 1

Answer #1

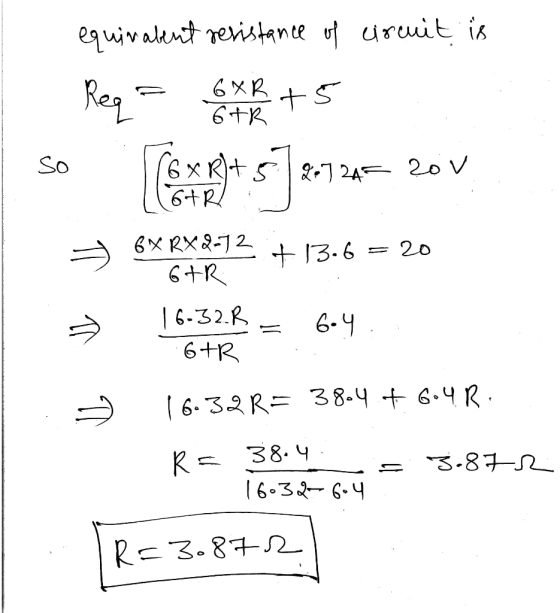

equivalent resistance of circuit is Req - GXR15 so ex P) + 5 72727 201 (6+R/ 6XRX2-12 + 13.6 = 20 6+R = 16-32.B = 64 6+R 16.3

Answer 2

Similar Homework Help Questions

The current in a single-loop circuit containing a single resistance R is 6 amps. When an...

The current in a single-loop circuit containing a single resistance R is 6 amps. When an additional resistance of 12 Ω is inserted in series with R, the current drops to 3 amps. What is R?
Find the voltage v4 in volts in the circuit shown Find the current i in Amps...

Find the voltage v4 in volts in the circuit shown Find the current i in Amps (A) in the circuit shown.. R, 50 Ω R, 50 Ω R,40 Ω R, 40Ω| 90V
a) A given electrical circuit operating on "V" volts with "R" ohms of resistance draws 5.8...

a) A given electrical circuit operating on "V" volts with "R" ohms of resistance draws 5.8 amps of current. How much current will it draw if "V" is multiplied by 2.7? b) How much current will the circuit above draw if it is connected to the original "V" but the resistance is multiplied by 5.0?

Problem 3 (Op Amps) 15 1520 = 50 points R Assume the op-amp is ideal and...

Problem 3 (Op Amps) 15 1520 = 50 points R Assume the op-amp is ideal and a load is modeled as a current source IL. This circuit R allows us to set the voltage across the load as well as monitor its current. Vin, Vo, and R are R R known quantities, but the load characteristics of VL and II are unknown. (a) What is Vi as a function of vin, Vo, and V Vin R? (b) What is Ii...
A circuit with 1000 ohms resistance has current of 2 amps. What's the level of power?

A circuit with 1000 ohms resistance has current of 2 amps. What's the level of power?
9) The power p dissipated in a resistor of resistance R when a current i flows...

9) The power p dissipated in a resistor of resistance R when a current i flows throw it is given by priʻR (see Lab-1). Write a C++ program that reads the resistance R (in ohms) and then outputs p for all i values between 0 and 5, inclusive, in intervals of 0.5 Amps. Use a for loop.

If I is the current in the external resistor R and r is the internal resistance...

If I is the current in the external resistor R and r is the internal resistance of the cell, the equation for the whole circuit is: E = I(R + r) …….(i) For the same current in the external resistor R, the terminal voltage is given by: V = IR …….(ii) Use equations (i) and (ii) to solve for r by eliminating I and write this equation the form: y = mx + b Identify...
Find the uncertainty in a calculated electrical potential difference from the measurements of current and resistance....

Find the uncertainty in a calculated electrical potential difference from the measurements of current and resistance. Electric potential difference depends on current and resistance according to this function V(I,R) = IR. Your measured current and resistance have the following values and uncertainties I = 3.3 Amps, delta I space equals space 0.9 Amps and R = 87.5 Ohms and delta R space equals space 0.8 Ohms. What is the uncertainty in the , delta V
If I is the current in the external resistor R and r is the internal resistance...

If I is the current in the external resistor R and r is the internal resistance of the cell, the equation for the whole circuit is: E = I(R + r) …….(i) For the same current in the external resistor R, the terminal voltage is given by: V = IR …….(ii) Use equations (i) and (ii) to solve for r by eliminating I and write this equation the form: y = mx + b Identify...

An LR circuit includes a resistor of resistance R, an inductor of inductance L and a...

An LR circuit includes a resistor of resistance R, an inductor of inductance L and a battery of emf E = 10 V. At time t = 0 the current in the circuit is I = 0. At time t = 6.1 ms the current is I = 0.66 A. Assume R = 100ohms, find L.
