If you could show all work with explanations that would be great!! Thanks!!

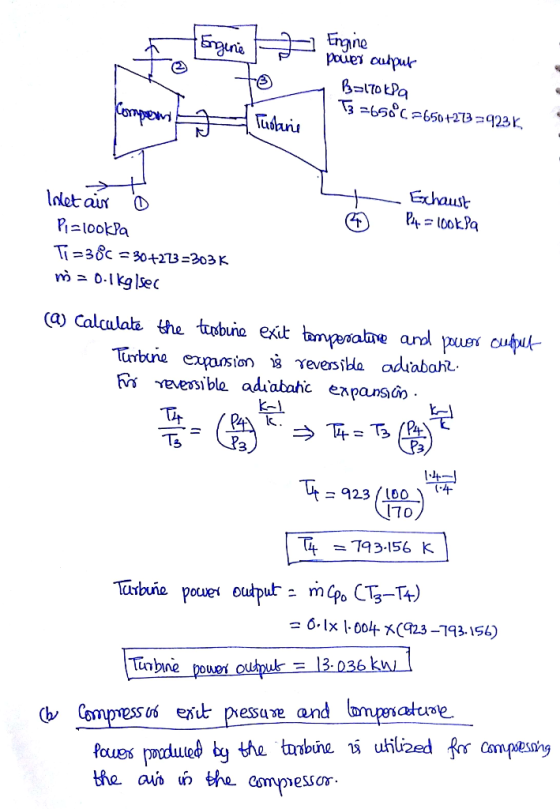

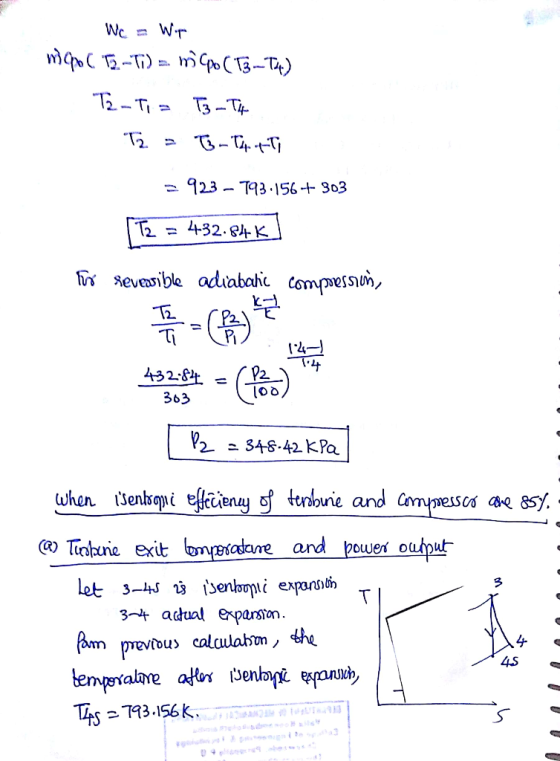

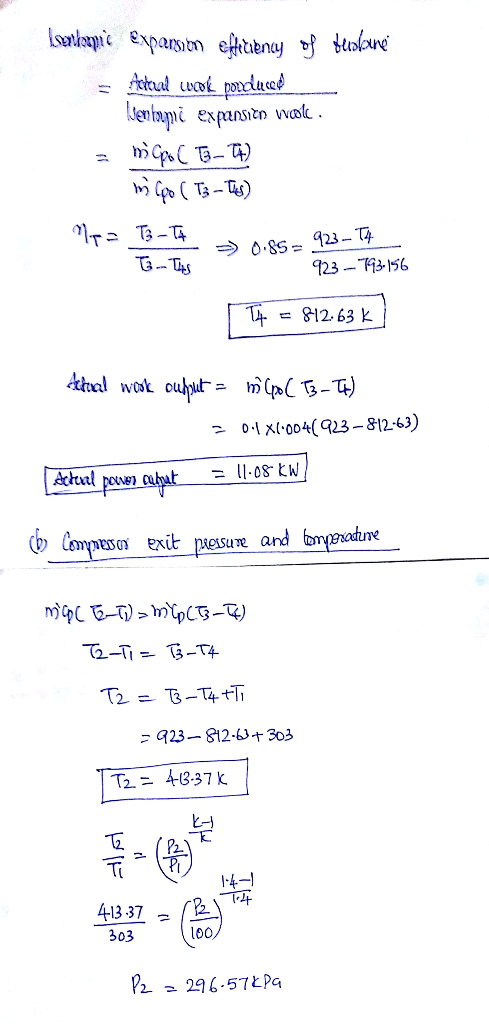

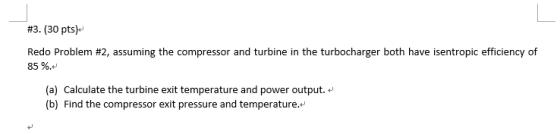

#3. (30 pts) Redo Problem #2, assuming the compressor and turbine in the turbocharger both have isentropic efficiency of 85 %, (a) Calculate the turbine exit temperature and power output (b) Find the compressor exit pressure and temperature.
Homework Answers
