A system has an effective resistance of 1 MOhm. Calculate the shot noise when using three...

A system has an effective resistance of 1 MOhm. Calculate the shot noise when using three different bandwidth oscilloscopes (80 GHz, 200 MHz, and 50 MHz), assuming that the different scopes do not alter the effective resistance.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

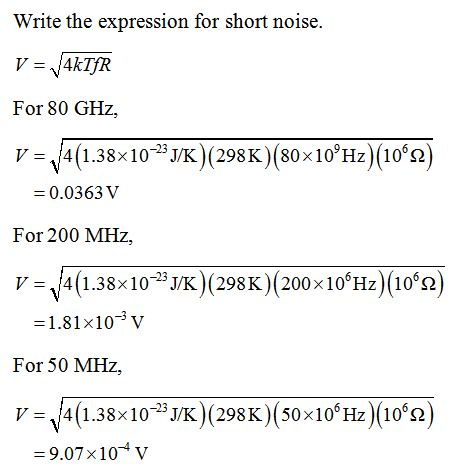

Write the expression for short noise. V 4kTFR For 80 GHz, V4(1.38x103 (298K)(80x10Hz) (102) 0.0363 V For 200 MHz, v= 14(1.38×10-23 JK)(298K)(200x10°Hz)(106Ω) 1.81x10V For 50 MHz, V=114(1.38x10-23 J/K)(298 K)(50x106 Hz)(106Ω) 9.07x104 v
