Design a digital temperature meter using one temperature sensor

Answer 1

Temperature Indicator

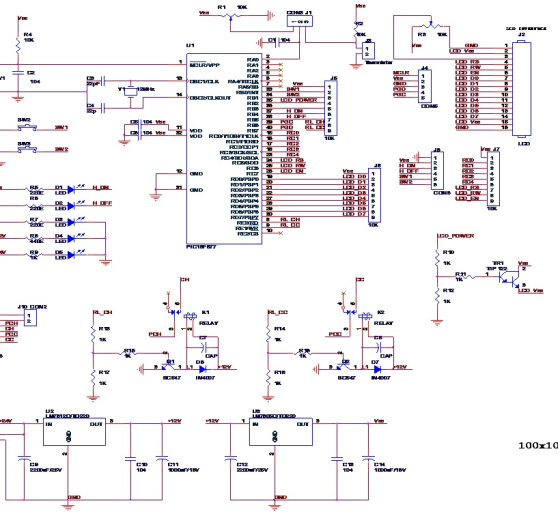

In the preented circuit diagram, Thermister is used to measure the temperature, Thje thermister is connected at connector (J3).

A LCD is also connected to show the temperature on LCD.

The design is around PIC16F877A microcontroller. This design also controls the heating and cooling using the two relays as Relay-1 and Relay-2.

The working code for the same is given below:

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

#define SET_POINT_WINTER_LOW_L   0x00

#define SET_POINT_WINTER_LOW_H   0x01

#define SET_POINT_WINTER_HIGH_L 0x02

#define SET_POINT_WINTER_HIGH_H 0x03

#define SET_POINT_SUMMER_LOW_L   0x04

#define SET_POINT_SUMMER_LOW_H   0x05

#define SET_POINT_SUMMER_HIGH_L 0x06

#define SET_POINT_SUMMER_HIGH_H 0x07

#define ADDRESS_SEASON           0x08

#define WINTER                 0

#define SUMMER                 1

#define DISPLAY_FREQ           25000

#define FLIP_DISP_FREQ         1000

#define BOUNCE_DELAY           200

#define LED_ON                 0

#define LED_OFF                1

#define EEPROM_DELAY           200

/* Time delay for LCD On time*/

#define LCD_ON_TIME            40

unsigned char SetPoint_Winter_Low_L=0,SetPoint_Winter_Low_H=0;

unsigned char SetPoint_Winter_High_L=0,SetPoint_Winter_High_H=0;

unsigned char SetPoint_Summer_Low_L=0,SetPoint_Summer_Low_H=0;

unsigned char SetPoint_Summer_High_L=0,SetPoint_Summer_High_H=0;

unsigned char Season=WINTER;

unsigned int CurrentTemp,SetPoint_High,SetPoint_Low;

unsigned int ADCVal=0;

unsigned int DisplayCount=0;

//sbit RL_CH_TEMP at RE0_bit;

//sbit RL_CH_TEMP_Direction at TRISE0_bit;

//sbit RL_CC at RA5_bit;

sbit RL_CH at RA5_bit;      //Heatin Relay

sbit RL_CH_Direction at TRISA5_bit;

sbit RL_CC at RE0_bit;     //Cooling Relay

sbit RL_CC_Direction at TRISE0_bit;

// Lcd pinout settings

sbit LCD_RS at RC5_bit;

//sbit LCD_CHECK at RD2_bit;

sbit LCD_EN at RC7_bit;

sbit LCD_D7 at RD7_bit;

sbit LCD_D6 at RD6_bit;

sbit LCD_D5 at RD5_bit;

sbit LCD_D4 at RD4_bit;

sbit LED_H at RB4_bit;

sbit LED_C at RB5_bit;

sbit LED_H_Direction at TRISB4_bit;

sbit LED_C_Direction at TRISB5_bit;

sbit SW_1 at RB0_bit;

sbit SW_2 at RB1_bit;

// Pin direction

sbit LCD_POWER at RB2_bit;

sbit LCD_POWER_Direction at TRISB2_bit;

sbit LCD_RS_Direction at TRISC5_bit;

//sbit LCD_CHECK_Direction at TRISD2_bit;

sbit LCD_EN_Direction at TRISC7_bit;

sbit LCD_D7_Direction at TRISD7_bit;

sbit LCD_D6_Direction at TRISD6_bit;

sbit LCD_D5_Direction at TRISD5_bit;

sbit LCD_D4_Direction at TRISD4_bit;

void DisplayWinterSetPoints(void);

void DisplaySummerSetPoints(void);

void FaultCondition(void);

void EditSeason(void);

const code unsigned int Res_1[] = {

28160,

26920,

25760,

24650,

23600,

22600,

20740,

19870,

19050,

18270,

17510,

16800,

16120,

15470,

14850,

14260,

13700,

13160,

12640,

12160,

11680,

11230,

10800,

10390,

10000,

9624 ,

9265 ,

8921 ,

8591 ,

8276 ,

7973 ,

7684 ,

7406 ,

7140 ,

6885 ,

6641 ,

6406 ,

6181 ,

5965 ,

5758 ,

5559 ,

5368 ,

5185 ,

5008 ,

4839 ,

4676 ,

4520 ,

4370 ,

4225 ,

4086 ,

3953 ,

3824 ,

3700 ,

3581 ,

3467 ,

3356 ,

3250 ,

3147 ,

3049 ,

2954 ,

2862 ,

2774 ,

2689 ,

2607 ,

2528 ,

2451 ,

2378 ,

2306 ,

2238 ,

2172 ,

2108 ,

2046 ,

1986 ,

1929 ,

1873 ,

1820 ,

1768 ,

1717 ,

1669 ,

1622 ,

1577 ,

1533 ,

1490 ,

1449 ,

1410 ,

1371 ,

1334 ,

1298 ,

1263 ,

1229 ,

1197 ,

1165 ,

1134 ,

1105 ,

1076 ,

1048 ,

1021 ,

995 ,

969 ,

945 ,

};

unsigned char EditSetPoints(unsigned char EditData)

{

unsigned char FlagEdit=1,tempEditData;

tempEditData = EditData;

while(FlagEdit)

{

Lcd_Chr(2,8,0x30+(EditData/10));

Lcd_Chr(2,9,0x30+(EditData%10));

if(SW_1==0) {Delay_ms(BOUNCE_DELAY);tempEditData=tempEditData+1;if(tempEditData>50) tempEditData=0;}

if(SW_2==0) FlagEdit=0;

}

return(tempEditData);

}

void FaultCondition(void)

{

    Lcd_Out(1,1,"      FAULT     ");

    Lcd_Out(2,1,"   SENSOR OPEN ");

    RL_CH=0;

    RL_CC=0;

    LED_H=~LED_H;

    LED_C = LED_OFF;

    Delay_ms(500);

}

void EditSeason(void)

{

if(Season==WINTER) Season = SUMMER;

else               Season = WINTER;

                     Lcd_Out(1,1,"SEASON CHANGED..");

if(Season==WINTER) Lcd_Out(2,1,"NOW -> WINTER   ");

if(Season==SUMMER) Lcd_Out(2,1,"NOW -> SUMMER   ");

while(SW_1==0){} Delay_ms(500);

}

void MakeLCDOff(void)

{

Lcd_Cmd(_LCD_CLEAR);               // Clear display

LCD_POWER=0;

}

unsigned int LCDDisplayCount=0;

void MakeLCDON(void)

{

LCD_POWER=1;

LCDDisplayCount=0;

Lcd_Init();

Lcd_Cmd(_LCD_CLEAR);               // Clear display

Lcd_Cmd(_LCD_CURSOR_OFF);          // Cursor off

}

void main(void)

{

unsigned int TempChar,FinalTemperature,TResistance,Tempt=0,FlipDispCount=0;

unsigned char Flag=1,dCnt,EditCount=0,Flip=1,Error=0,FlagUp=0,FlagDown=0,H=0,C=0,FlagIO=0,y_1=0,y_2=0;

unsigned long CountEditSeason=0,DisplayONCount=0;

unsigned char FlagDisplaySetPoints=1,FlagSeason=WINTER,FlagH=0,FlagC=0,FlipDisplay=1,FirstTimeFlag=1;

unsigned long Temp,Qt,Rem,Tr;

signed char TempDir=1,TempPrev=0,TempCurrent=0;

TRISE = 0x00;

TRISD=0x00;

TRISC=0x00;

TRISB = 0x03;

TRISA = 0x0F;

ADC_Init();

LCD_POWER=1;

Lcd_Init();

Lcd_Cmd(_LCD_CLEAR);               // Clear display

Lcd_Cmd(_LCD_CURSOR_OFF);          // Cursor off

RL_CH=0; RL_CC=0; //Both Relay OFF

DisplayCount=DISPLAY_FREQ;

SetPoint_Winter_Low_L = 17;// = EEPROM_Read(SET_POINT_WINTER_LOW); Delay_ms(EEPROM_DELAY);

SetPoint_Winter_Low_H = 19;//High = EEPROM_Read(SET_POINT_WINTER_HIGH); Delay_ms(EEPROM_DELAY);

SetPoint_Winter_High_L = 21;// = EEPROM_Read(SET_POINT_WINTER_LOW); Delay_ms(EEPROM_DELAY);

SetPoint_Winter_High_H = 23;//High = EEPROM_Read(SET_POINT_WINTER_HIGH); Delay_ms(EEPROM_DELAY);

SetPoint_Summer_Low_L = 19;// = EEPROM_Read(SET_POINT_WINTER_LOW); Delay_ms(EEPROM_DELAY);

SetPoint_Summer_Low_H = 21;//High = EEPROM_Read(SET_POINT_WINTER_HIGH); Delay_ms(EEPROM_DELAY);

SetPoint_Summer_High_L = 23;// = EEPROM_Read(SET_POINT_WINTER_LOW); Delay_ms(EEPROM_DELAY);

SetPoint_Summer_High_H = 25;//High = EEPROM_Read(SET_POINT_WINTER_HIGH); Delay_ms(EEPROM_DELAY);

Season = EEPROM_Read(ADDRESS_SEASON);                      Delay_ms(EEPROM_DELAY);

if(Season!=WINTER && Season!=SUMMER) {Season = WINTER;}

// Season = WINTER;

while(1)

{

if(DisplayCount>=DISPLAY_FREQ)

{

   TempPrev = TempCurrent;

   if(LCDDisplayCount < LCD_ON_TIME) LCDDisplayCount++;

   if(LCDDisplayCount >= LCD_ON_TIME) MakeLCDOff();//LCD_POWER=0;

   FlipDispCount++;

   if(FlipDispCount >= FLIP_DISP_FREQ) {FlipDisplay=1-FlipDisplay; FlipDispCount=0;}

   DisplayCount=0;

   Flag=1;

   Temp = ADC_Read(0);

   if(Temp < 950)

   {

    LED_H = LED_OFF;

    Error=0;

    Qt = ((Temp *10)/(1024 - Temp))*1000;

    Rem = (Temp *10)%(1024 - Temp);

    Tr = Qt + Rem;

    if(FlipDisplay)

    {

     if(Season==SUMMER) {Lcd_Out(1,1,"SUMMER (HIGH)");}

     else               {Lcd_Out(1,1,"WINTER (LOW) ");}

     Lcd_Out(2,1,"COACH TEMP=    C");

     y_1=2;

    }

    else

    {

     Lcd_Out(1,1,"COACH TEMP=    C");

     y_1=1;

    }

    for(dCnt=0;(dCnt < 99 && Flag==1);dCnt=dCnt+1)

    {

     if(Flag==1 && Tr > Res_1[dCnt+1] && Tr <= Res_1[dCnt])

     {

      Flag=0;

      FinalTemperature = dCnt+1;

     }

    }

    if(TempDir!=0)

    {

     Lcd_Chr(y_1,15,0xDF);

     TempChar = 0x30 + (FinalTemperature/10); Lcd_Chr(y_1,13,TempChar);

     TempChar = 0x30 + (FinalTemperature%10); Lcd_Chr(y_1,14,TempChar);

    }



//    TempChar = 0x30 + (LCDDisplayCount/10); Lcd_Chr(1,15,TempChar);

//    TempChar = 0x30 + (LCDDisplayCount%10); Lcd_Chr(1,16,TempChar);

    TempCurrent = FinalTemperature;

    TempDir = TempCurrent - TempPrev;

   }

   else

   {

    MakeLCDON();

    FaultCondition();

    Error=1;

    LED_H=LED_OFF;

    Lcd_Cmd(_LCD_CLEAR);               // Clear display

    Lcd_Cmd(_LCD_CURSOR_OFF);          // Cursor off

   }

}

DisplayCount++;

if(Error==0)

{

if(Season==WINTER)

{

   if(FinalTemperature >= 23                                         )   C=1;

   if(FinalTemperature > 21 && FinalTemperature < 23 && TempDir < 0)   C=1;

   if(FinalTemperature <= 21                           && TempDir < 0)   C=0;

   if(FinalTemperature > 21 && FinalTemperature < 23 && TempDir > 0)   C=0;

   if(FinalTemperature <= 17                                         )   H=1;

   if(FinalTemperature > 17 && FinalTemperature < 19 && TempDir > 0)   H=1;

   if(FinalTemperature >= 19                                         )   H=0;

   if(FinalTemperature > 17 && FinalTemperature < 19 && TempDir < 0)   H=0;

   if(H) {RL_CH=1; RL_CC=0;}

   if(C) {RL_CH=0; RL_CC=1;}

   if(H==0 && C==0) {RL_CH=0; RL_CC=0;}

}

if(Season==SUMMER)

{

   if(FinalTemperature >= 25                                         )   C=1;

   if(FinalTemperature > 23 && FinalTemperature < 25 && TempDir < 0)   C=1;

   if(FinalTemperature <= 23                                         )   C=0;

   if(FinalTemperature <= 19                                         )   H=1;

   if(FinalTemperature > 19 && FinalTemperature < 21 && TempDir > 0)   H=1;

   if(FinalTemperature >= 21                                         )   H=0;

   if(FinalTemperature > 19 && FinalTemperature < 21 && TempDir < 0)   H=0;

   if(H) {RL_CH=1; RL_CC=0;}

   if(C) {RL_CH=0; RL_CC=1;}

   if(H==0 && C==0) {RL_CH=0; RL_CC=0;}

}

if(!FlipDisplay)

{

   if(H==1 && C==0) Lcd_Out(2,1,"Htr-ON   AC-OFF");

   if(H==0 && C==1) Lcd_Out(2,1,"Htr-OFF   AC-ON");

   if(H==0 && C==0) Lcd_Out(2,1,"Htr-OFF AC-OFF");

}

if(SW_1==0)

{

   MakeLCDON();

   FlagDisplaySetPoints=1;

   Delay_ms(BOUNCE_DELAY);

   Flip=1-Flip;

   Lcd_Cmd(_LCD_CLEAR);               // Clear display

   Lcd_Cmd(_LCD_CURSOR_OFF);          // Cursor off

   if(Flip==1)    DisplayWinterSetPoints();

   if(Flip==0)    DisplaySummerSetPoints();

   while(FlagDisplaySetPoints)

   {

   CountEditSeason=0;

   if(SW_1==0)

     {

      Delay_ms(BOUNCE_DELAY);

      while(SW_1==0)

      {

       CountEditSeason++;

       if(CountEditSeason>100000)

       {

        EditSeason();

        EEPROM_Write(ADDRESS_SEASON,Season); Delay_ms(EEPROM_DELAY);

       }

      }

      FlagDisplaySetPoints=0;

     }

     else

     {

     Delay_ms(1500);   FlagDisplaySetPoints=0;

     }

   }

   Lcd_Cmd(_LCD_CLEAR);               // Clear display

   Lcd_Cmd(_LCD_CURSOR_OFF);          // Cursor off

   DisplayCount=DISPLAY_FREQ;

}

/*

if(SW_2==0)

{

   Delay_ms(BOUNCE_DELAY);

   if(EditCount==0)

   {

    SetPoint_Winter_Low_L = EditSetPoints(SetPoint_Winter_Low_L);

    EEPROM_Write(SET_POINT_WINTER_LOW_L,SetPoint_Winter_Low_L); Delay_ms(EEPROM_DELAY);

   }

   if(EditCount==1)

   {

    SetPoint_Winter_Low_H = EditSetPoints(SetPoint_Winter_Low_H);

    EEPROM_Write(SET_POINT_WINTER_LOW_H,SetPoint_Winter_Low_H); Delay_ms(EEPROM_DELAY);

   }

   if(EditCount==2)

   {

    SetPoint_Winter_High_L = EditSetPoints(SetPoint_Winter_High_L);

    EEPROM_Write(SET_POINT_WINTER_HIGH_L,SetPoint_Winter_High_L); Delay_ms(EEPROM_DELAY);

   }

   if(EditCount==3)

   {

    SetPoint_Winter_High_H = EditSetPoints(SetPoint_Winter_High_H);

    EEPROM_Write(SET_POINT_WINTER_HIGH_H,SetPoint_Winter_High_H); Delay_ms(EEPROM_DELAY);

   }

   if(EditCount==4)

   {

    SetPoint_Summer_Low_L = EditSetPoints(SetPoint_Summer_Low_L);

  EEPROM_Write(SET_POINT_SUMMER_LOW_L,SetPoint_Summer_Low_L); Delay_ms(EEPROM_DELAY);

   }

   if(EditCount==5)

   {

    SetPoint_Summer_Low_H = EditSetPoints(SetPoint_Summer_Low_H);

    EEPROM_Write(SET_POINT_SUMMER_LOW_H,SetPoint_Summer_Low_H); Delay_ms(EEPROM_DELAY);

   }

   if(EditCount==6)

   {

    SetPoint_Summer_High_L = EditSetPoints(SetPoint_Summer_High_L);

    EEPROM_Write(SET_POINT_SUMMER_HIGH_L,SetPoint_Summer_High_L); Delay_ms(EEPROM_DELAY);

   }

   if(EditCount==7)

   {

    SetPoint_Summer_High_H = EditSetPoints(SetPoint_Summer_High_H);

    EEPROM_Write(SET_POINT_SUMMER_HIGH_H,SetPoint_Summer_High_H); Delay_ms(EEPROM_DELAY);

   }

   EditCount=EditCount+1;

   if(EditCount>7) EditCount=0;

   DisplayCount=DISPLAY_FREQ;

}

*/

}

}

}

void DisplayWinterSetPoints(void)

{

    Lcd_Out(1,1,"WINTER:");

    Lcd_Chr(1,9, 0x30+(SetPoint_Winter_Low_L/10));

    Lcd_Chr(1,10,0x30+(SetPoint_Winter_Low_L%10));

    Lcd_Chr(1,14,0x30+(SetPoint_Winter_Low_H/10));

    Lcd_Chr(1,15,0x30+(SetPoint_Winter_Low_H%10));

    Lcd_Chr(2,9, 0x30+(SetPoint_Winter_High_L/10));

    Lcd_Chr(2,10,0x30+(SetPoint_Winter_High_L%10));

    Lcd_Chr(2,14,0x30+(SetPoint_Winter_High_H/10));

    Lcd_Chr(2,15,0x30+(SetPoint_Winter_High_H%10));

}

void DisplaySummerSetPoints(void)

{

    Lcd_Out(1,1,"SUMMER:");

    Lcd_Chr(1,9, 0x30+(SetPoint_Summer_Low_L/10));

    Lcd_Chr(1,10,0x30+(SetPoint_Summer_Low_L%10));

    Lcd_Chr(1,14,0x30+(SetPoint_Summer_Low_H/10));

    Lcd_Chr(1,15,0x30+(SetPoint_Summer_Low_H%10));

    Lcd_Chr(2,9, 0x30+(SetPoint_Summer_High_L/10));

    Lcd_Chr(2,10,0x30+(SetPoint_Summer_High_L%10));

    Lcd_Chr(2,14,0x30+(SetPoint_Summer_High_H/10));

    Lcd_Chr(2,15,0x30+(SetPoint_Summer_High_H%10));

}

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

R1 LED CTANCE R4 R3 10K GHD TD YEE UT RAD LCD RD LD RW MCLRAVp RAI 4 RA2 MCLR RAB LED DD DBCVLK 104 RATCLK GHD PGD PaC ICn n1 LD D2 .. REDINT RBT 14 1D 11 DB2ELIHUT LD D4 LD DE LD DR LD DT LD YE GHD . LCD POER 12 RE. RB4 RE5 RE. RET RETIBNTELK RCVTTH FEETCPT FCEBCKICL FEEDIADA REEA H DM H DFF PaC PaD FCD 13 14 RL CH RL 1D4 Man 15 11 16 2 KDD TOK FTT1 r FE4 H MM H DEE . FC1 LCD EN YER LCD DD LCD D1 LCD D2 CND H D RE 81 GND LED LED RW LCD D3 LED D4 LCD DE COND FTMRM ETFEUP D2 H DFF LED LCD DE LD DT R CH LED FE RE D4 LA LED LCD POMER PICTFET DE LA RP RD 1K TRI TIP T2 R1 CH 1K RL CC K1 PCH RELAY REA CH PCC RT R14 PCH PEC 1K CAP CAP M2Y 11 1 RTT IMMDT NDOT BCAT BCE 1K U2 IKE2OZ2D 12Y IN 100x10 CD C11 CD C4 220FREM 1DDFA 104 104
