11.5 A temperature sensor is connected to a 16F873A ADC input. The sensor has an output...

11.5 A temperature sensor is connected to a 16F873A ADC input. The sensor has an output of 40 mV/?C. The ADC operates with a 4.096 V reference. (a) For a certain temperature value, the ADC output reads 1010011100. What is the equivalent temperature for this reading? (b) The measured temperature is to be displayed on a digital display, showing values in the range 00.0?C to 99.9?C. Describe what data manipulation steps can be taken to achieve this, using fixed-point arithmetic only.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

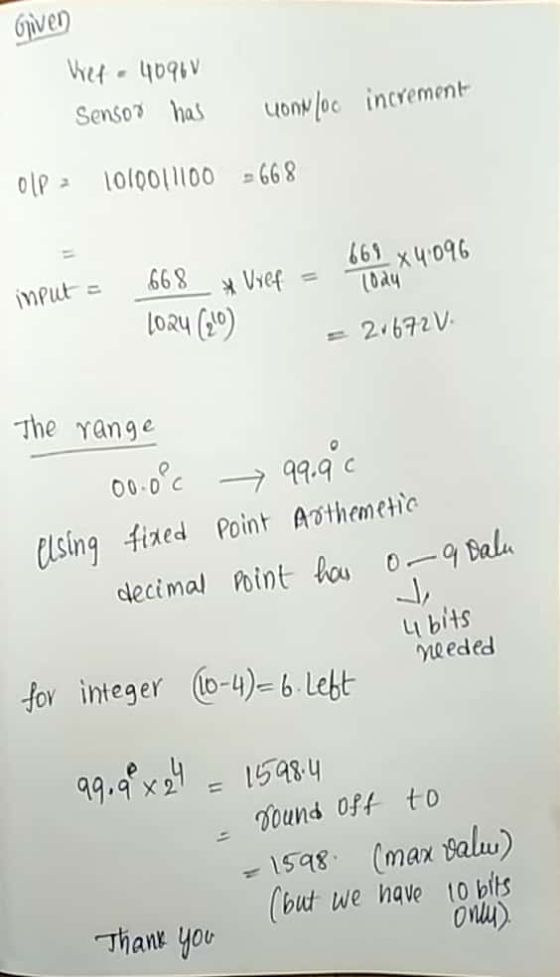

Answer #1

0 0
