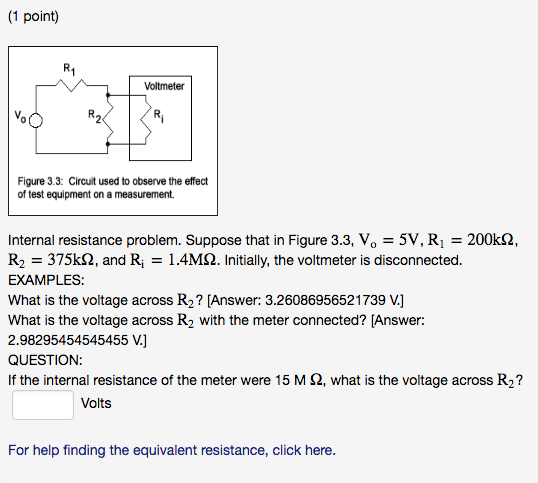

(1 point) Voltmeter Vo Figure 3.3: Circuit used to observe the effect of test equipment on...
Please show full work of the following, thanks
Voltmeter Vo 0 Figure 3.3: Circuit used to observe the effect of test equipment on a measurement. Internal resistance problem. Suppose that in Figure 3.3, Vo-13V, Ri 250kS2, R2 -375k2, and R1.3MS2. Initially, the voltmeter is disconnected. EXAMPLES: What is the voltage across R2? [Answer: 7.8 V] What is the voltage across R2 with the meter connected? [Answer: 6.99310344827586 V.] QUESTION: If the internal resistance of the meter were 13 M Ω,...
Internal resistance problem. Suppose that in Figure 3.3,
Vo=10VVo=10V, R1=175kΩR1=175kΩ, R2=400kΩR2=400kΩ, and Ri=1MΩRi=1MΩ.
Initially, the voltmeter is disconnected.
EXAMPLES:
What is the voltage across R2R2? [Answer: 6.95652173913043
V.]
What is the voltage across R2R2 with the meter connected? [Answer:
6.2015503875969 V.]
QUESTION:
If the internal resistance of the meter were 14 M ΩΩ, what is the
voltage across R2R2?
Thanks ahead
Voltmeter Figure 3.3: Circuit used to observe the effect of test equipment on a measurement.
Internal resistance problem. Suppose that in Figure 3.3, Vo=13V,
R1=150kΩ, R2=375kΩ, and Ri=2MΩ. Initially, the voltmeter is
disconnected.
If the internal resistance of the meter were 12 M Ω, what is the
voltage across R2?
Volts:
