option D HAS THE CORRECT MULTIMETER DIAL SETTING IT IS POINTED TO THE OHM SYMBOL INDICATING RESISTANCE .

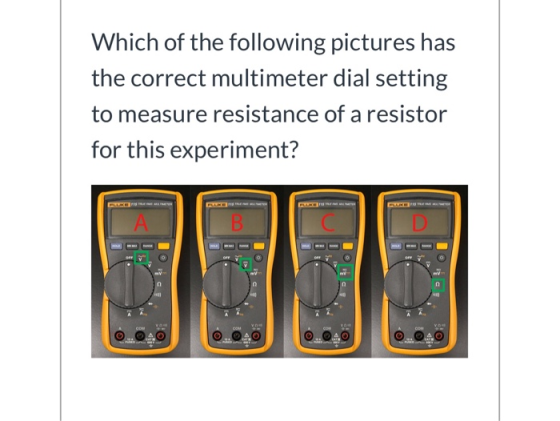

Which of the following pictures has the correct multimeter dial setting to measure resistance of a...
