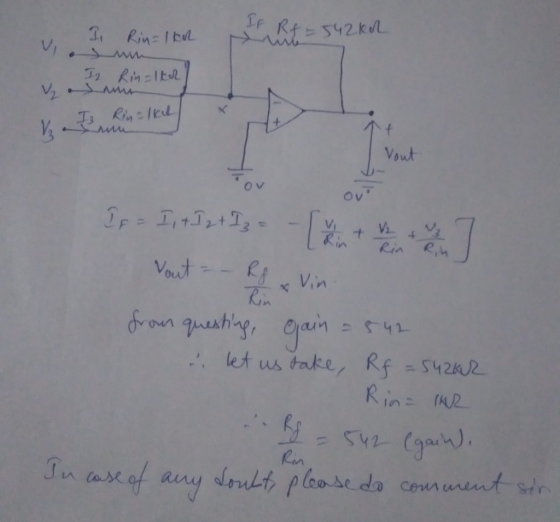

Draw a circuit diagram that adds 3 separate input signals and then amplifies the added signal by a factor of 572. Please show all work.
Draw a circuit diagram that adds 3 separate input signals and then amplifies the added signal...
Draw a circuit diagram that adds 4 separate input signals and then amplifies the added signal by a factor of 135. Please show all work.
s. Label signals and draw the signal-low graph for the block diagram shown in Figure 2. Cun Figure 2
Draw a diagram with a sinusoid of 10Hz. Assuming this sinusoid is the input to a linear system with magnitude response of -6dB and phase delay of pi/4 at 10Hz. Draw now in the same diagram the output of the linear system. Your diagram should show the input and output signals with time on the horizontal and magnitude on the vertical axes. Label all axes including units and tick-marks.
(20 points) Give a detail design of pressure measurement system by using strain gage as a sensor. The output signal is voltage 1) Draw circuit diagram/and sensing element with strain gauge. 2) Draw a block diagram and name a part on each block. 3) Give the sensitivity of each block 4) Give an equation to show the relationship of input pressure and output 2. voltage
(20 points) Give a detail design of pressure measurement system by using strain gage as...
3. Sketch stuff (by hand or by computer) 3.1 Systems signals The signal x()-sin^t), for 0stsl; is applied to a circuit with an impulse response given by h(t)-2, for Osts1. Sketch these signals and the output of the circuit If the input signal is now set to x()-6(t-3), sketch the input and output signals. (3.2)
input frequency is 125 ms
period TC is 125 ms
3. The circuit diagram below shows 74LS74 flip-flop connected in toggle mode. Determine the frequency (fout) of the signal at output Q, if the input clock period Tc has the specified value. Show your work. +5V U1A 1 R 5 2 D 74LS74 3 U 4 5 la 6
3. Block diagram consist of functions performed by each component of a system and flow of signals meanwhile, signal flow graph consists of branches which represents the systems and nodes which represents the signals For the block diagram shown in Figure 5, determine the relationship between the output variable C(s) and the input variable R(s) by analyzing the system's variables. (a) (12 marks) Gil GloC V(s) Figure 5 (b) Consider a simple first-order system G(s). Find the time constant and...
3. Sketch solutions (a) The signal x(t)-sint), for 0sts1; is applied to a circuit with an impulse response given by ht)-2, for 0sts1. Sketch these signals and the output of the circuit (b)If the input signal is now set to x(t)-6(t-3), sketch the input and output signals.
please draw the circuit diagram! thank you
Part A (Draw the circuit diagram. Label all known and unknown quantities. Show all your work clearly on the scratch paper.) A 3.0-0 resistor is connected in parallel with a 6.0-0 resistor. This combination is then connected in series with a 4.0-9 resistor. The resistors are connected across an ideal 12-volt battery. How much power is dissipated in the 3.0-9 resistor? 6.0 W O 5.3 W O 2.7 W O 12 W Submit...
1. Given the following AM rectifier detector circuit and its input and output signals: a t m()] cos RIr) LA + m(o) ? m(1) Low-pass A + m()) cos m(t) a. [40 points] Find Va(t), the modulated input signal into the low-pass filter. b. [10 points] Show that (1/T)m(t) is the signal across the output resistor R.
